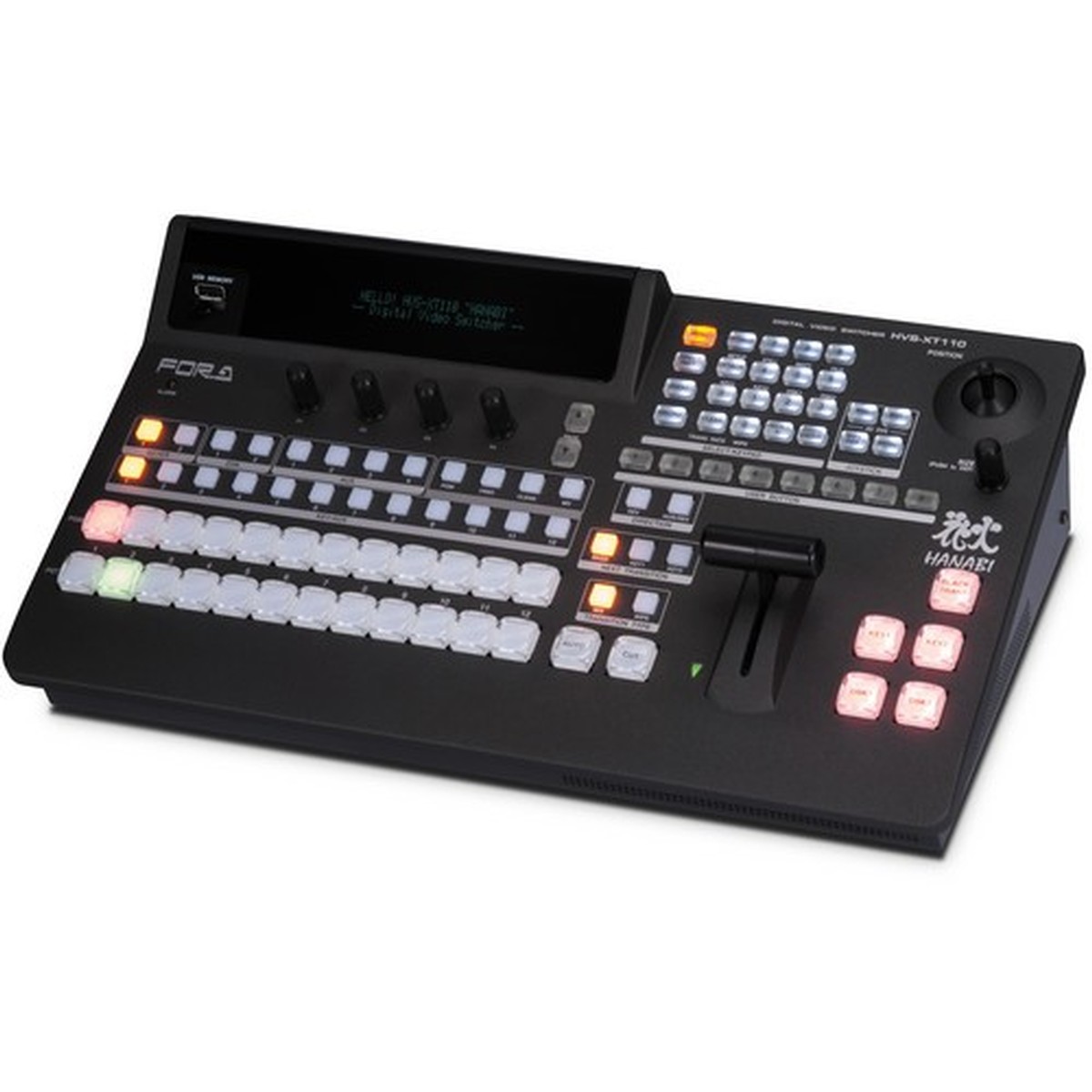

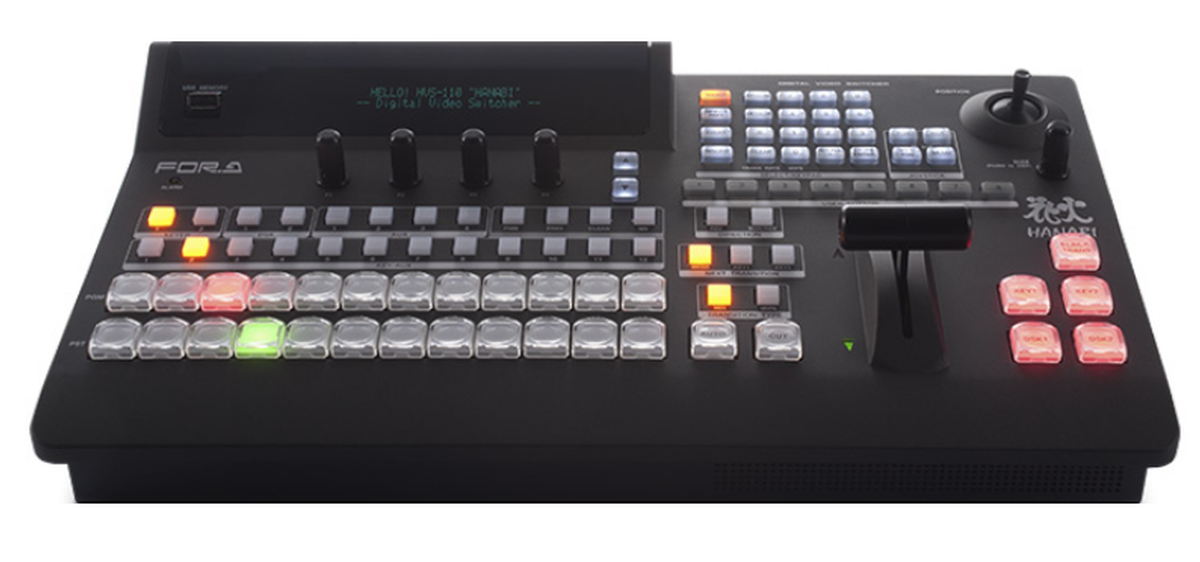

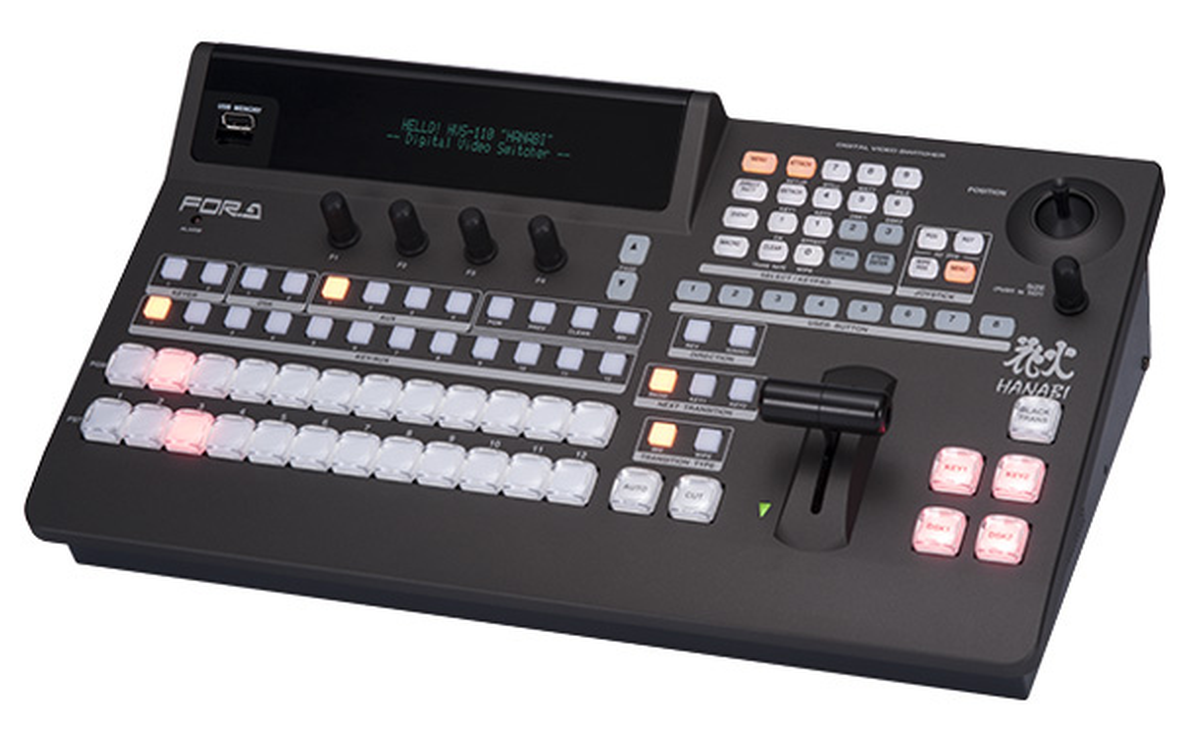

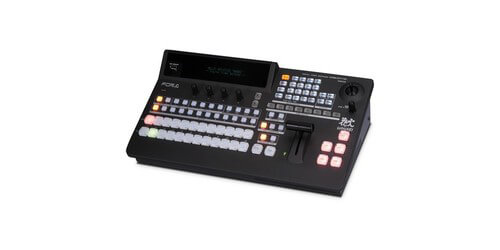

FOR-A HVS-110
HD/SD Portable Video Switcher with Integrated Control Panel
- External keyer control over DSK-400
- HVS-100PCO option supports 1080/29.97p, 25p, 24p, 23.98p. Also PC-resolution output supports at 1080/59.94p and 50p formats
- HVS-100PCI option supports 1080/29.97p, 25p, 24p, 23.98p

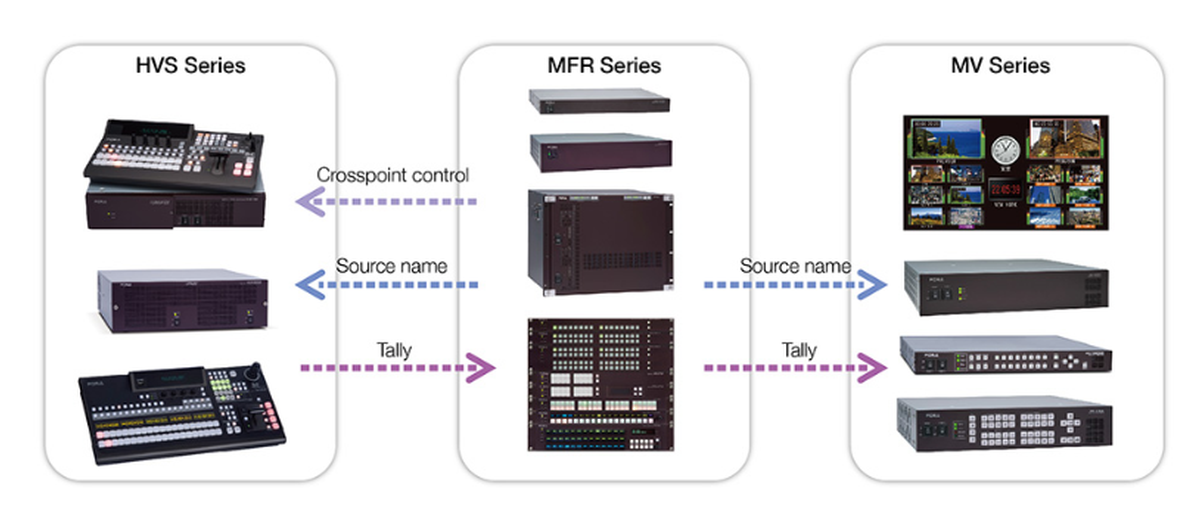

- VDCP Over IP protocol available
Description

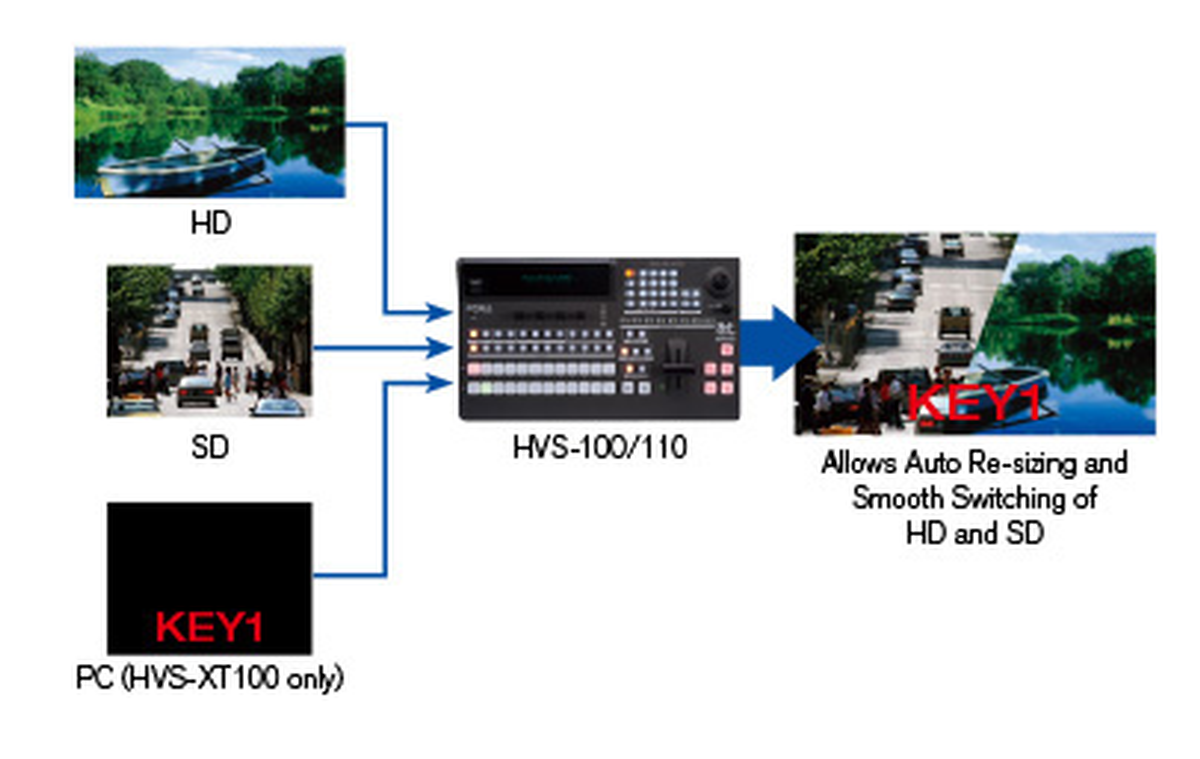

Featuring the HVS-110 HD/SD Portable Video Switcher with integrated control unit from FOR-A. This quality made unit provides superior functions and features that inlcude mixed SD/HD input, frame synchronizing, re-sizing engine, 2.5D wipe effects, DVE, keyer with chroma key, and DSK. The switcher also includes a built-in Web server that lets you change settings from a PC or tablet. For further functionality there is a built-in clip memory feature that has been added the still store to support complex performances like CG wipes, with an included multi-viewer function that can handle a broad range of monitoring needs. By combining the main switcher unit with a control panel, FOR-A has given broadcast users a highly functioning, easy to transport Broadcast control unit. Furthermore this unit offers more than enough video input and output functionality (12 in, 6+1 Out) to make the device suitable for a variety of uses, to include: live events, sports, news studio, OB vans, helicopters, editorial offices, and presentation venues.
Specifications
- Multi Viewer split patterns significantly enhanced, from 8 to 20 types
- Non-Border display function support and 4K mode layout on Multi Viewer
- Audio playback support
- Level-B signal input support at 1080/59.94p, 50p

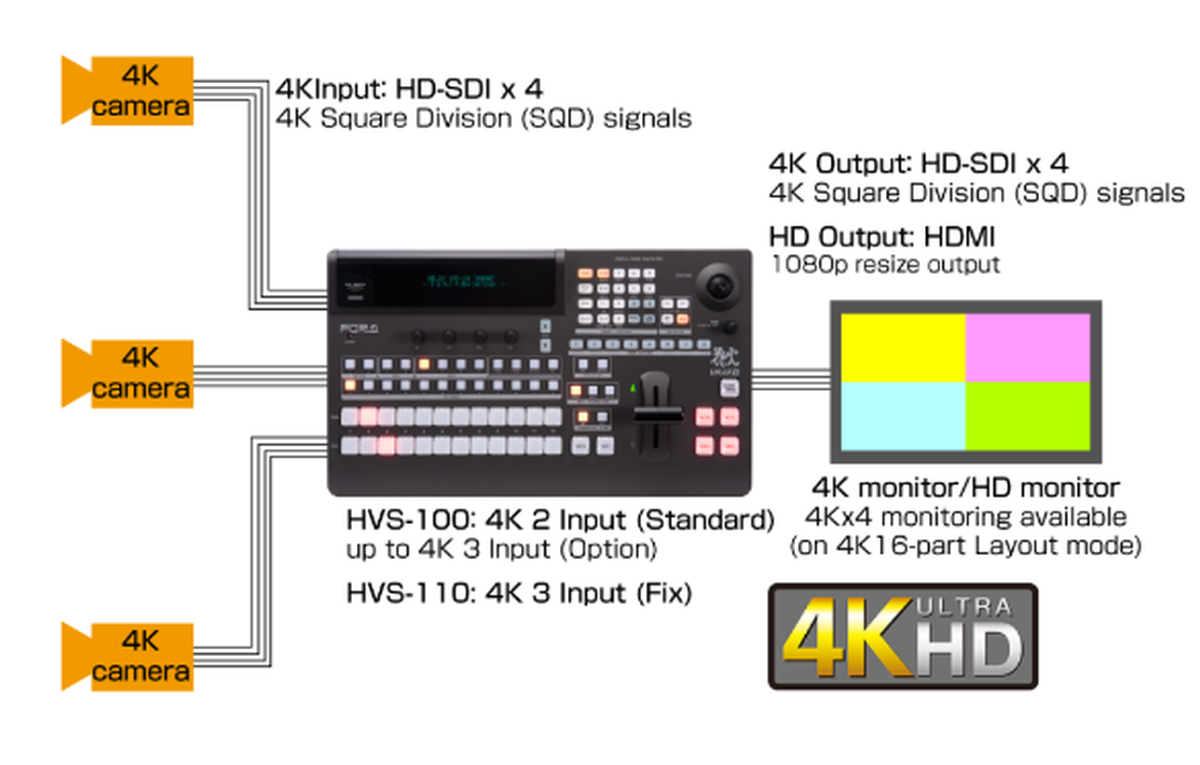

- Progressive-format, 4K Square Division (SQD) signal support
