FOR-A HVS-2000 Type A
Hanabi 6 M/E Switcher w/ 24 Button Control Panel

Description

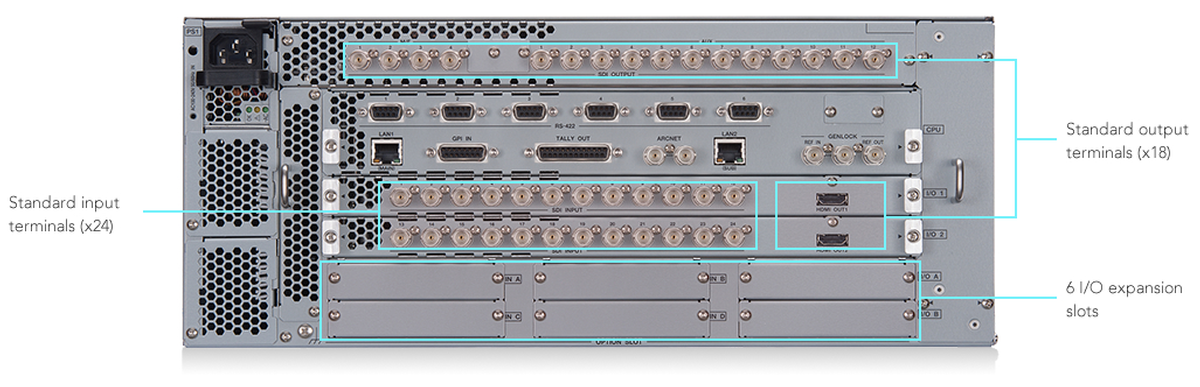

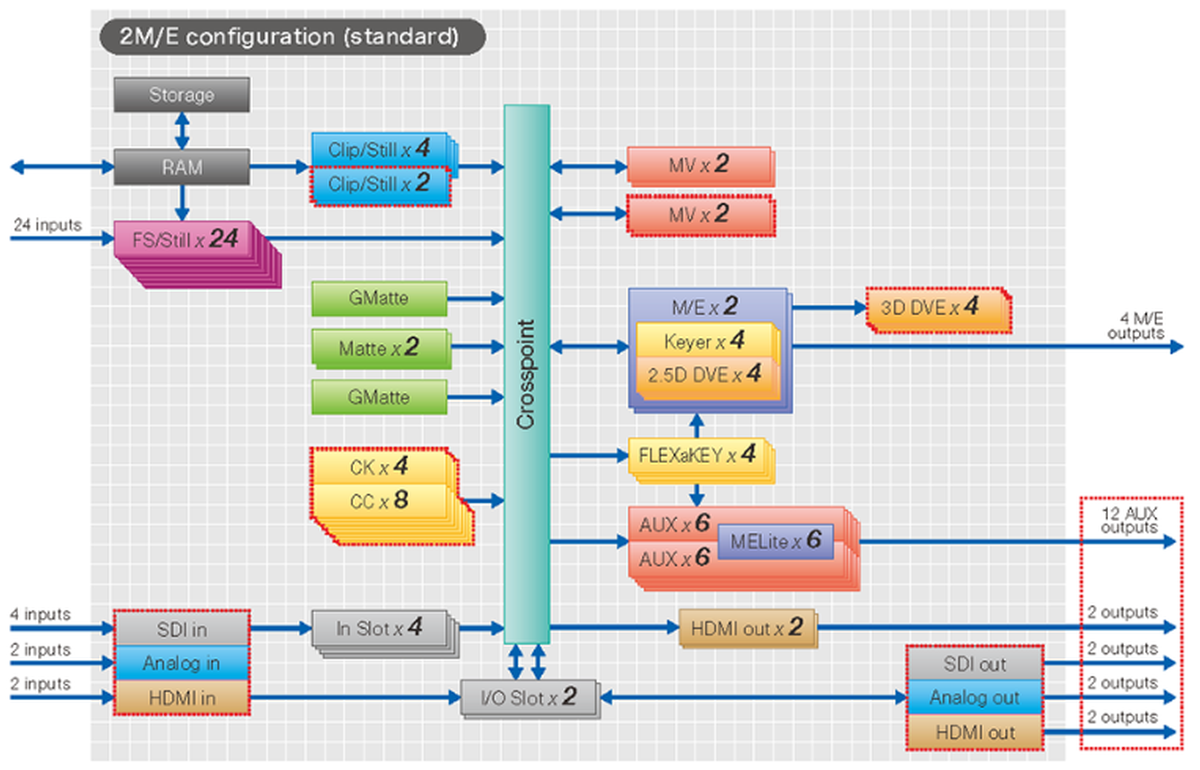

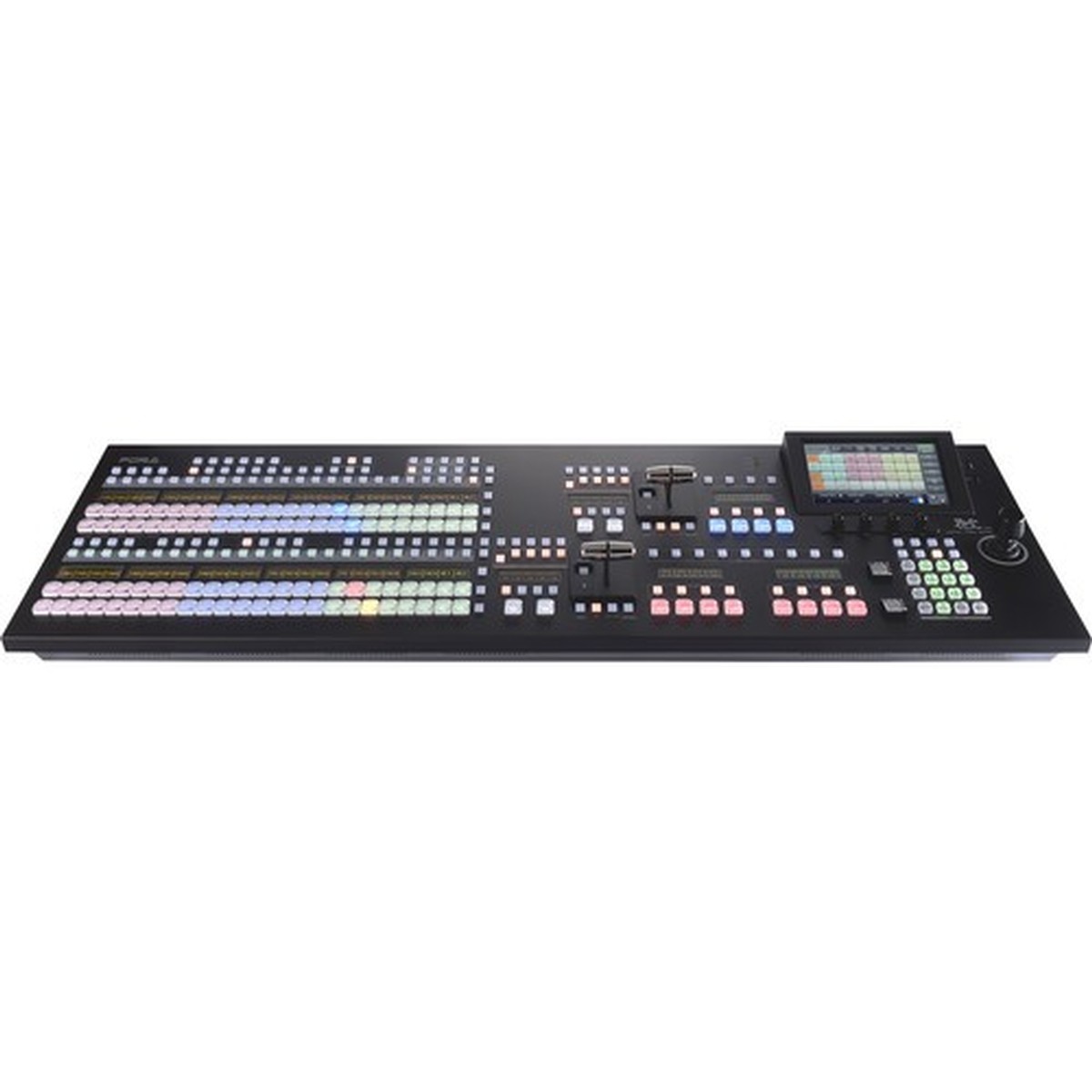

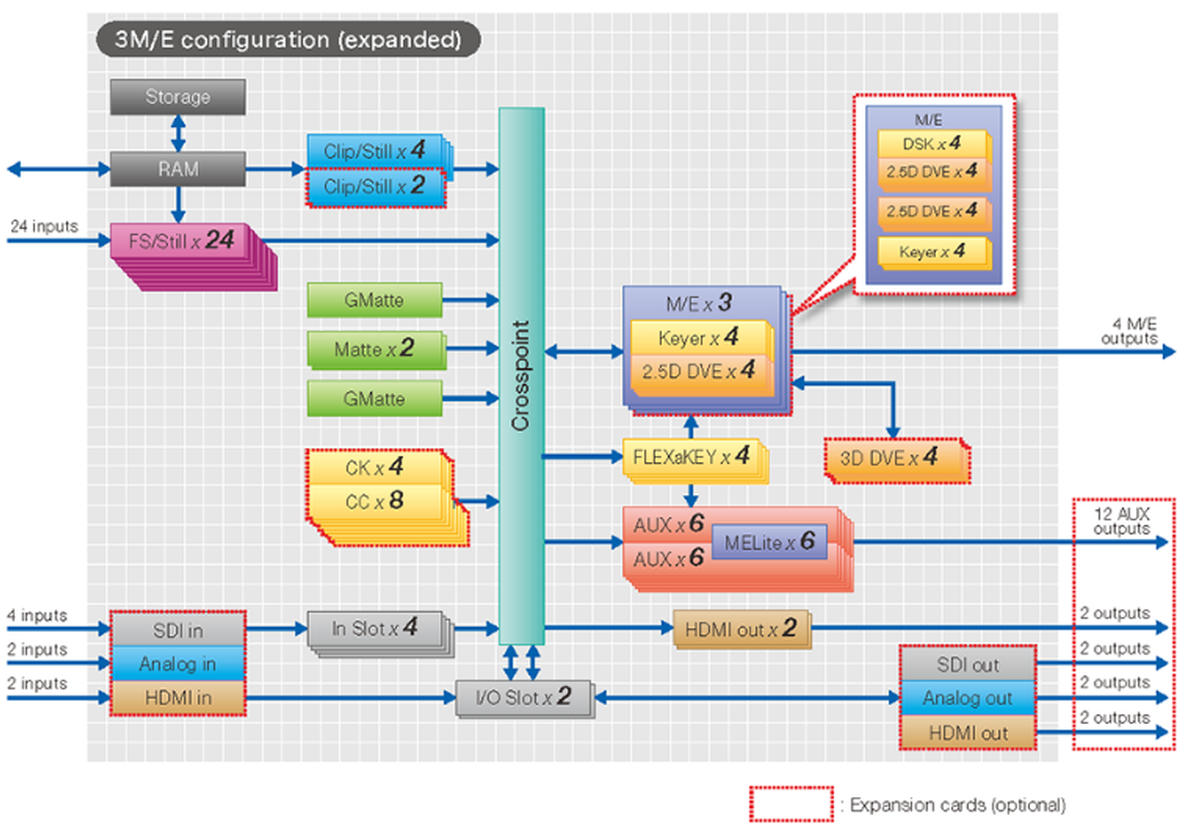

Featuring the Hanabi Six M/E Switcher (2 Full + 4 Melite) Broadcast Video Switcher with HVS-2240OU 24 button control panel from FOR-A. This system provides 24 HD/SD-SDI inputs, 18 outputs (16 HD/SD-SDI plus 2 HDMI) with Frame Synchronizer on each input. In addtion this system can be expanded to provide a total of 48 Inputs, 22 Outputs (via 6 option slots, optionally purchased). It features Full M/E- 4 Keyers with quad chroma Key/2.5D DVE,. System includes 4 FLEXaKEY(tm), 4 image stores/900 frame clip player (6 max with MV option), Dual 16 channel built In Multi Viewer (4 max with option, up to 64 image windows), Macro Function, PC and web based application interface, 18 Aux buses, 6 pair capable MELite(R) transitions. Integrated ONStage capabilities. Midas touch system GUI software capability is included however Touch screen appliance will need to be purchased separately. Package includes redundant power supplies for the main control panel and main frame. Arcnet connection for interface to optional HVS390 series control panels.

Specifications

• SD-SDI: 270 Mb/s)
• Expandable to up to 48 x SDI with 6 x HVS-100DI-A cards (available separately)
• Video Outputs
• 16 x BNC, 75 Ohms (HD-SDI: 1.5 Gb/s
• SD-SDI: 270 Mb/s)
• 2 x HDMI
• Expandable to up to 20 x SDI and 2 x HDMI (via separately available expansion cards)
• Signal Processing
• 4:2:2:4, digital component
• Quantization
• HD/SD-SDI: 10-bit
• Effects
• Wipe: 100 patterns (modification capability included)
• 2.5D DVE: 30 patterns or more DVE WIPEs (modification capability included)
• Transitions
• Fader controller, Auto, or Cut button
• Type: Mix or Wipe (DVE included)
• Still Store
• 4 x Channels with 900 frames at 1080 resolution, approx. 30 sec at 1080i
• Expandable to up to six channels with 1800 frames at 1080 resolution, approx. 1 minute at 1080i (expansion cards available separately)
• Multiviewer
• 2 x Channels, expandable to four channels (64 windows) via expansion cards (available separately)
• 2/4/5/7/9/10/11/13/16-way split views with title, tally, audio level meter, safety area, and border display
• Processing Amplifier
• On all inputs/outputs
• Color Correction
• 4 x Channels (two channels per M/E)
• Expandable to up to 12 channels via expansion cards (available separately)
• Correction Mode: Balance, differential, and sepia
• Clip Mode: YPbPr, RGB
• Event Memory
• 100 events (cross-fade transition available when loading events)
• Macros
• 100 Macros:
• 00 to 89: 30 actions max.
• 90 to 99: 300 actions max.
• Genlock Input
• 1 x BNC, loop-through, 75 Ohms (to be terminated with 75-Ohm terminator if unused)
• BB NTSC: 0.429 Vpp
• BB PAL: 0.45 Vpp
• Tri-level Sync: 0.6 Vpp
• System Phase Adjust
• Horizontal: -1/2 H to 1/2 H
• Genlock Output
• 1 x BNC, 75 Ohms
• BB NTSC: 0.429 Vpp
• BB PAL: 0.45 Vpp
• Tri-Level Sync: 0.6 Vpp
• I/O Delay
• HD: 1 H min. SD: 1.7 H min. 1 to 2 frames + minimum delay (when FS or resize engine used)
• 2 to 3 frames + minimum delay (when FS or resize engine plus DVE used)
• 3 to 4 frames + minimum delay (when FS or resize engine plus output resize engine plus DVE used)
• Interface
• 2 x RJ45, LAN 1 100BASE-TX, LAN 2 1000BASE-T
• GPI IN: 15-pin D-Sub female for 10 inputs
• GPI In / Tally Out: 25-pin D-Sub female for 20 outputs
• 6 x RS-422, 9-pin D-Sub female, for tally
• 1 x BNC loop-through, 75 Ohms
• Expansion cards with additional interfaces available separately
• Power
• Power Requirements: 100 to 240 VAC 10%, 50/60 Hz
• Power Consumption: At 100 to 120 V: 496 W
• At 220 to 240 V: 476 W
• Dimensions
• 16.9 x 7.0 x 19.7" / 43.0 x 17.7 x 50.0 cm
• Weight
• 39.7 lb / 18 kg
