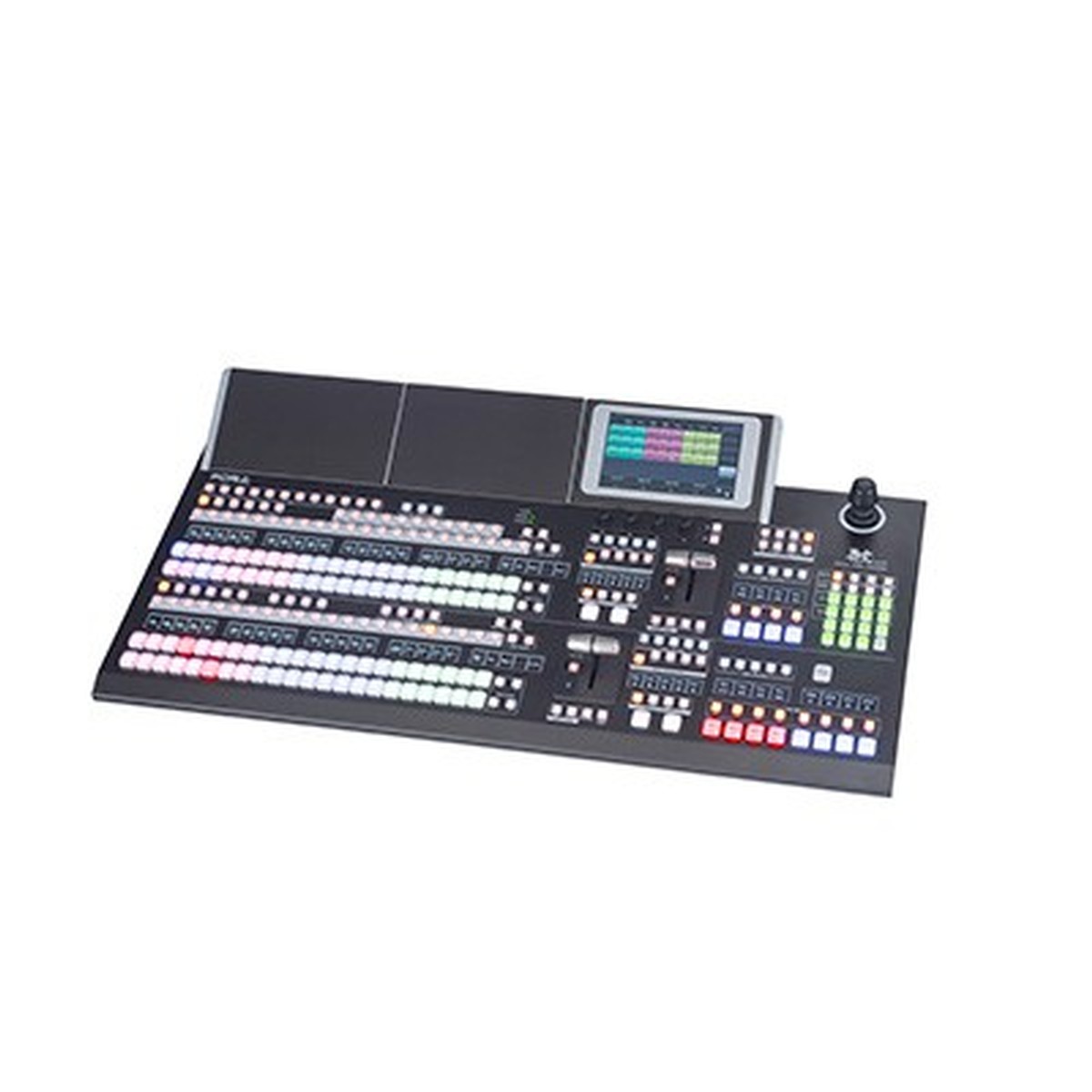

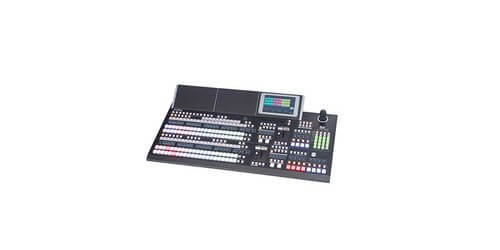

FOR-A HVS-490 2M/E Type A
Broadcast HD/SD-SDI Video Switcher with Control Panel

Description

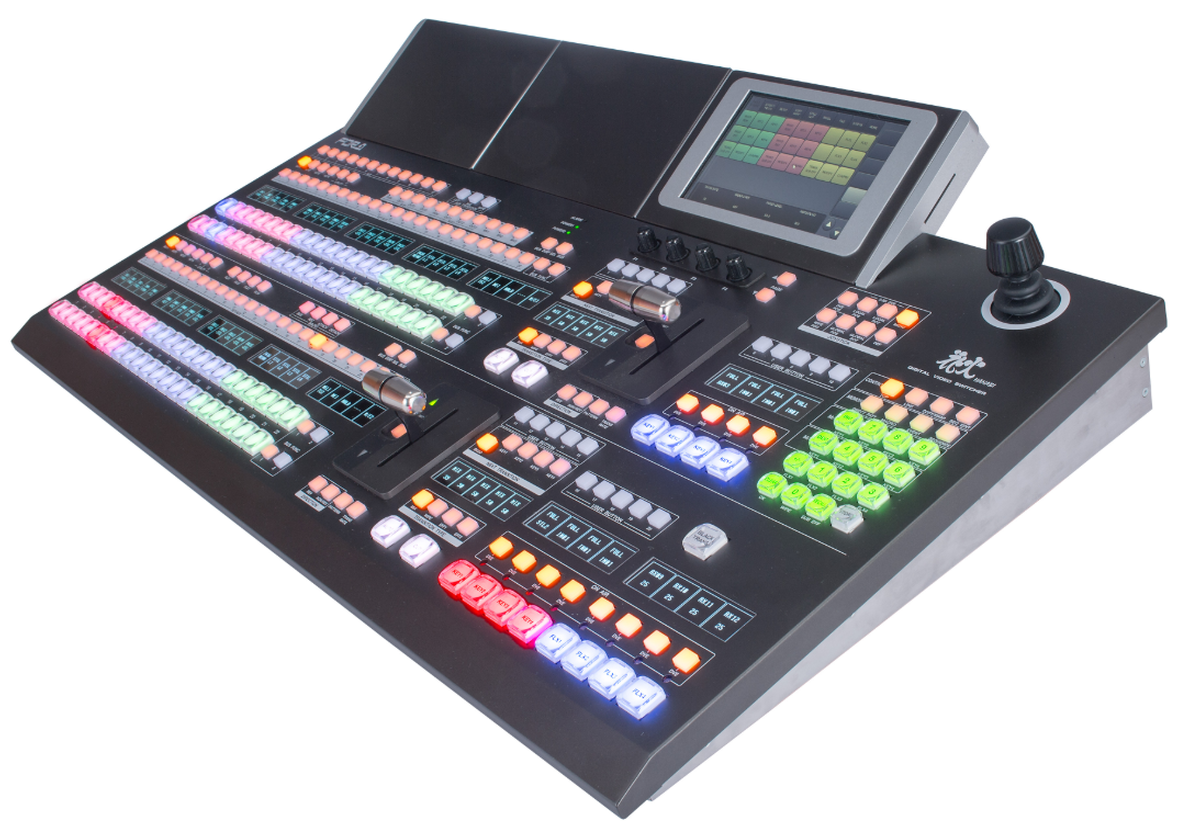

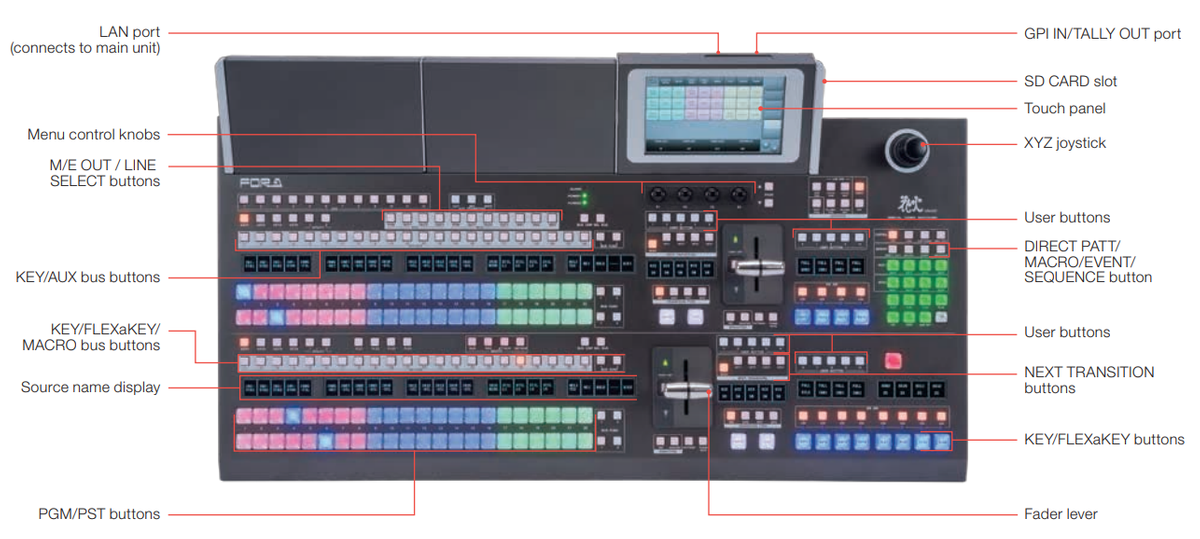

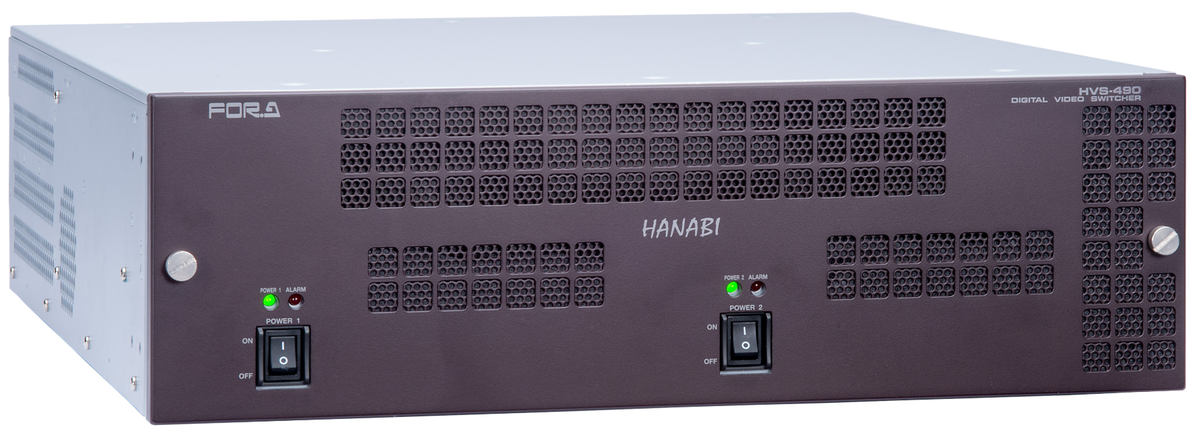

The HVS-490 2M/E Type is is a power house video switcher and control solution brought to you by FOR-A. This quality made broadcast video solution provides 1.5G and 3G standard operation and features the HVS-2180OU 18 button control panel. It offers users 16 HD/SD-SDI inputs and 9 outputs (8x HD/SD-SDI plus 1 HDMI 2.0b). Each input offers a Frame Synchronizer, and the entire system can be optionally expanded to up to 40 inputs and 22 outputs (via optional slot cards). This all encompassing system offers Full M/E- 4 Keyers with quad chroma Key/2.5D DVE,. System includes 4 FLEXaKEY(tm), 4 image stores/900 frame clip player, Triple 16 channel built In Multi Viewer (48 image windows), Macro Function, PC and web based application interface, 18 Aux buses, 2 pair capable MELite(R) transitions and Standard 16 channels of REAL DVE. Package include redundant power supplies for the main control panel and main frame.

Specifications

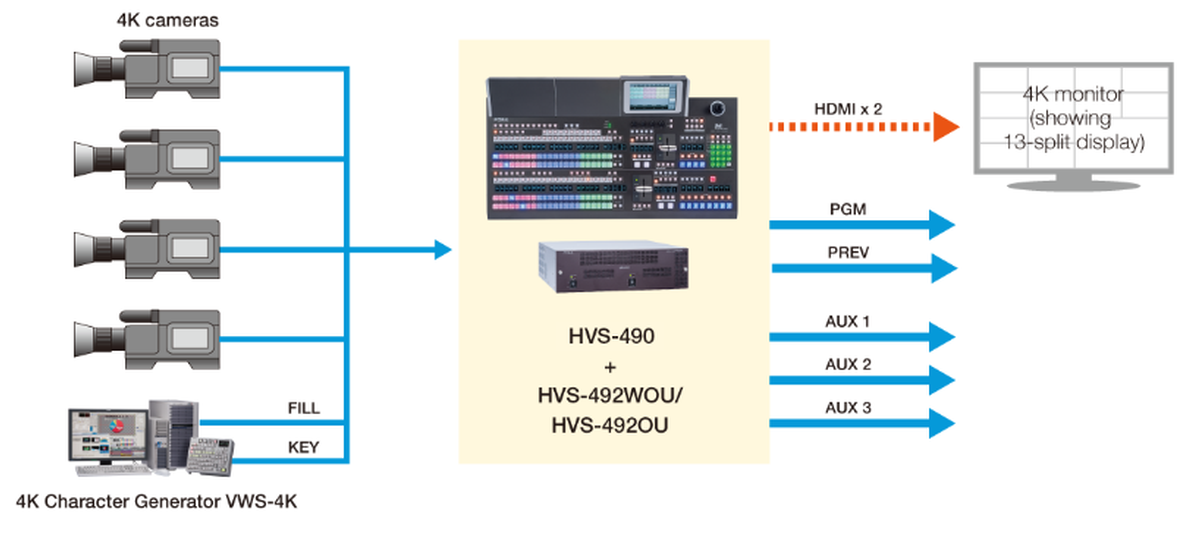

• 2 outputs, 4K UHDTV (3840p_
• Processing
• 4:2:2
• 3G-SDI
• 10-bit
• 2.5D DVE
• Standard: 4(2*), Max: 5(4*)
• * = at 3840 x 2160/59.94p, 50p)
• Keyer
• 2 channels
• Luminance jeyer
• Full keyer
• Bus keyer
• Box mask
• FLEXaKEY
• 1 channel
• Luminance keyer
• Full keyer
• Bus keyer
• Output to M/E, MELite, or AUX
• Color Corrector
• 1
• Multi Viewer
• 3 lines of multi-viewer output

Downloads

• FOR-A HVS-490 2M/E Type A Specifications (PDF)
• FOR-A HVS-490 2M/E Type A Manual (PDF)
