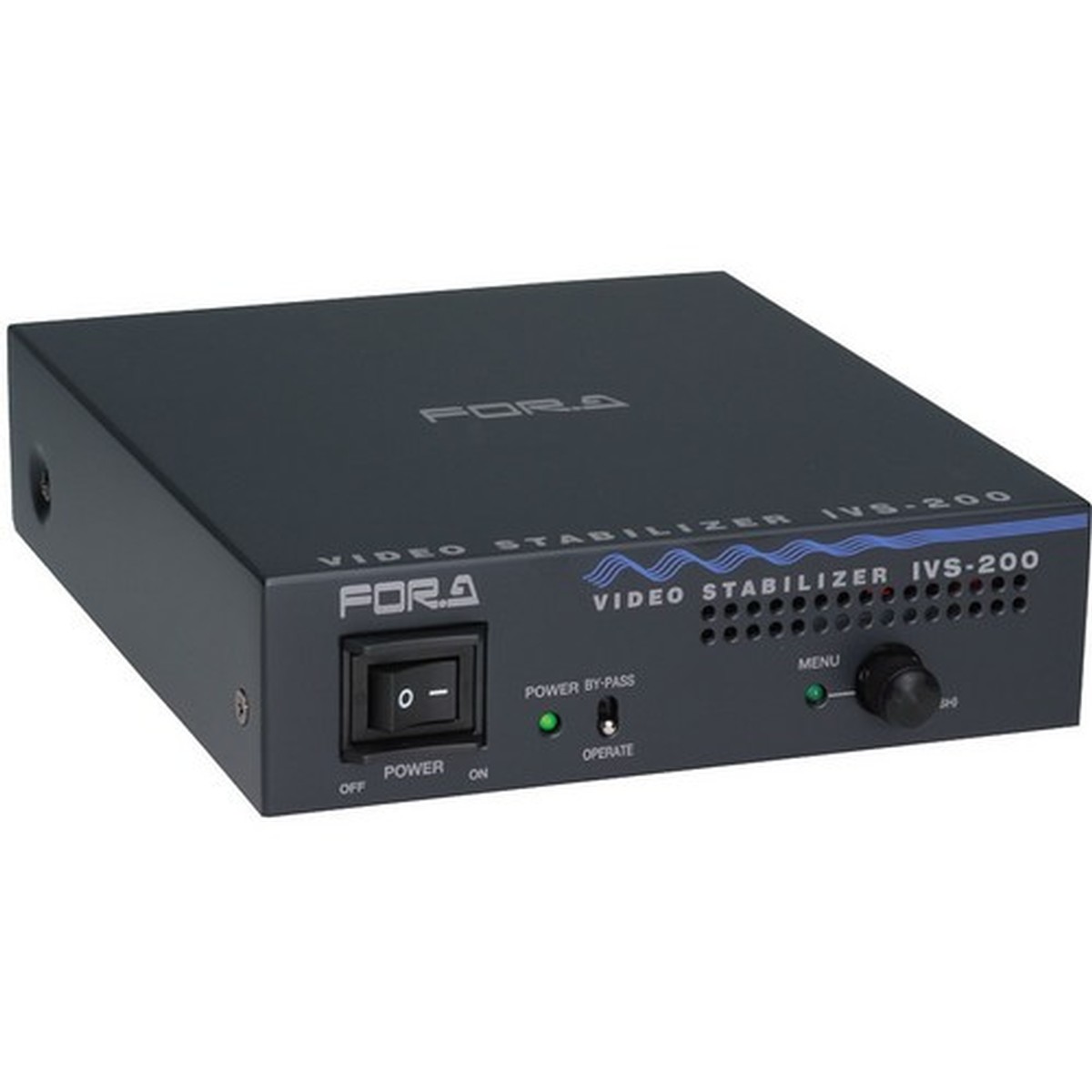

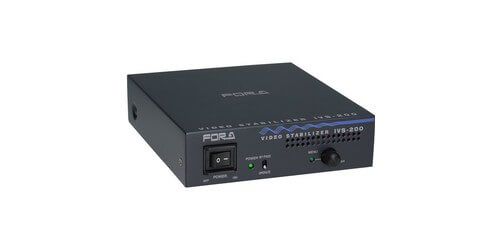

FOR-A IVS-200
Analog Composite In/Out Video Image Stabilizer & Video Optimizer
- Video Formats
- NTSC or PAL (auto-detection at startup)
- Video Input
- Analog composite: 1.o Vp-p, 75 Ohms, BNC x 1
Description

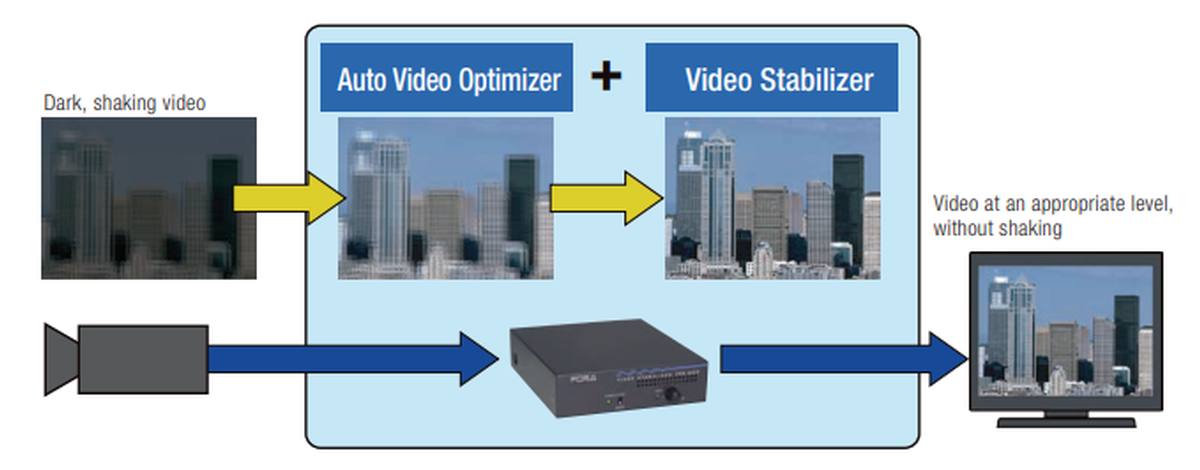

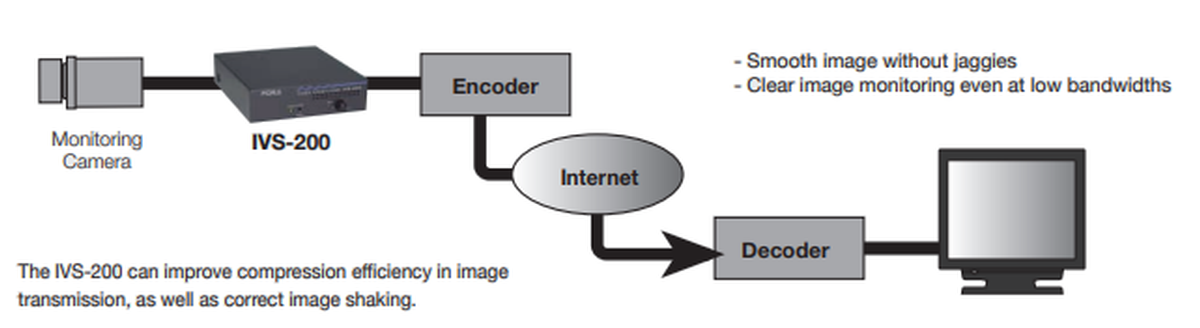

Introducing the For-A IVS-200 Composite Video Stabilizer & Optimizer from FOR-A. This upgraded version of the IVS-100 provides additional features and enhancements that allows users to correct horizontal, diagonal, and vertical shake at sub-pixel levels of accuracy, and in addition detects and corrects rotation in source video. This model also adds FOR-A's Auto Video Optimizer (AVO) function to the older unit's real-time video stabilization function. This enables the IVS-200 to generate output video that's not only shake-free but also displayed at the proper levels and gamma. While existing video stabilizers are able to correct vertical and horizontal shaking, the new IVS-200 also corrects rotation. Other functions that the IVS-200 offers is a time display function and title display function (alphanumeric characters, codes, maximum 16 characters x one line), NTSC/PAL automatic recognition function, and a small, portable, DC drive. With its analog composite video I/O, the IVS-200 is ideal for monitoring applications such as security and traffic cameras, in either NTSC or PAL video systems. The IVS-200 not only corrects shaky and dark or blown-out video for accurate viewing, it also can improve a video signal's compression efficiency for encoding and transmission further down the chain. This can enable clear video monitoring over IP networks even at low bandwidths.
Specifications
- Video Output
- Analog composite: 1.0 vp-p +/-0.1V, 75 Ohms, BNC x 2 (Video Output 1 with bypass output support)
- I/O Delay
- Max. 4 frames
- Jitter Correction
- Correction Range: Horizontally and vertically up to 40% of images
- Frequency Response
- Detects camera shakes of 1 Hx to half of field frequency
- Motion Type
- Vertical, horizontal, diagonal, and rotational (two-dimensional)
- AVO Correction
- Automatic luminance level adjustment for white and black levels
- Correction Mode: AUTO, HOLD (retains current settings), OFF (menu selectable)
- Correction Level: Preset: 5 steps, manually adjustable
- Title Display
- 16 characters x 1 line
- Characters: Alphanumeric characters and symbols
- Time Display
- Year-Month-Day HH: MM: SSL (24-hours display)
- Time Accuracy: within +/-10 seconds/month
- Interfaces
- Remote: 9-pin D-sub (female) x1
- Input: TTL negative logic level signal or make contact
- Output: 5V DC to 24V DC max, 40mA
- Power
- +12V DC to +24 V DC / 14 W (at +12V DC)
- Dimensions
- 145mm x 162mm x 42mm
- Weight
- 0.93 kg
