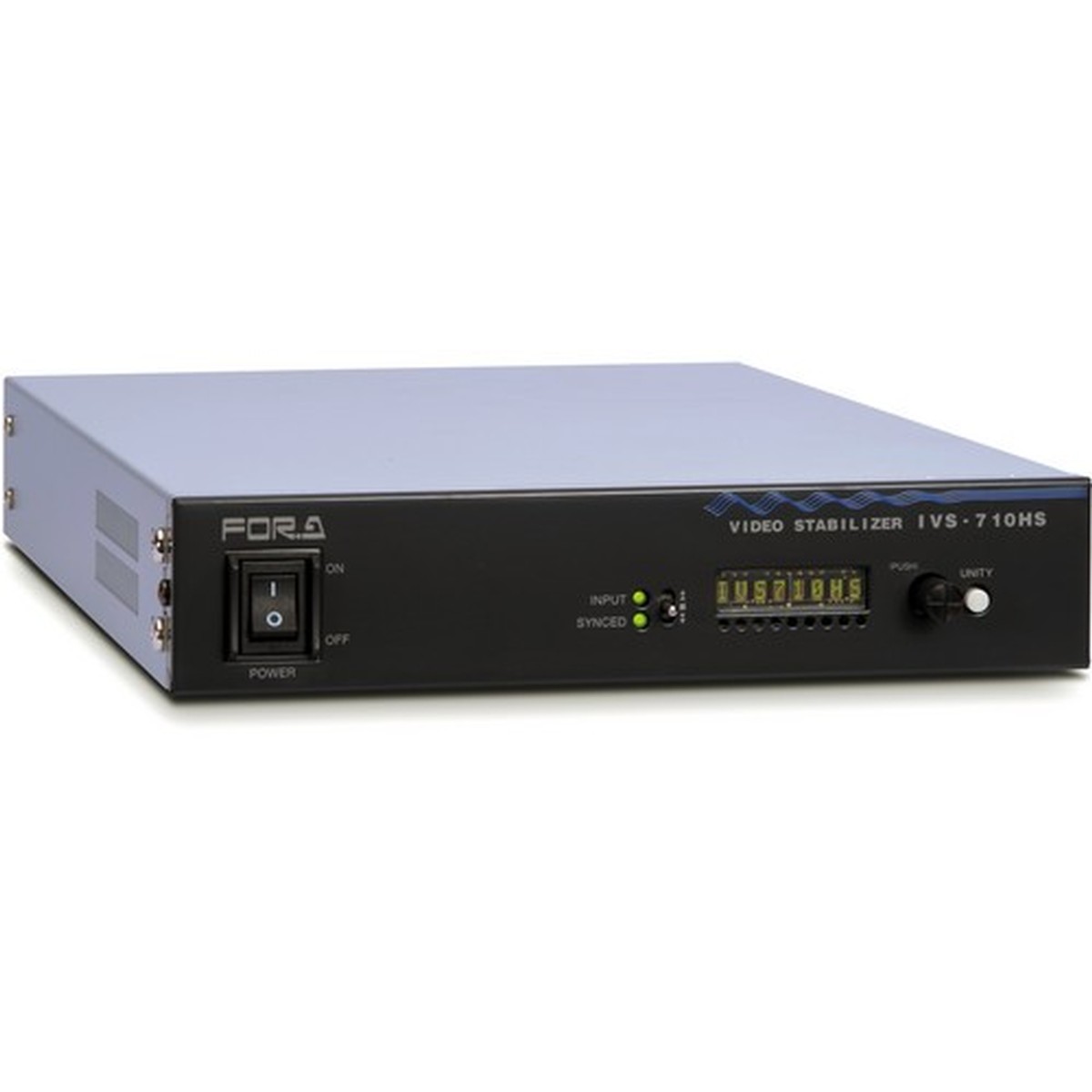

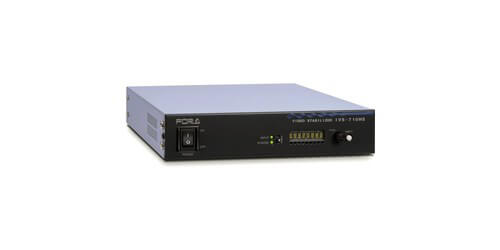

FOR-A IVS-710HS
HD/SD Digital Video Stabilizer
- Video Formats
- HD-SDI: 1080/60i, 1080/59.94i, 1080/50i, 720/60p
- SD-SDI: 525/60 NTSC, 625/50 PAL
- Signal Processing
-Jeff A.
Description

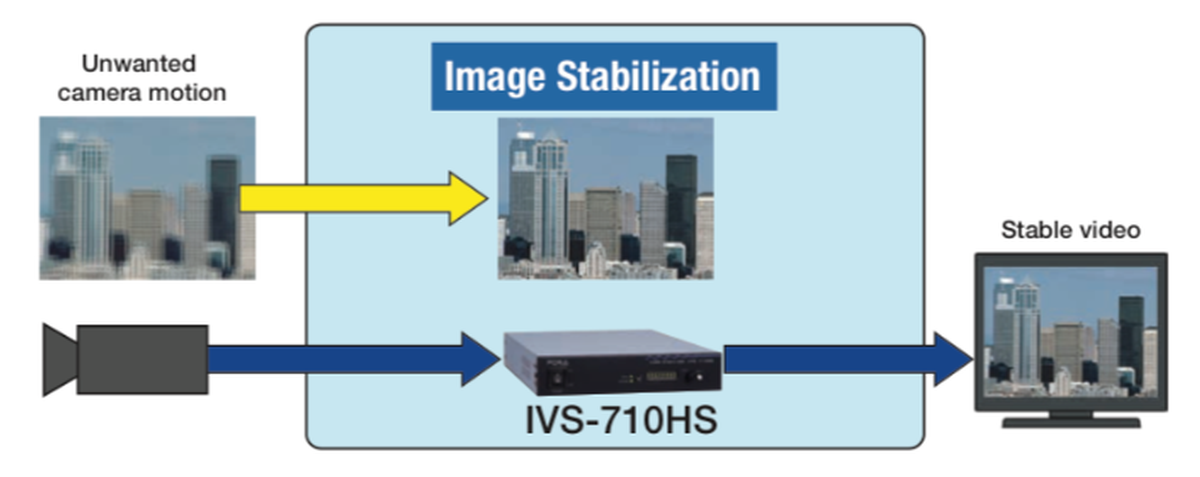

The IVS-710HS from FOR-A is a high-quality HD/SD Digital Video Stabilizer that provides real-time correction focused on unwanted camera motion. All while maintaining camera pan and tilt movements. It will support HD/SD-SDI inputs and outputs. The IVS-710HS gives users a high-performance video processing machine all house in a compact 1/2 RU body. This is a perfect device to aid in eliminating unwanted motion from weather camers, hand held news cameras, or program production motion problems. -- Additional features of the IVS-710HS include: Real Time Motion Correction (2-frame delay), Auto Detection of Camera Pan/Tilt, Correction for both live and recorded video, Sub-pixel precision, Correction in active area only, preserves blanking data, Blanking data transmission timing not affected by correction delay.
Specifications
- 4:2:2 component
- Video Input
- HD-SDI: 1.485/1.001 Gbps
- Video Output
- HD-SDI: 1.485/1.001 Gbps
- Quantization
- 10-bit
- Internal Processing
- 2 inputs 1-channel processing 3 outputs
- Input Cable Length
- HD 5C-FB: approx. 100m
- SD 5C-2V: approx. 200m
