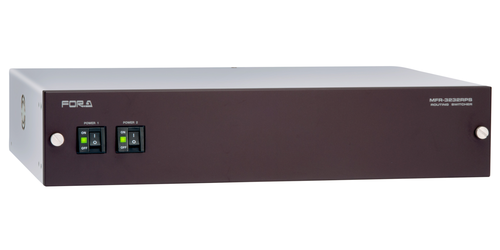

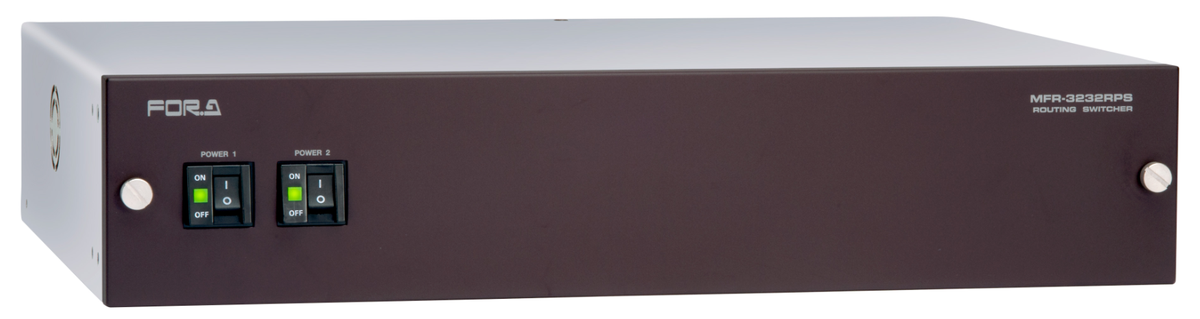

FOR-A MFR-3232RPS
32x32 Routing Switcher (3G/HD/SD/ASI)

Description

The MFR-3232RPS is a Multi-format 32X32 routing switcher that support 3G-SDI, HD-SDI, SD-SDI, ASI, and AES signals from FOR-A. This device is optimal for small- and medium-scale systems and despite their compact cabinet size, these models inherit various, proven MFR-5000 Series functions such as the interface function for multi-link synced operation and tally and automatic source name tracking connections with peripheral devices (video switchers and multi-viewers). Aside from ordinary crosspoint switching, this device will support various crosspoint control formats/functions to include a Salvo function, take operation, link function, level operation, chop function, and incorrect operation deterrence. In addition this device comes equipped with a built-in Web server, thus enabling external control via browser. -- FOR-A has also implemented various redundancy technologies and functions to help enhance the core of this routing switcher's capabilities. This includes a redundant CPU board option, as well as a redundant power source option (both purchased separately).

Specifications

• 32 Video Inputs
• 32 Video Outputs
• Dimensions: 430x88x300mm
• Weight: 6kg
• Warranty: 1 year

Downloads

• FOR-A MFR-3232RPS Specifications (PDF)
• FOR-A MFR-3232RPS Manual (PDF)
