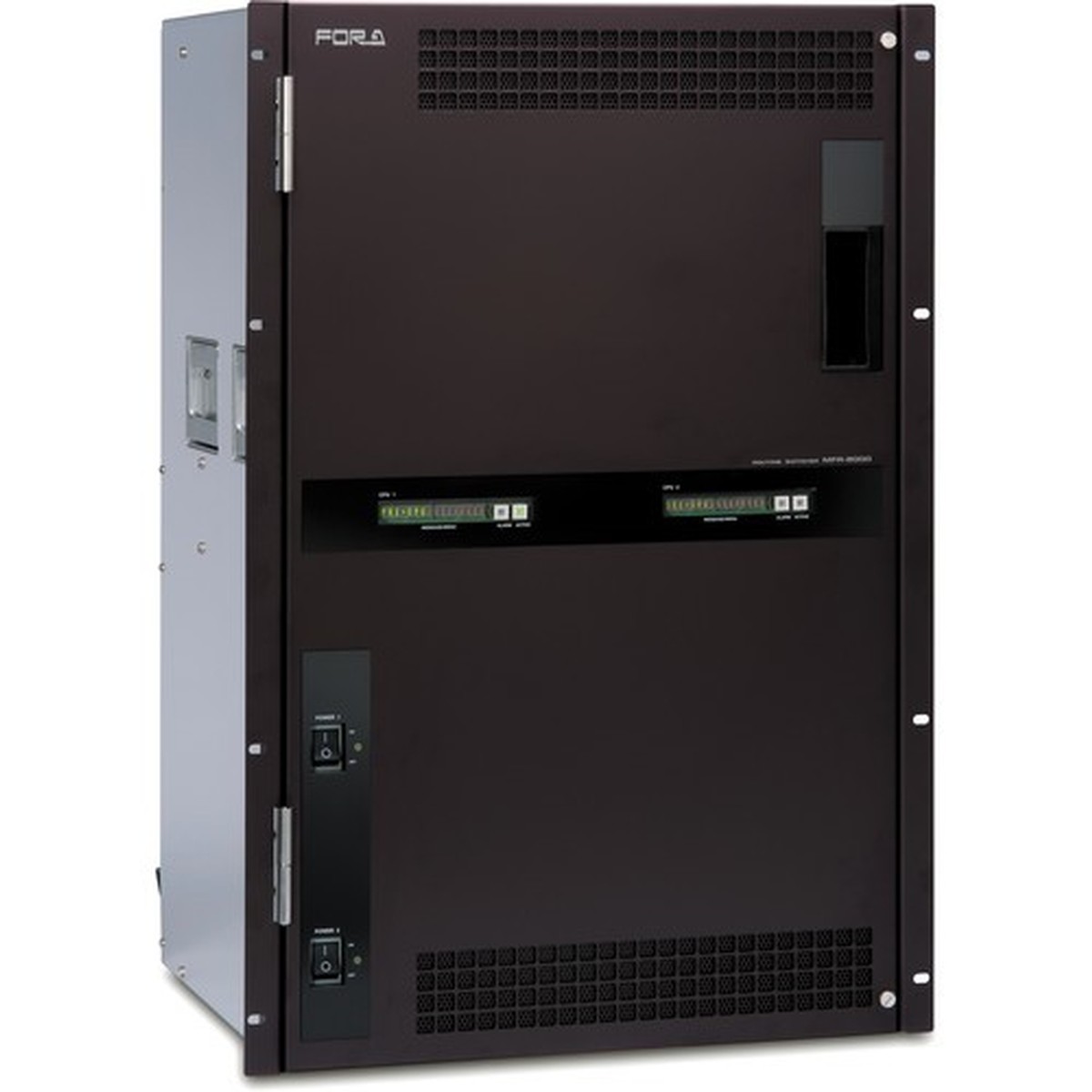

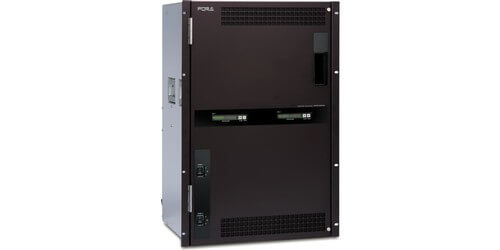

FOR-A MFR-8000
256X256 8RU Modular Routing Switcher Case

Description

The FOR-A MFR-8000 Series 8RU Routing Switcher Case is highly configurable; supporting up to 256 inputs, 256 outputs, and 4 monitoring outputs. It comes with a primary CPU control board and power supply, but otherwise requires you to configure it with optional I/O cards. The unit, with optional I/O cards, supports SD, HD, 3G, and DVB ASI video signals and AES/EBU audio signals. Once the unit is configured with the options, it allows you crosspoint control functions; including button-assigned Salvo, Main unit storage Salvo, Take operation, Chop function, and monitor enable. The switcher supports combining multiple remote control units to make them act as a single large scale control panel. The switcher case supports an optional redundant CPU control board and power supply. Control of the switcher is through either Ethernet or RS-232/RS-422 serial control. The switcher case is rackmountable using the included rackmount clips.

Specifications

• Configuring Matrices (Maximum 256 Input/ 256 Output)
• MFR Series WEB-based Control
• Various Crosspoint Control

Downloads

• FOR-A MFR-8000 Specifications (PDF)
• FOR-A MFR-8000 Manual (PDF)
