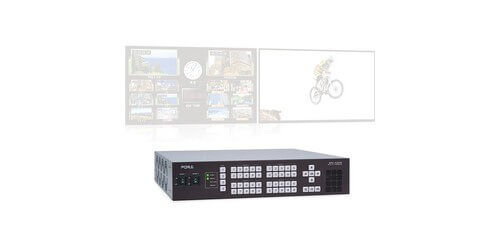

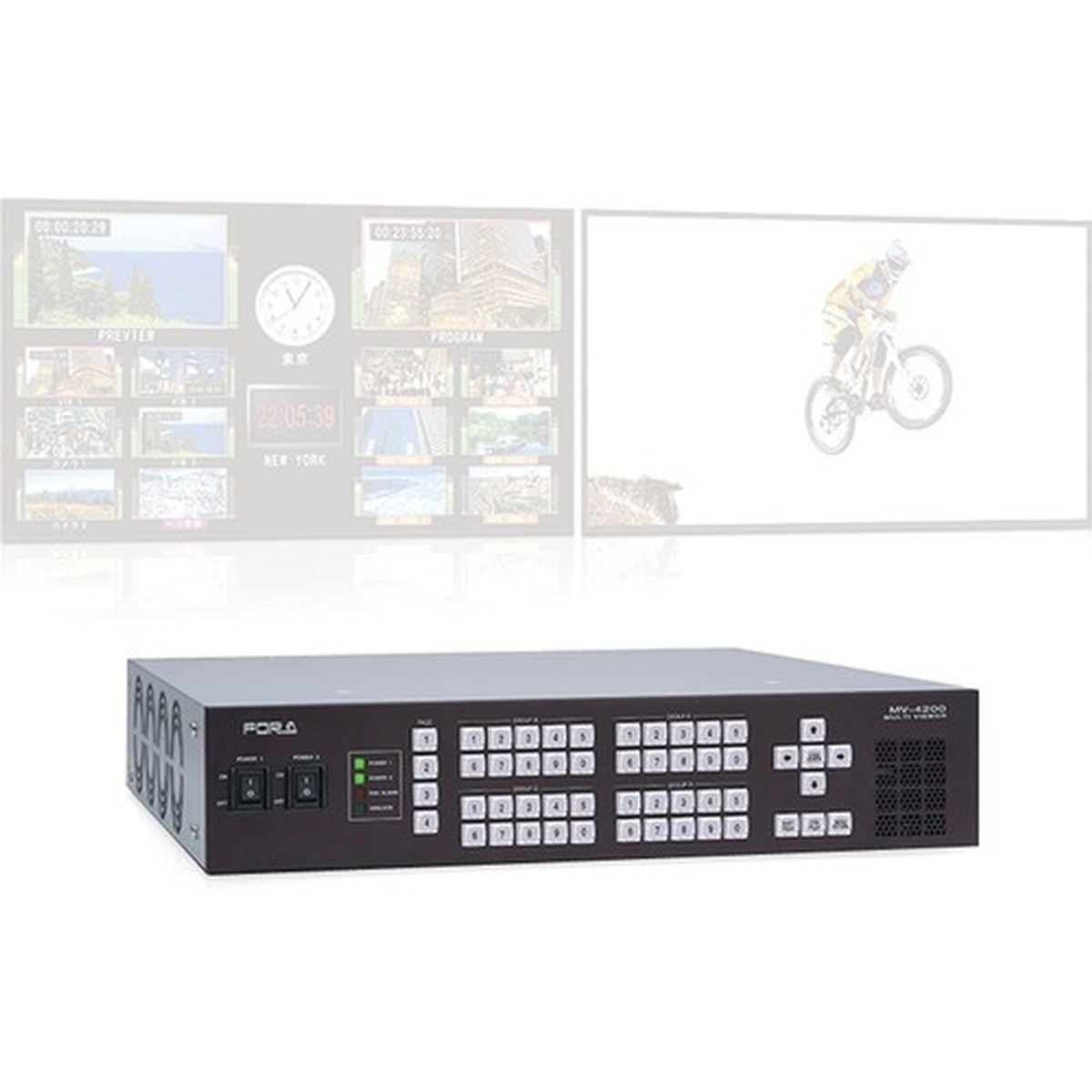

FOR-A MV-4200
3G HD-SDI & HDMI Mixed High Resolution Multi Viewer - 114 Windows
- Displays up to 114 windows
- Includes 4 outputs each for 3G-SDI and HDMI
- Add up to 10 inputs for 12G-SDI
- Record Streamed Video
Description
The MV-4200 3G/HD/SD/Analog/HDMI/DVI/RGBHV Mixed High Resolution Multiviewer from FOR-A comes with eight 3G/HD/SD-SDI inputs and four 3G/HD-SDI and four HDMI outputs. The modular design of this 2RU multiviewer allows you to expand the total inputs to up to 68 analog or 8 analog and 24 DVI inputs by adding separately available input cards. The MV-4200SDI card has twenty 3G/HD/SD-SDI analog composite inputs and up to 3 of these can be added to the MV-4200. With three MV-4200HDMI cards installed (each with eight DVI inputs), you get a total of 4 3G/HD/SD-SDI and 24 DVI inputs. HDMI sources can be connected via separately sold DVI-to-HDMI adapters. The MV-4200 provides amazing expandibility when it comes to future proofing your broadcast systems with optional available input/outputs cards. It offers users HD to 4K up-resizing, a windows based screen layout creation and management software, video streaming, recording of streamed video, cropping, frozen frame detection, plus many more amazing features. In addition, the MV-4200IF Interface Card (available separately) can be added for GPIO, serial control, and input of analog audio, AES audio, and genlock. The MV-4200 Multiviewer offers a customizable window layout, audio level meters, and AFD-compatible cropping functionality.
Specifications
- Versatile Mixed-Source Environment
- HD Output of Source Signals
- Audio Level
- Audio Monitoring Output
- Prominent Error Display
- Tally/Title/Timecode
- Time of day, Timer, and Information Display
- Information Display
- Logo/Background
- Input Lock
- Can display time based on a 30-hour clock
- Schedule Timer
- Cropping
- Frozen Frame Detection
