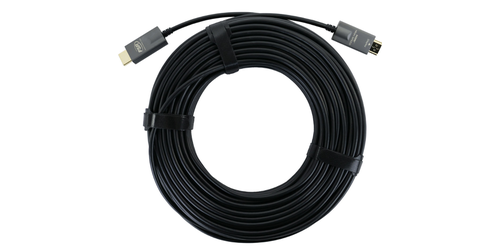

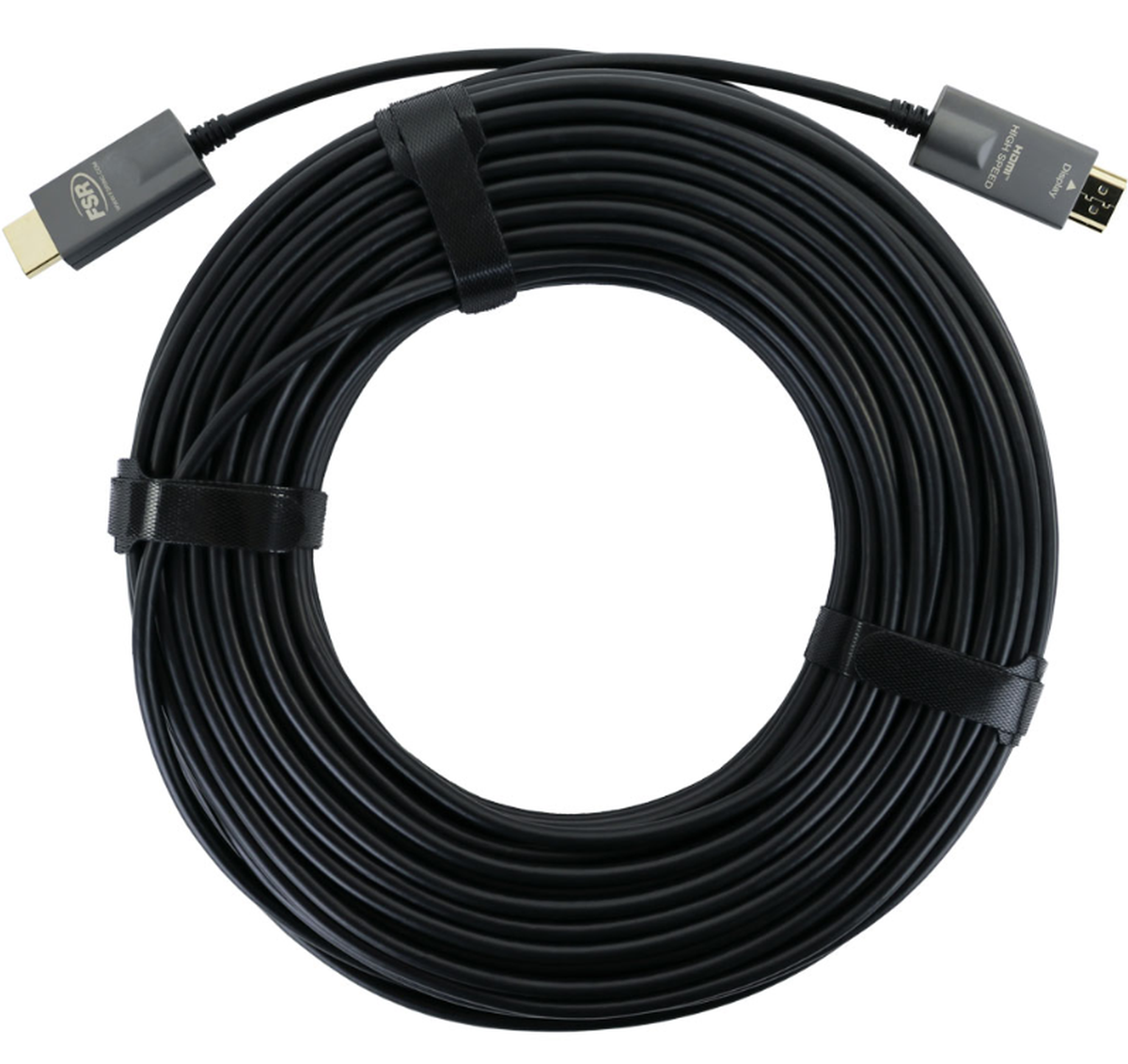

FSR DR-H2.0-50M
HDMI 2.0 Plenum Rated AOC Digital Ribbon Cable - 165'
- 165' long
- HDMI Active Optical Cable
- Data Transfer Rate: Up to 18 Gbps
- Plenum rated - Type CMP/FT6
-Brandon K.
Description
FSR introduces the DR-H2.0-50M, a digital ribbon cable featuring high-speed, high-definition HDMI signal transmission over distances up to 328 feet. The cables come pre-terminated in convenient lengths.
The FSR DR-H2.0-50M cables can easily handle up to 4k 60Hz 4:4:4 HDR uncompressed HDMI video and are ARC compatible. These cables meet HDMI 2.0 and HDCP 2.2 testing standards and support DDC for HDCP and EDID, PCM, Dolby, DTS-HD, and True HD Audio.

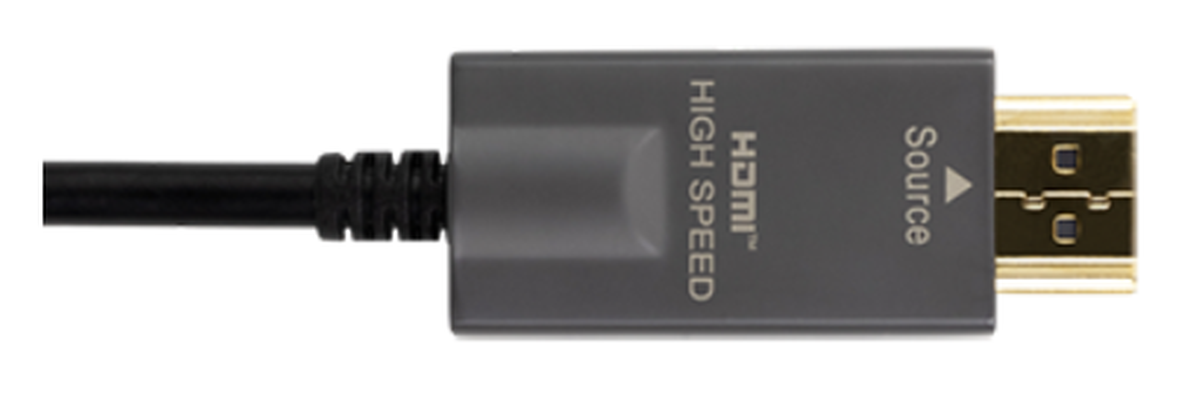

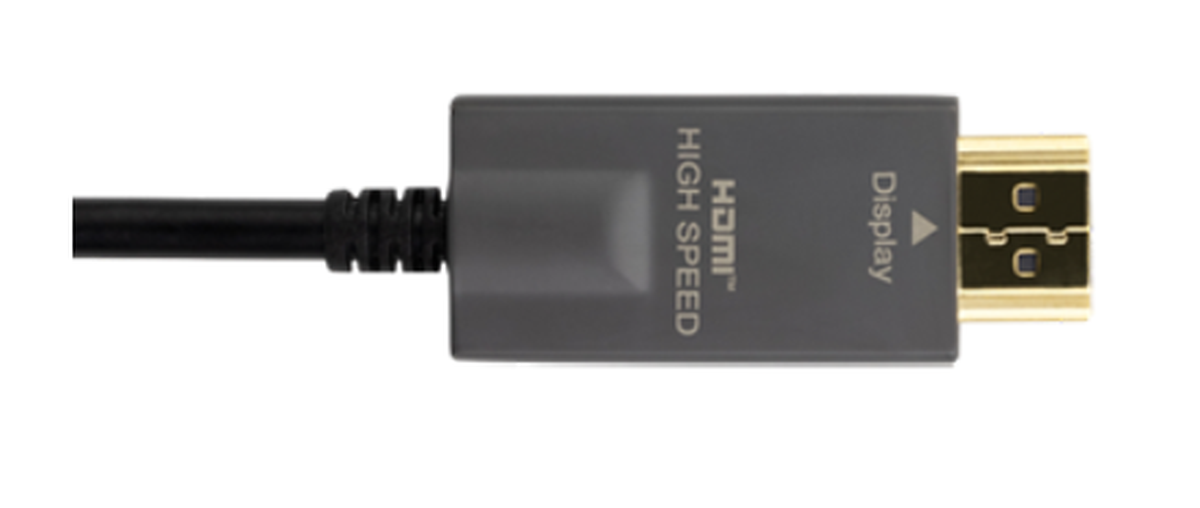

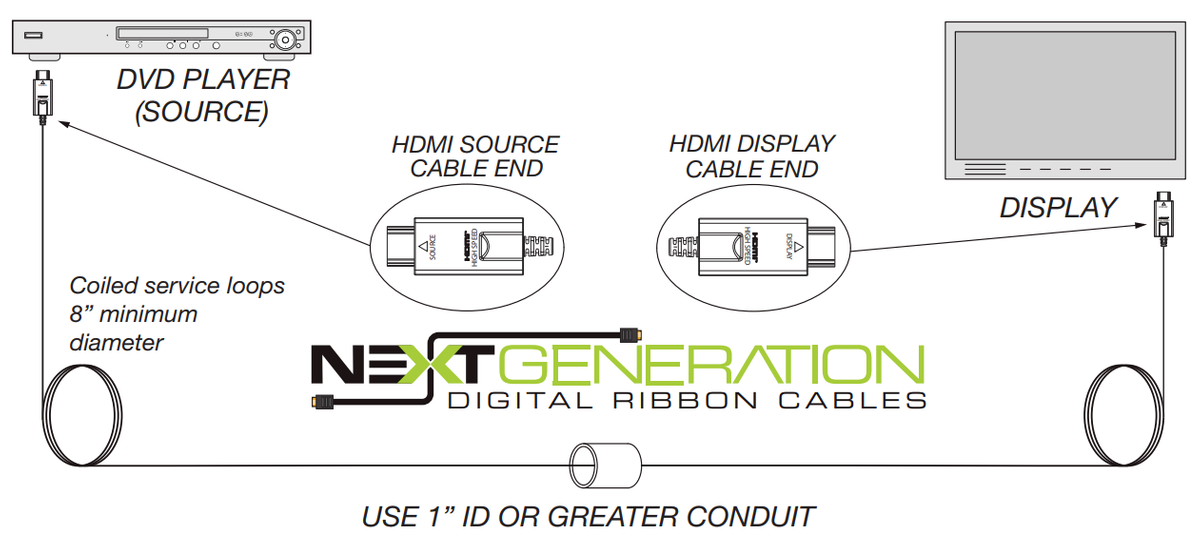

The connector shells are labeled "source" and "display" to aid in proper connection during the installation. Both the cable and connector were designed to easily fit within a 1" conduit.
For a plenum-rated active optical HDMI cable that can handle 4K signals, look no further than the FSR DR-H2.0-50M!
Specifications
- No External Power Required
- Resolution: Up to 4K60 Hz at 4:4:4, Uncompressed
- Supports: HDMI 2.0, HDCP 2.2, DDC for HDCP and EDID, 3D, Deep Color, ARC compatible
- HDMI Audio Specs: PCM, Dolby, DTS-HD, and True HD
- Features a Low 0.5" Bending Radius
- Warranty: 3 Years
