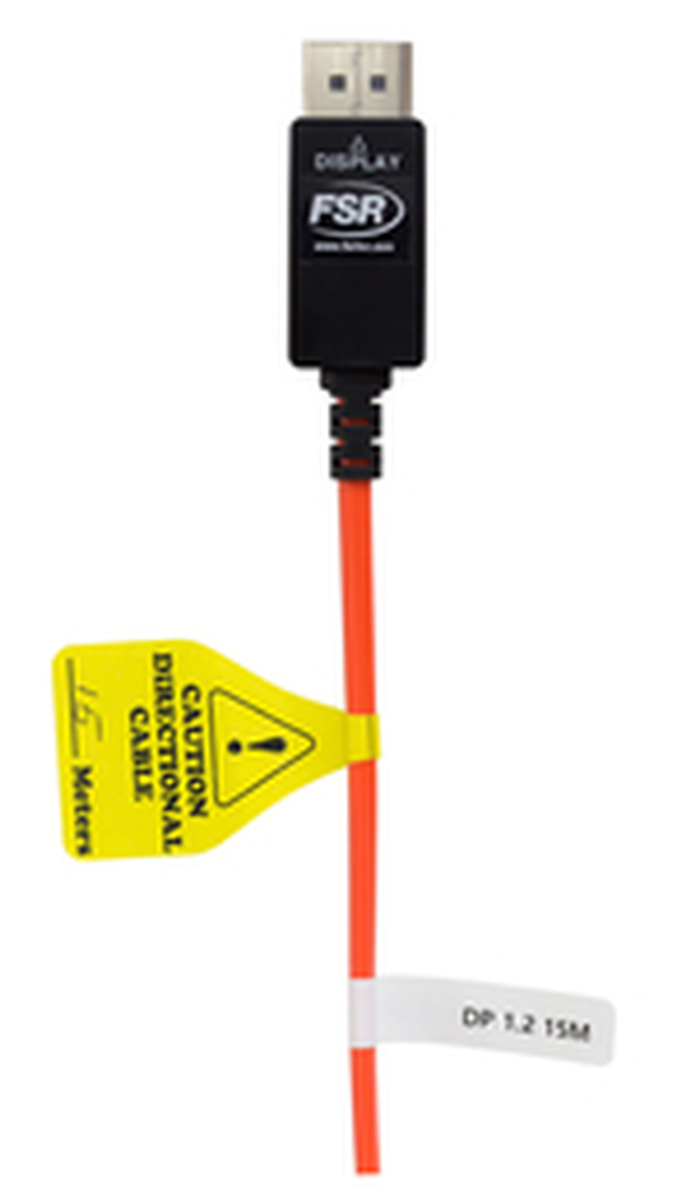

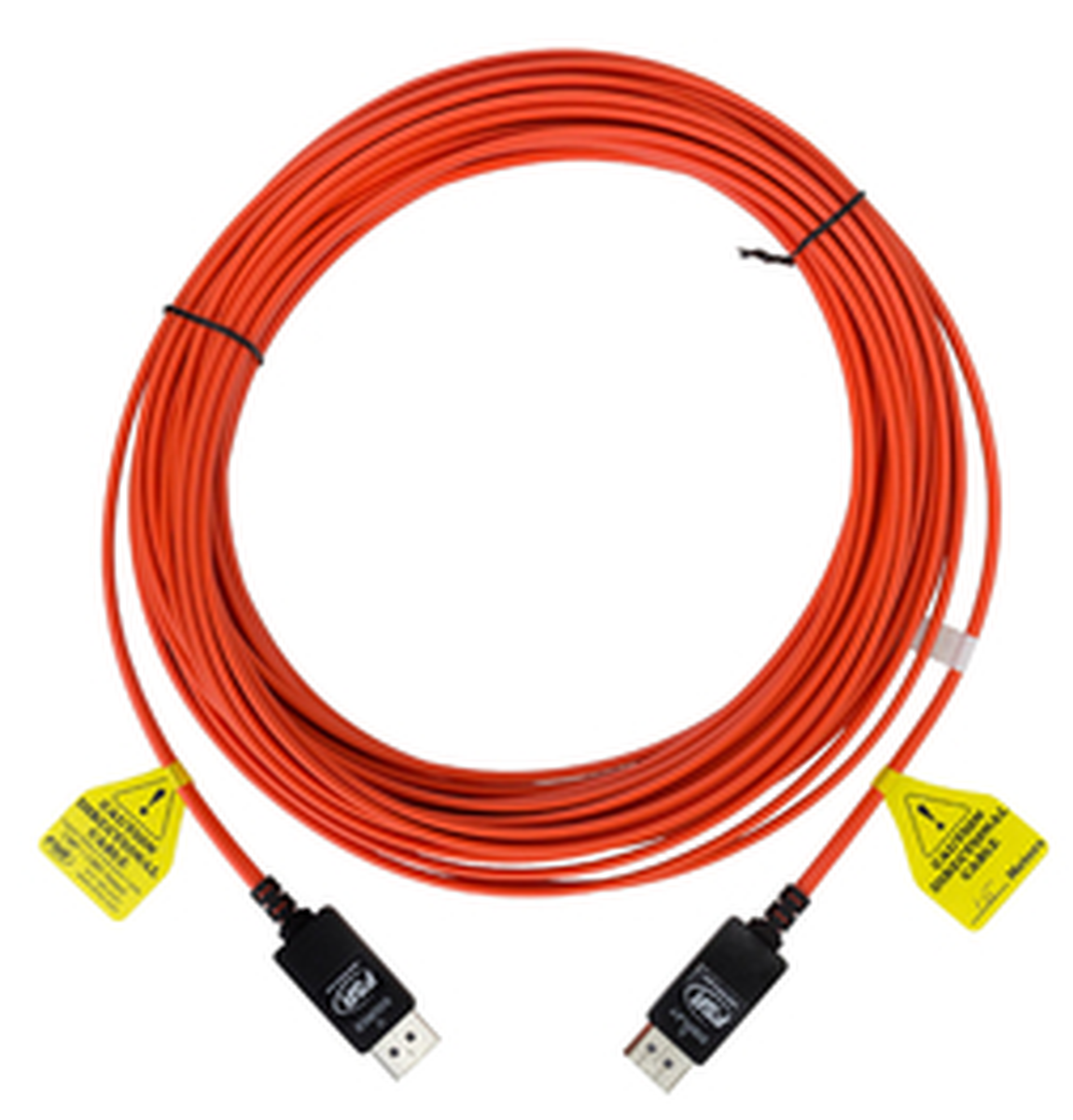

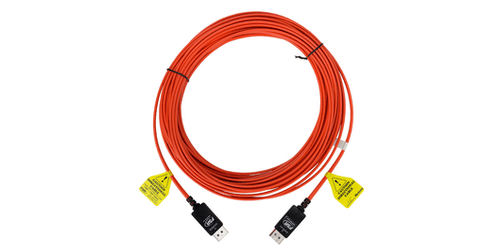

FSR DR-PCB-DSP-H30M
100' Cable DisplayPort Male to Male Plenum

Description

FSR introduces plug-and-play, hot-swappable DisplayPort active optical cables are the best solution available for true 4K/60Hz/4:4:4 HDR content delivery over longer distances. They feature high-bandwidth video transmission, low power consumption, and low EMI with patented polymer optical fiber technology.

This is a simple, practical solution for ultra high-definition video distribution in conference and huddle rooms, classrooms and lecture halls, houses of worship, digital signage and many other commercial and residential home theater and gaming applications. Long-Reach DisplayPort active optical cables provide optical performance at the price and simplicity of copper, giving the user a complete connectivity solution at a low total cost.

Specifications

• Total Data Rate: 21.6 Gbps
• Power Consumption: 500 mW maximum
• UL Listing: CMP-OF
• Operating Temperature Range: 0 to 50 C
• Cable Dimensions: 5.1 mm x 3.1 mm
• Connectors: 20-pin male DisplayPort
• Maximum Tensile Load:50 lbs
• Minimum Bend Radius: 5 mm
• DisplayPort Compliance: 1.2 or 1.3 depending on connected devices
• HDCP Compliance: 1.3 or 2.2 depending on connected devices

Downloads

• FSR DR-PCB-DSP-H30M Specifications (PDF)
