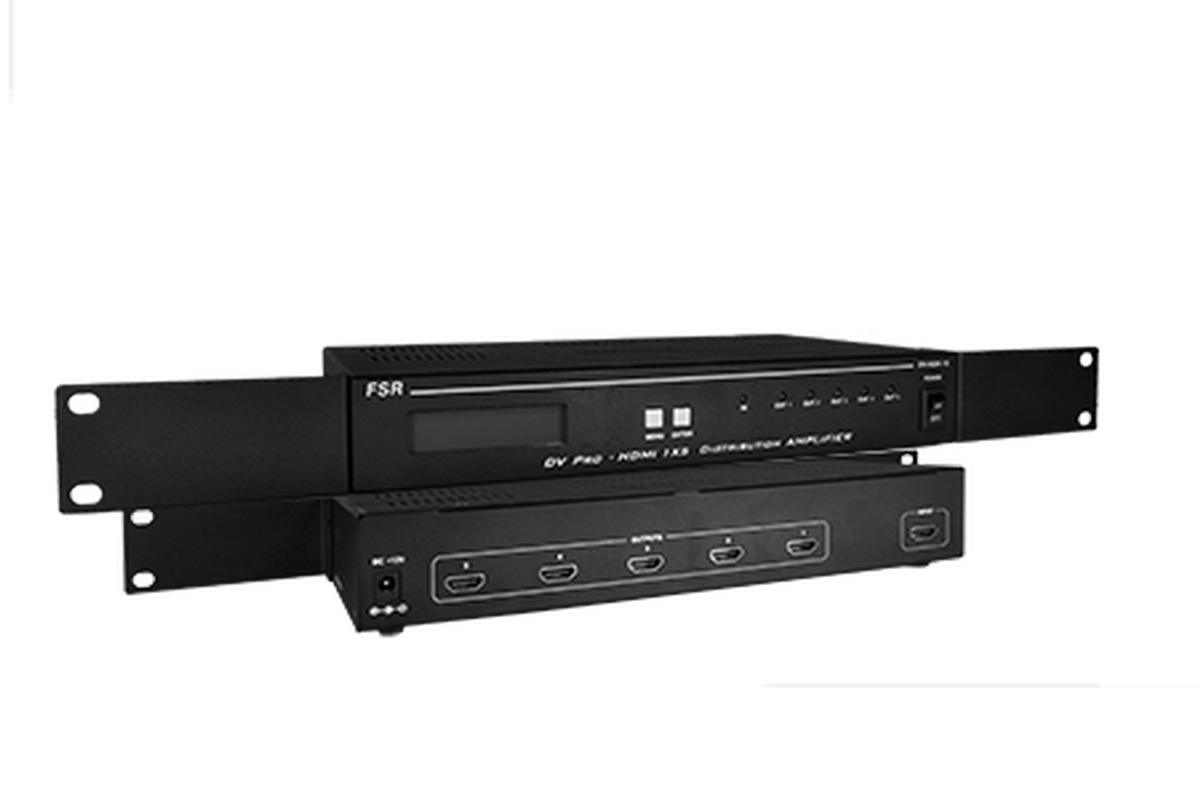

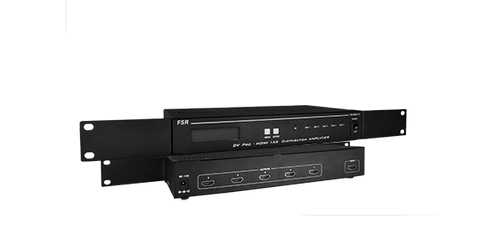

FSR DV-HDA-15
1x5 HDMI 1080P Distribution Amplifier

Description

The FSR DV-HDA-15 is a 1x5 HDMI distribution amplifier, it acccepts 1 HDMI input and splits the signal to 5 HDMI outputs with a perfect picture.  The DV-HDA-15 supports resolutions up to 1080P at 60Hz with 36 bit color, it is compliant with HDMI 1.3 and HDCP 2.1.  The audio is embedded with the output on the HDMI, it supports Dolby True HD and DTS-HD.  The EDID is selectable for non standard displays. Installation is plug and play with the included power supply while LED lights on the front provide signal verification.

The FSR DV-HDA-15 is a reliable solution to split your HDMI signal up to 5 times.

Specifications

• Compliancy: HDMI 1.3, HDCP 2.1
• LED status lights
• EDID Selectable for Non-Standard Displays
• Dimensions: 12.25in x 5.7in x 1.02in
• Weight: 1.25lbs
• Includes power supply and rack ears
• Warranty: 3 years

Downloads

• FSR DV-HDA-15 Specifications (PDF)
• FSR DV-HDA-15 Manual (PDF)
