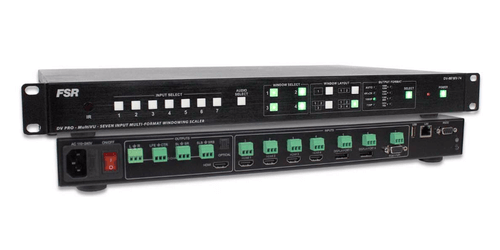

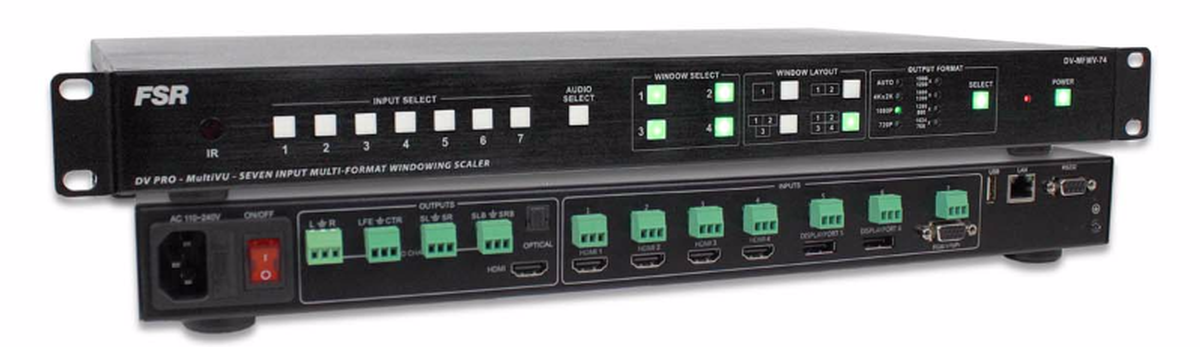

FSR DV-MFMV-74
7x1 Multi-Format Switcher, 4K Scaler, 4 in 1 Display Windowing
- Inputs: 4 HDMI (MHL), 2 DisplayPort, and 1 VGA
- Outputs: 1 HDMI
- Max resolution output: 3840x2160 at 30Hz (4K x 2K at 30Hz)
- Each source input is automatically scaled to match the optimal output resolution
Description
The FSR DV-MFMV-74 is a multi format 7 input switcher with 1 scaled 4K output. The inputs include 4 HDMI, 2 DisplayPort, and 1 VGA, the output is 1 HDMI. The HDMI output is scaled and supports resolutions up to 4K at 30Hz for the HDMI and DisplayPort inputs. The switcher also features seamless fast windowing; on one display you can show one, dual, triple, or quad screen. All 4 HDMI inputs support MHL so you can charge your phone and show the content that is on your smartphone. The unit can be controlled via the front panel, web page, RS-232, IP, and with the included remote control.
The FSR DV-MFMV-74 is a unique switcher and scaler in that it also provides rapid seamless windowing up to quad screen. Also integrated is audio extraction out so you can send to your rooms amplifier.
Specifications
- HDCP compliant
- Audio inputs: 7 x 3.5mm captive screw terminal block
- Audio outputs: 4 x 3.5mm captive screw terminal block, 1 x Optical
- Control: Front panel, web page, IR, RS-232, and IP
- Dimensions: 17.3" x 1.7" x 10.7" (1RU)
- Weight: 7.3lbs
- Includes: Rack ears, IR remote
- Warranty: 3 years
