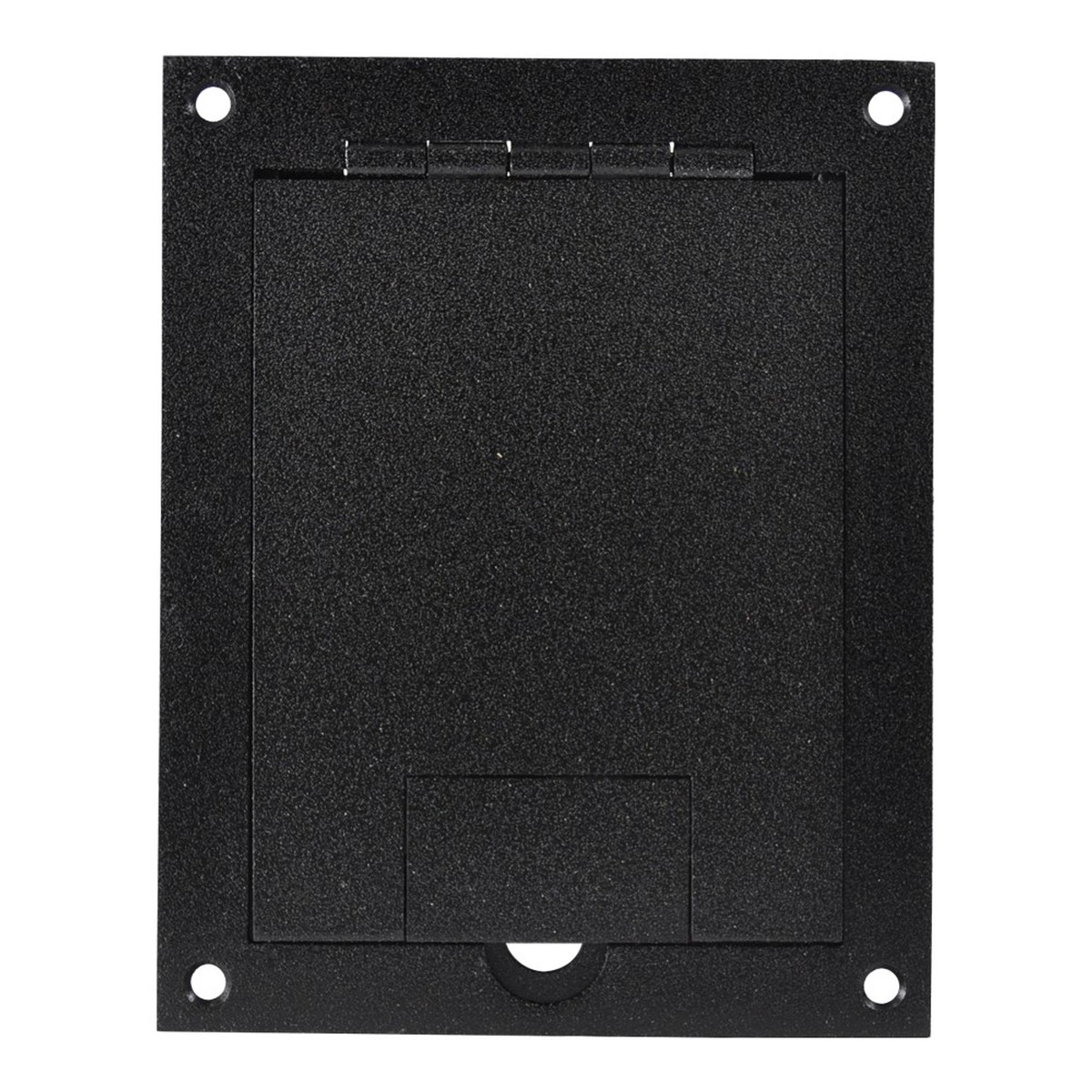

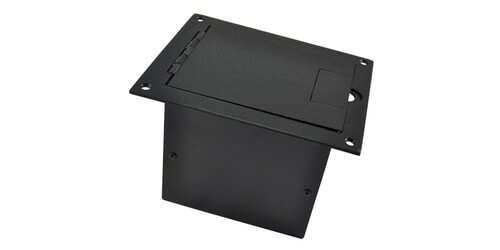

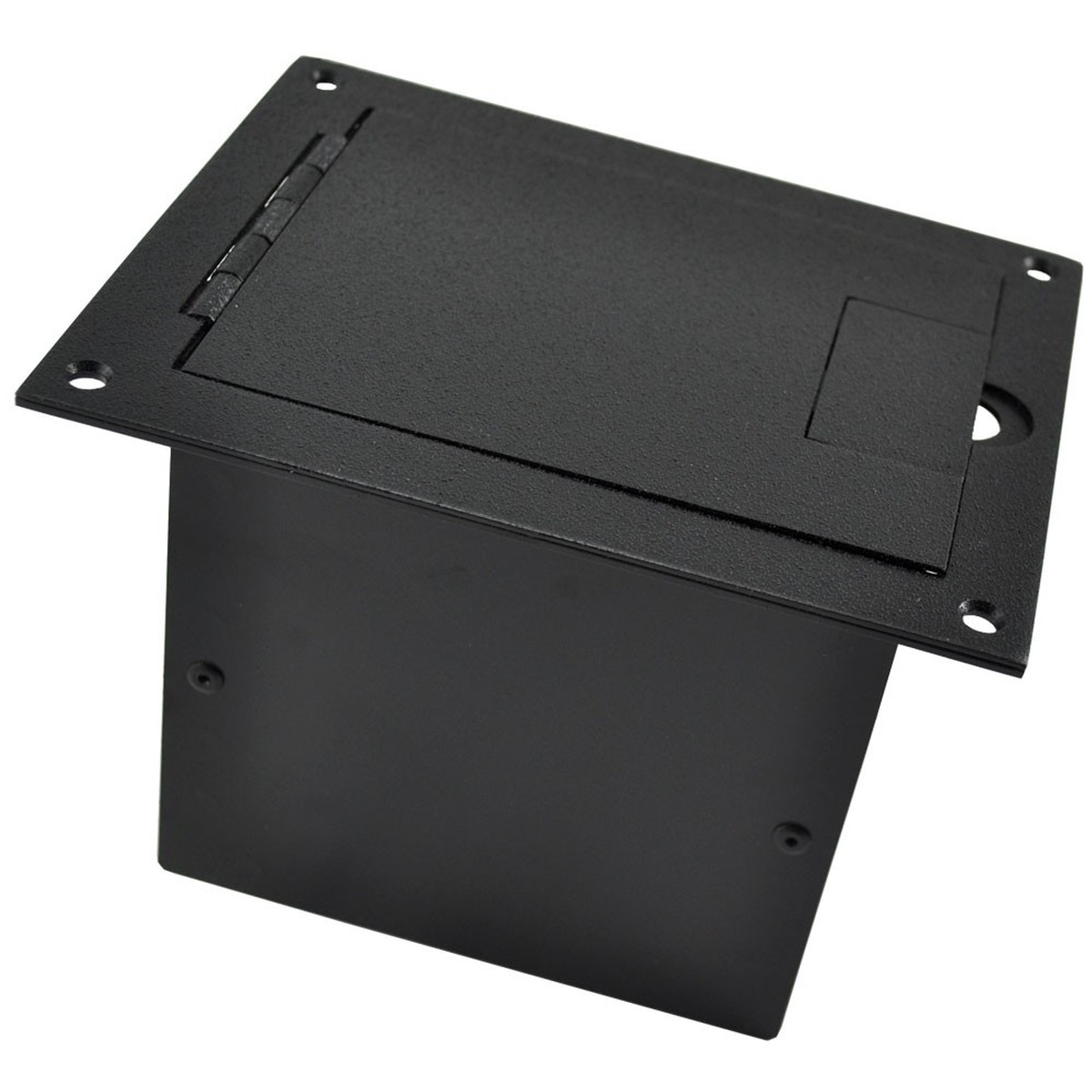

FSR FL-1200-BLK
Small Stage Floor Box with Hinged Door in Black Sandtex
- Floor box with hinged cover
- Black sandtex painted
- 1 knockout on rear and 2 on the bottom, 1/2" or 3/4"
- Dimensions: Top: 6" X 4-3/4" X 1/8"
Description
The FSR-1200-BLK is a raised access floor box used in applications such as stage and computer floors, it also features a black sandtex painted hinged cover. The cover completely opens when needed but also has a small door for when cables are being used. This is the smallest stage box that FSR makes, it is perfect when you just need a power or a couple XLR connections. The box is rugged, the one piece all welded design will hold up to the rigors and foot traffic.

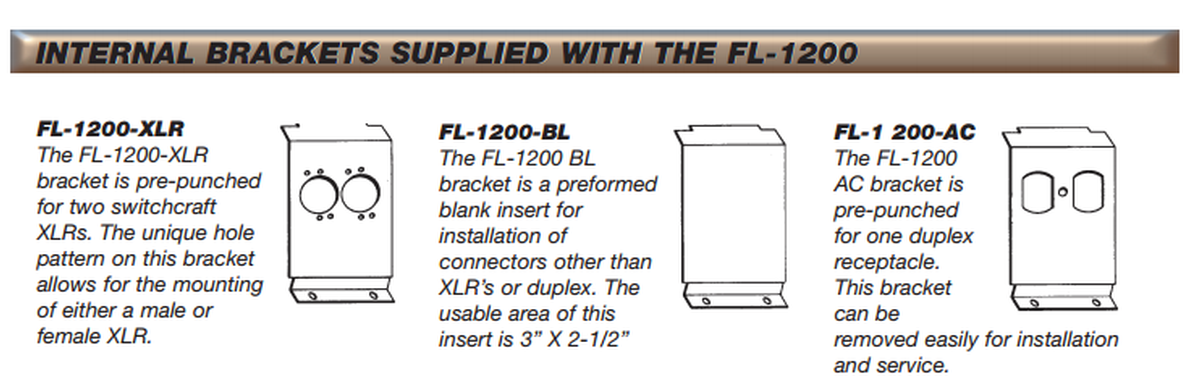

The FL-1200 is shipped with three different insert plates. One of the plates has provision for two Switchcraft male or female connectors. The second plate is punched out for one duplex receptical. The third plate is blank and can be punched by the contractor or manufactured by FSR inc.
Specifications
- Dimensions: Box: 4-5/8" X 3-3/8" X 4-1/2"
- Cutout dimensions: 4-3/4" X 3-1/2"
- Weight: 2.75lbs
Downloads
