FSR FL-500P-BRS-C

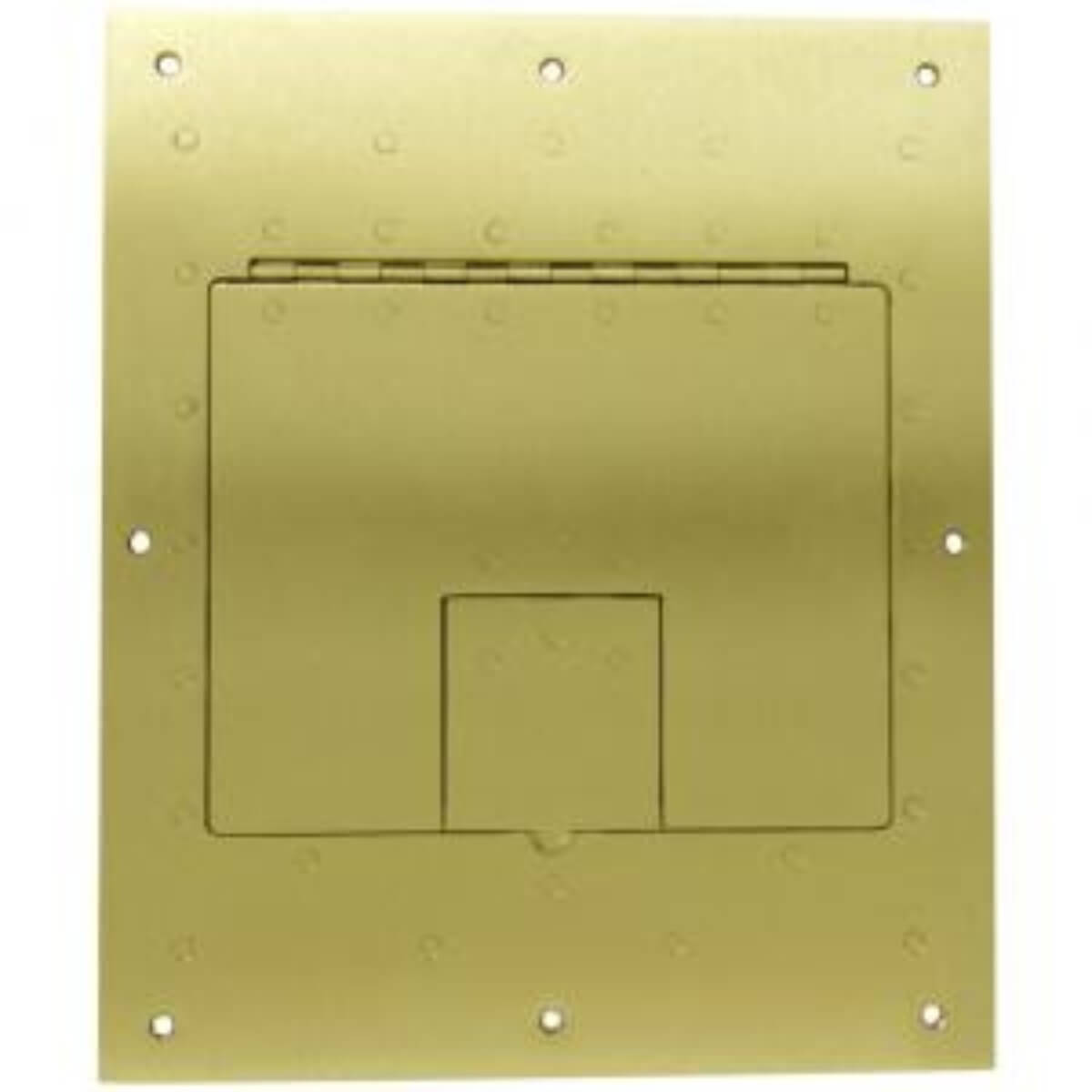

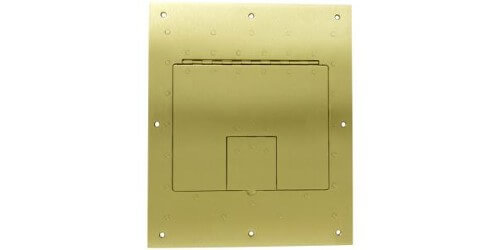

Floor Box Cover for FL-500P Floor Boxes Brass Color (No Flange) with Hinged Door
- Size: Box: 10" x 12" x depth
- Cover: 10.5" x 12.5" x .125"
- Flanging: Height: .25" or .5"
- Material: Brass
Description
This high quality FSR FL-500P-BRS-C Cover has a 1/4" Brass Carpet Flange with our unique tool-less lift off door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Lift-off full access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
Specifications
- Max Load Capacities: FL-500P U-Access Cover with 1/4" Trim: 1,300 lbs.
- FL-500P U-Access Cover with 1/2" Trim: 1,500 lbs.
- FL-500P solid U-Access Cover: 2,500 lbs
