FSR HD-HWP-Tx
2-Gang HDBaseT HDMI White Wall Plate Transmitter, 4K60 - 330'

Description

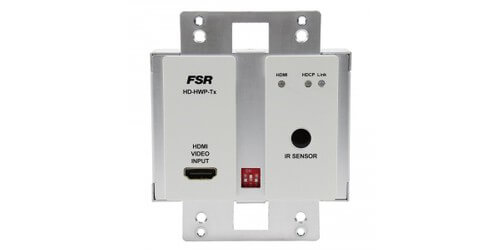

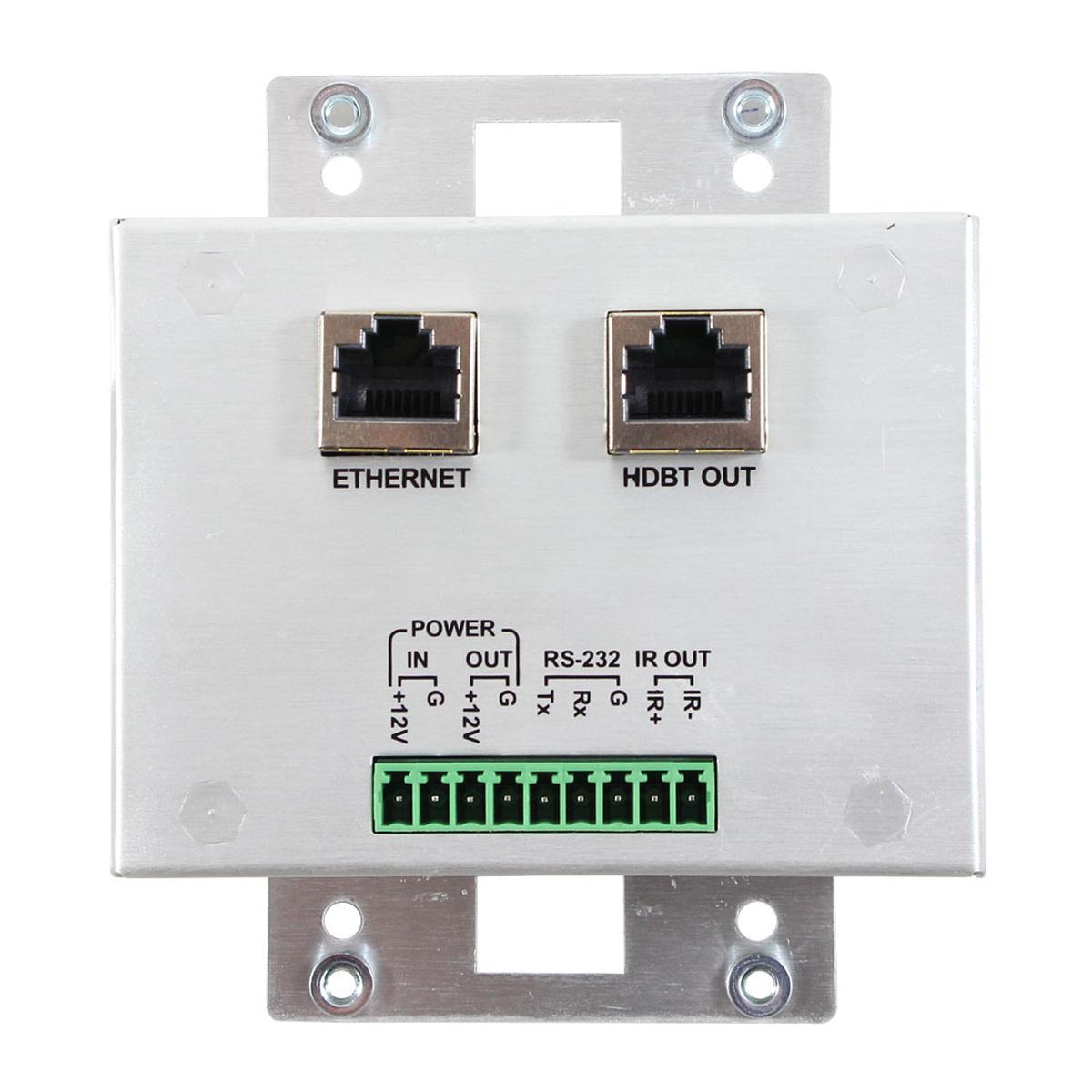

The HD-HWP-Tx from FSR is a high-performance 2-gang Decora style HDBaseT HDMI Wall Plate Transmitter. This is a true 5-Play device that transmits HD Video resolutions up to 4K@60Hz 4:2:0, Audio, Bi-Directional Control (IR & RS-232), Ethernet, and Power via 1 CAT6a shielded cable up to 330'. The front of the wall plate has an HDMI and IR reader window. The HD-HWP-Tx was designed to work with any of FSR's 100 Meter (330') HDBaseT Receivers and receives its power from them as well. through PoH (Power over HDBaseT). The backside of the wall plate contains Ethernet & HDBaseT RJ-45 Ports as well as captive screw terminals for IR-Out, RS-232, and +12v In/Out. This transmitter does not come with a power supply and will be needed to be powered through a compatible FSR HDBaseT receiver.

The Ethernet and +12v Out have been designed to be used with FSR’s FLEX LT-200 3.5” Color Touch Panel (not included) with integrated control system which can communicate back to your rack along with video, audio, and power all over 1 CAT-6A Shielded Cable up to 330'. Control of this transmitter can either be through RS-232 or IR in a very simple and easy setup. The RS-232 port can be used as a pass-through to control a device connected to the Transmitter from the Receiver or vice versa. Making this an ideal solution for sending long distance HD video signals over a single cable, such as in digital signage type applications in bars/restaurants, shopping centers, and conference room setups. Comes backed by a 3 year warranty from FSR.

Specifications

• Cable Distance & Resolutions using Cat-5e / Cat6: 1080p @60 Hz (36 bpp) up to 330' & 1080p @60 Hz (48 bpp) or 3D and 4k 2160p (3840x2160 @ 30 Hz) up to 229'
• Cable Distance & Resolutions using Cat-6a / Cat7: 1080p @60 Hz (48 bpp) or 3D and 4k 2160p (3840x2160 @ 30 Hz) up to 330'
• Ports: Ethernet, RS-232, IR, Power
• Control: RS-232, IR
• Power Input: DC 12V 2A
• Form Factor: 2 Gang Decora Style Wall Plate
• Warranty: 3 Years

Downloads

• FSR HD-HWP-Tx Specifications (PDF)
• FSR HD-HWP-Tx Manual (PDF)
