FSR HV-1000
HuddleVU 4 User Tabletop Collaboration Kit 4 HDMI, 3AC, USB Charge
- 4 show me buttons
- Automatically turns on the flat panel or projector when an HDMI cable is plugged in
- Up to 4 users can present with a push of a button
- Includes table box, 4 HDMI cables, switcher, controller, under table mount
-Timothy J.
Description

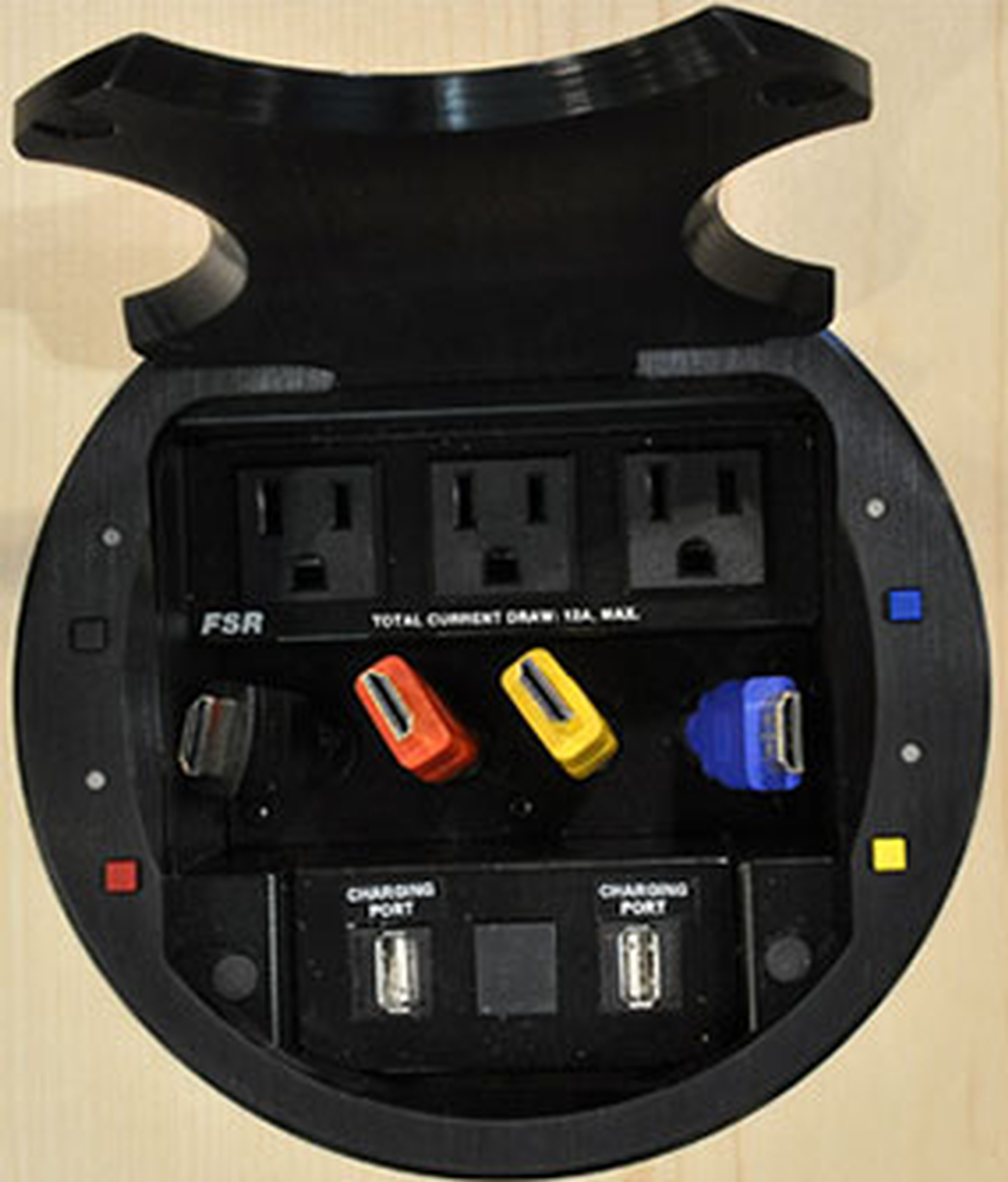

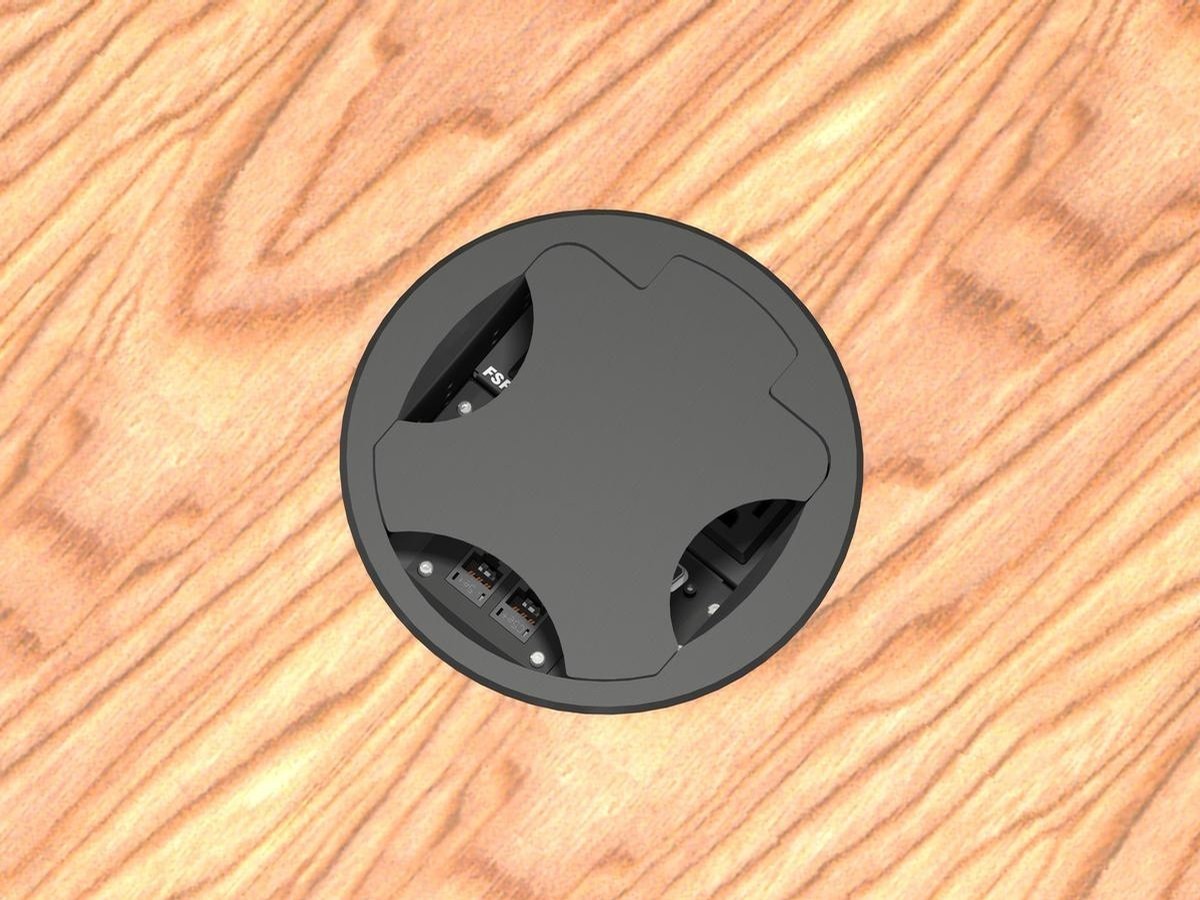

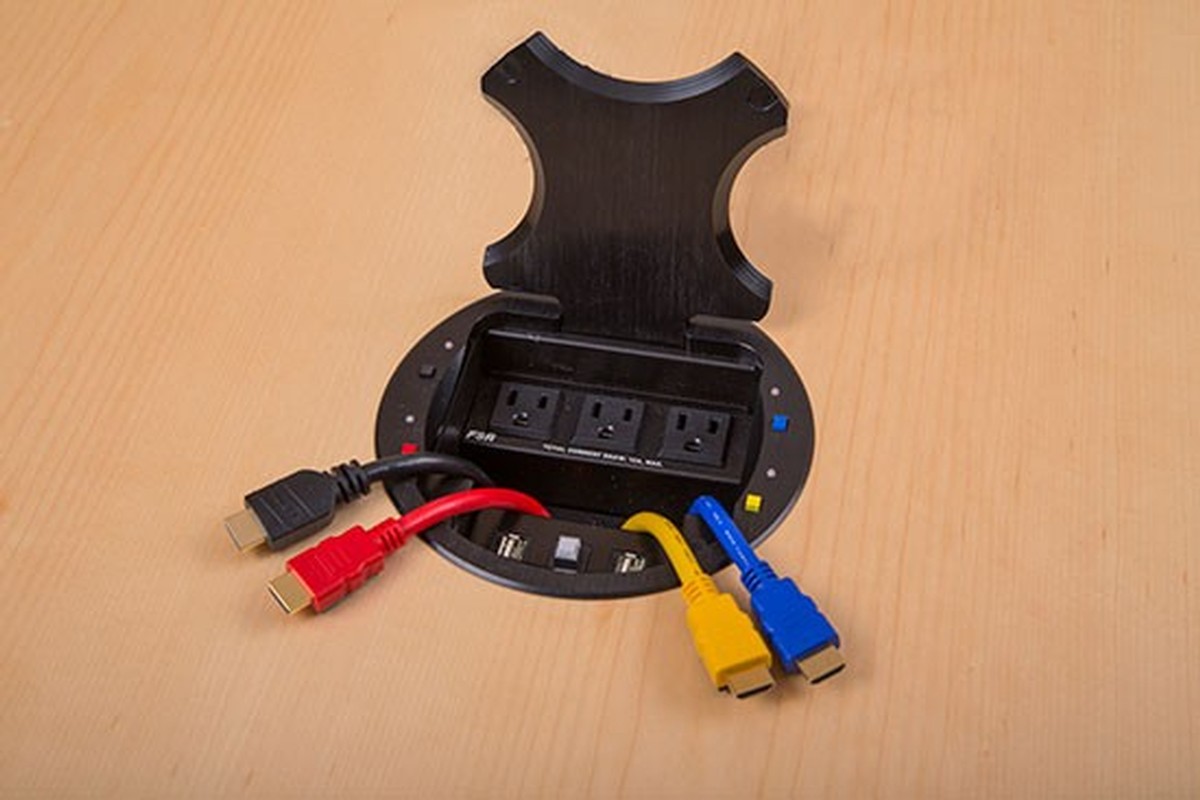

The FSR HV-1000 is a collaboration system designed specifically for your team meetings. This table box features four 6' pull out HDMI cables, 3 power sockets, and 2 USB charging ports. The box mounts flush in your table and has a stylish look with its black brushed aluminum finish, the lid has 3 openings in it which allows the cables to be used with the lid shut for a super sleek appearance when in use. What sets this table box apart from the competition is that it has 4 color coded "show me" buttons on it, this allows 1 to 4 users to press their own button and show what is on their screen. Included is a power control box and an HDMI switcher with under table mount, this creates the auto switching and also allows for only 1 HDMI cable to be ran to your flat panel or projector.

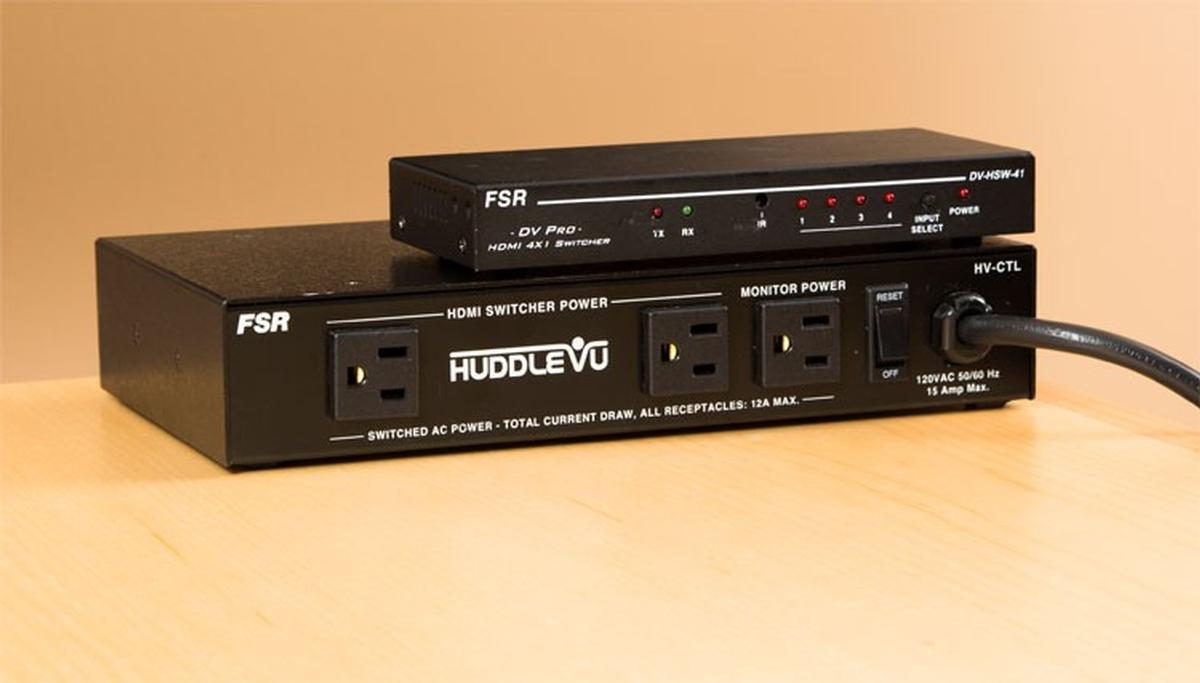

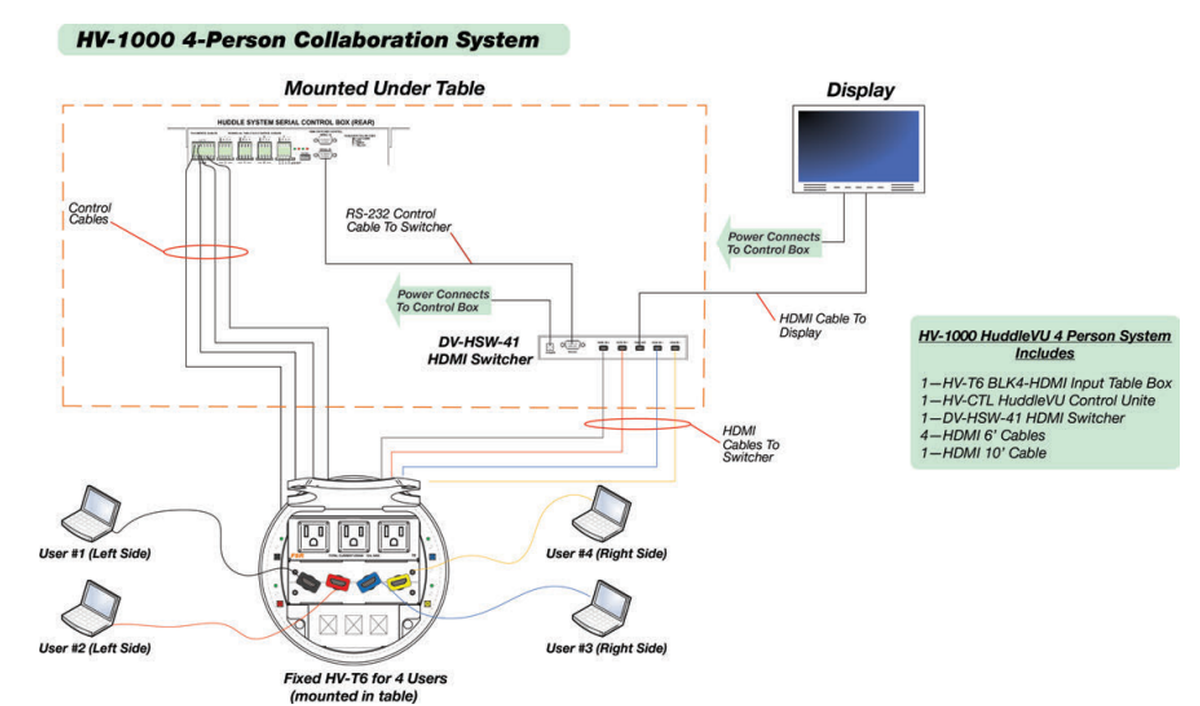

The system includes the tables box, controller, switcher, five 6' control cables, four 6' HDMI cables, and one 10' HDMI cable. To install cut the hole in your table, drop the box in, and secure with the included brackets. Run 4 RS-232 cables from the table box to the controller, run 1 RS-232 cable from the control box to the switcher, run 4 HDMI cables from the table box to the switcher, and run 1 HDMI cable from the switcher to your flat panel or projector. The control box is the central power point for all your system components, the power from the display and the switcher plugs into the control box. If your panel is going to be installed on your wall and not be at the table and you want the system to still automatically turn the TV on when an HDMI cable is plugged in, then you will need to add the optional IT-SACWP wall plate.
The FSR HV-1000 is an ideal choice when you need easy to use show me buttons that work when pressed from a central location.
Specifications
- No software or programming required
- Perfect for conference rooms, classrooms, libraries, and training rooms
- 9' power cable
- Warranty: Table box 1 year, switcher and controller is 3 years
