FSR SF4-CPT-QAC-ALM
4" Round Poke Through Floor Box with 4 Power - Silver

Description

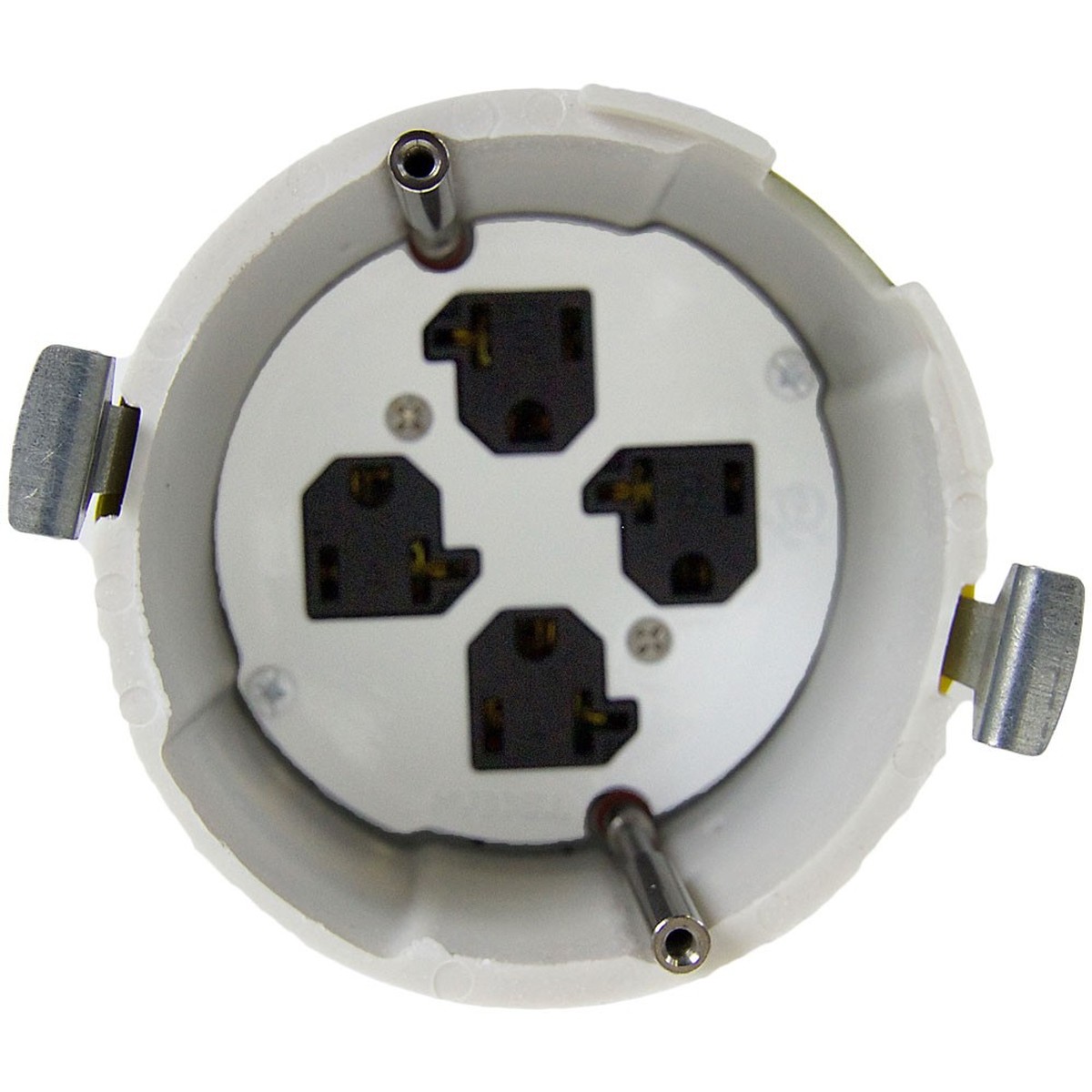

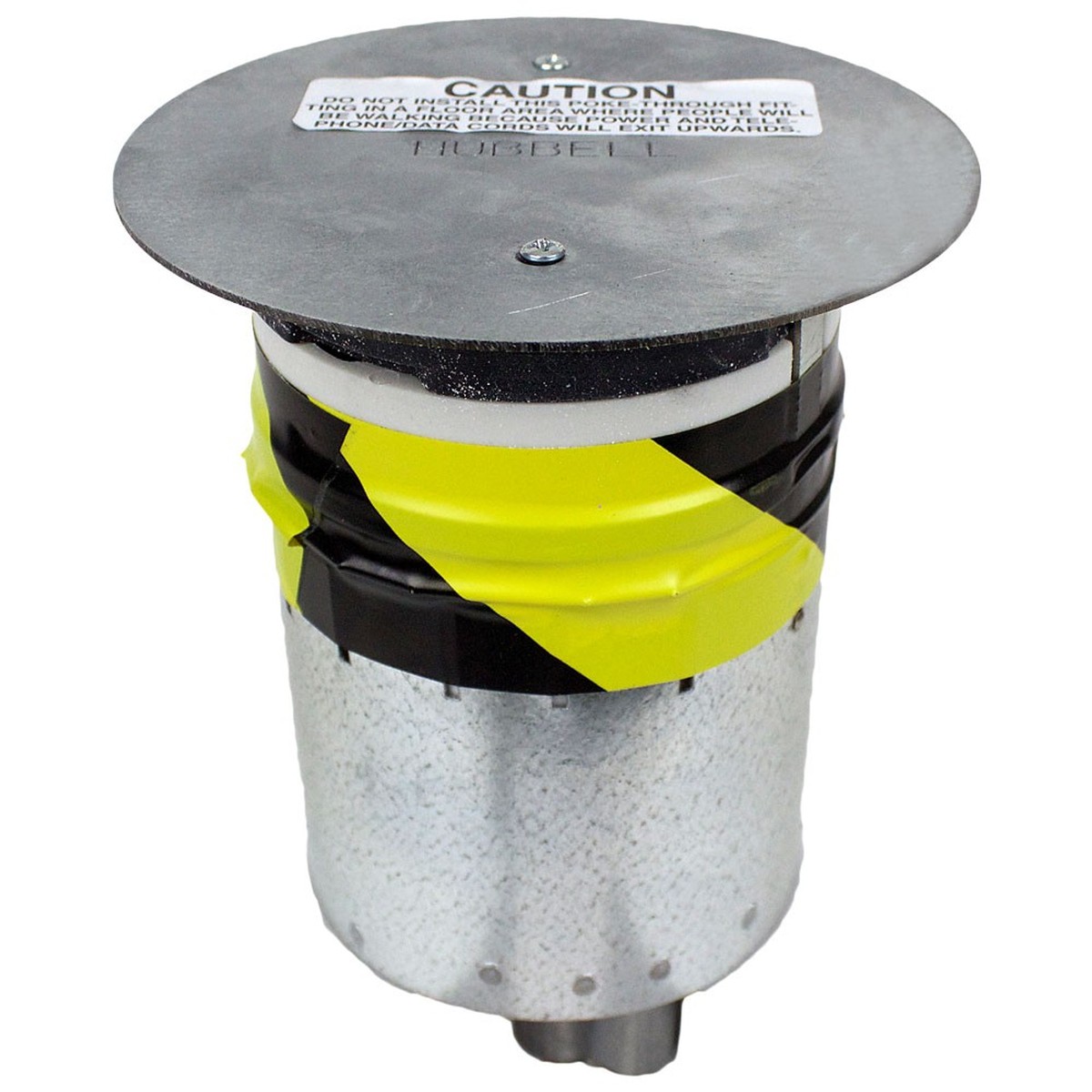

The FSR SF4-CPT-QAC-ALM is a 4" round floor box poke through with a brushed aluminum finish cover, inside you will find 4 power outlets.  The box is fire rated and UL scrub water rated, while the top flange is only .12" thick and is ADA compliant. The entire cover swings open 180 degrees while 2 additional small doors in the cover open to allow cables to pass out of the top.  The 4 power outlets in the box are 3" below the top, and there is one 3/4" conduit for power and two 1/2" conduits for low voltage.

The FSR SF4-CPT-QAC-ALM is a perfect solution when you don't need a lot of connections and want a high quality floor box that doesn't take up much floor space.

Specifications

• UL514A for scrub water rated
• .12" thick flange is ADA compliant

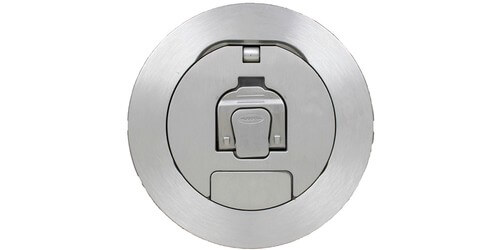

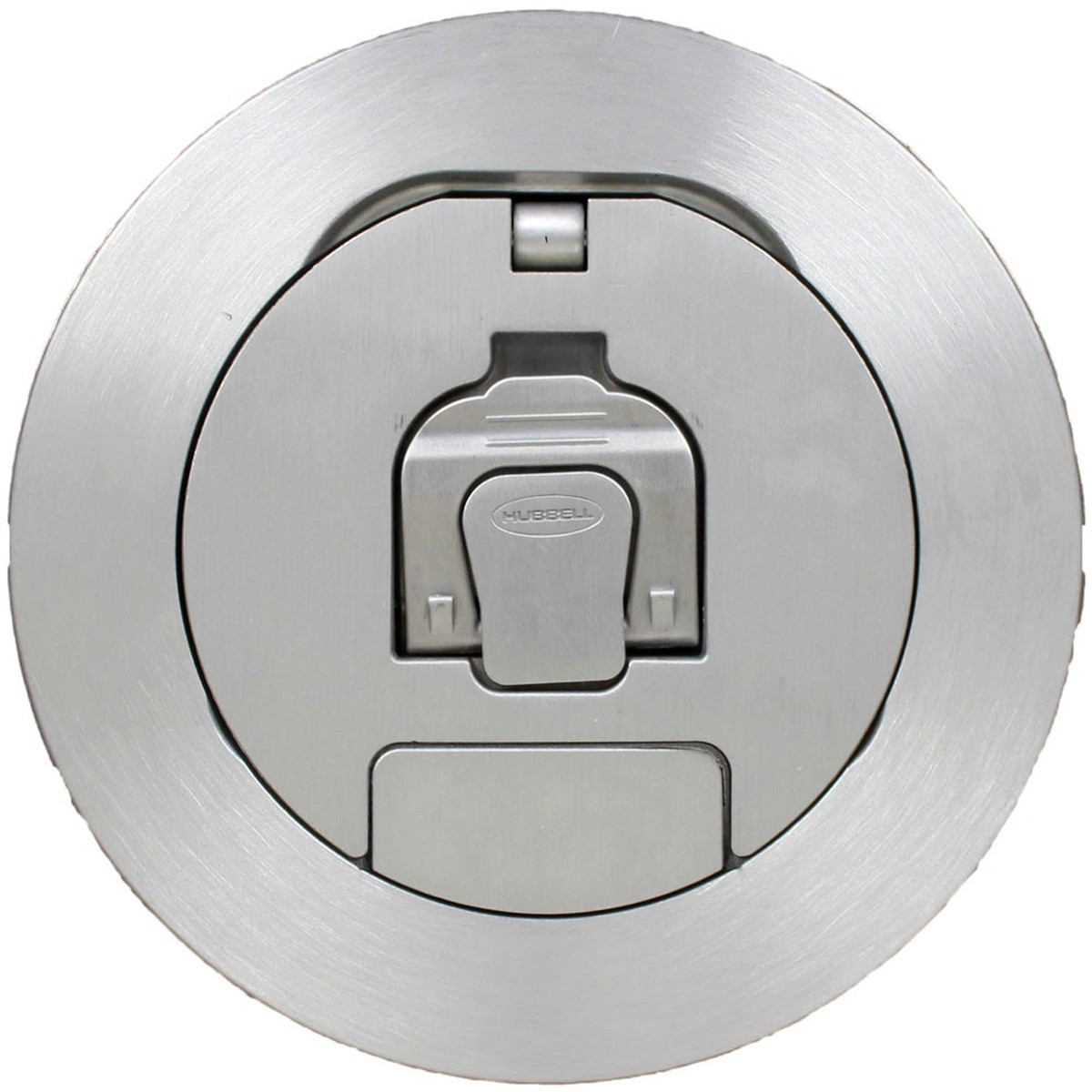

• Cover swings open 180 degrees, 2 additional small doors in the cover open to allow cable pass through

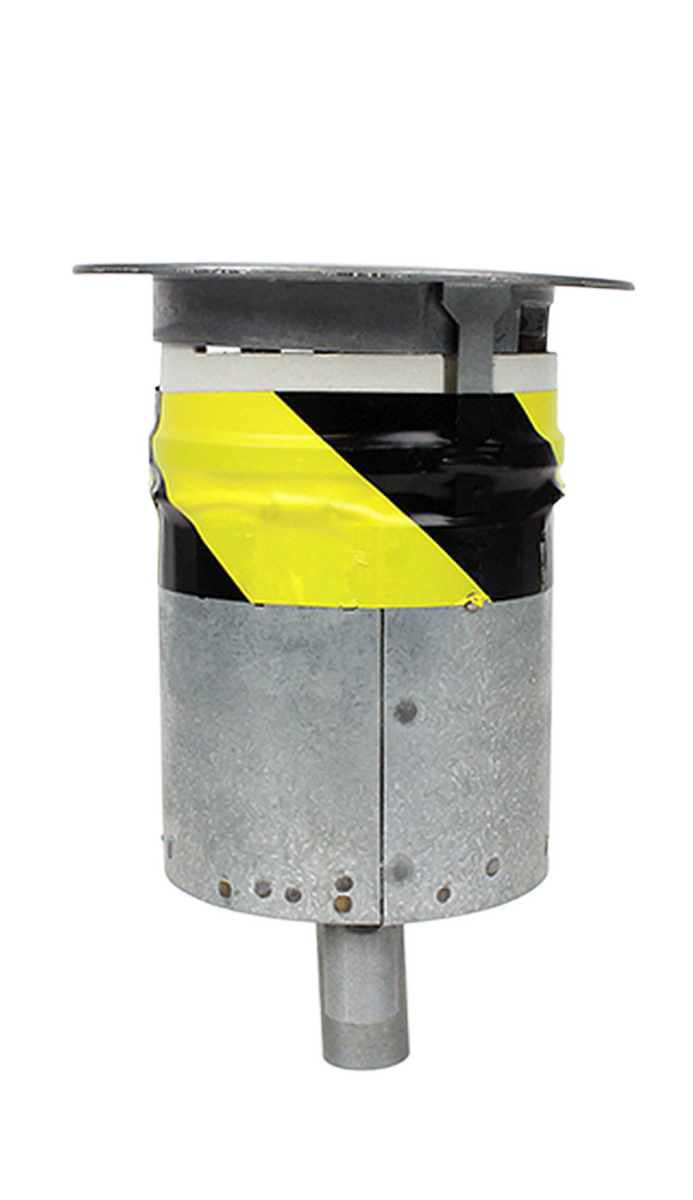

• Pre-pour tubes remove the need for core hole drilling
• One 3/4" conduit for power and two 1/2" conduits for low voltage
• Bezel dimensions: 5.53"
• Depth: 8.08"
• Warranty: 1 year

Downloads

• FSR SF4-CPT-QAC-ALM Specifications (PDF)
