FSR SF4-PT-BLK
4" Round Poke Through Floor Box - Black
Manufacturer SKU: 17778
Satisfaction Guaranteed!
MSRP: $505.00
Our Price:
$491.50
Top SF4-PT-BLK Specifications
- Color: Black
- 4" round core hole floor box
- Fire rated
- UL514A for scrub water rated
"Great support and help from technical support!"
-Patrick S.
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

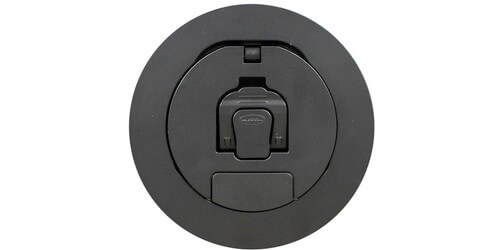

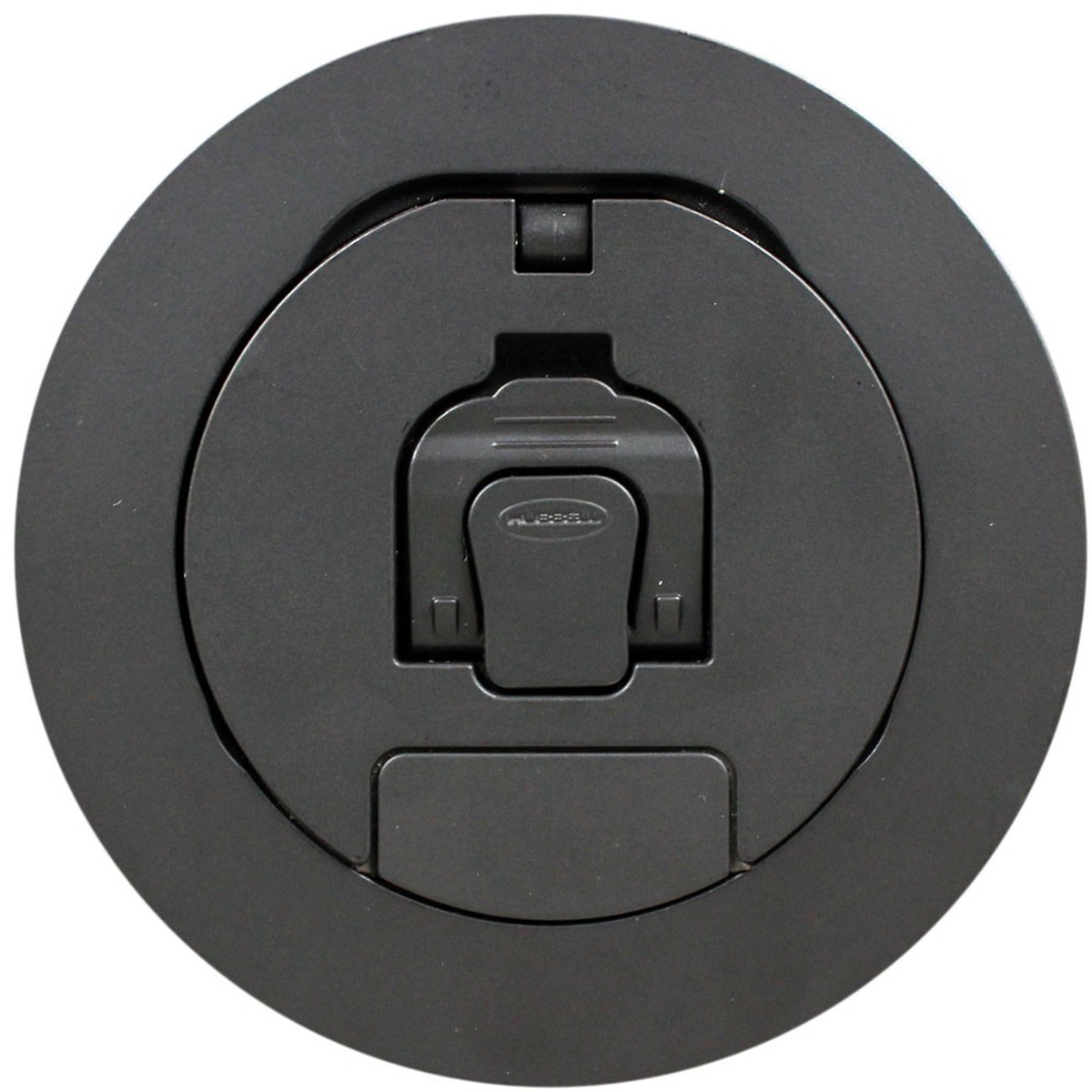

The FSR SF4-PT-BLK is a 4" round floor box poke through with a brushed black finish cover. The box is fire rated and UL scrub water rated, while the top flange is only .12" thick and is ADA compliant. The entire cover swings open 180 degrees while 2 additional small doors in the cover open to allow cables to pass out of the top.
The FSR SF4-PT-BLK is empty and you will need to choose between the optionally purchased SF4-SPD2S sub plate with a decora opening and 2 keystone jacks, or the SF4-SPD with just a decora opening.
Specifications
- .12" thick flange is ADA compliant
- Cover swings open 180 degrees, 2 additional small doors in the cover open to allow cable pass through

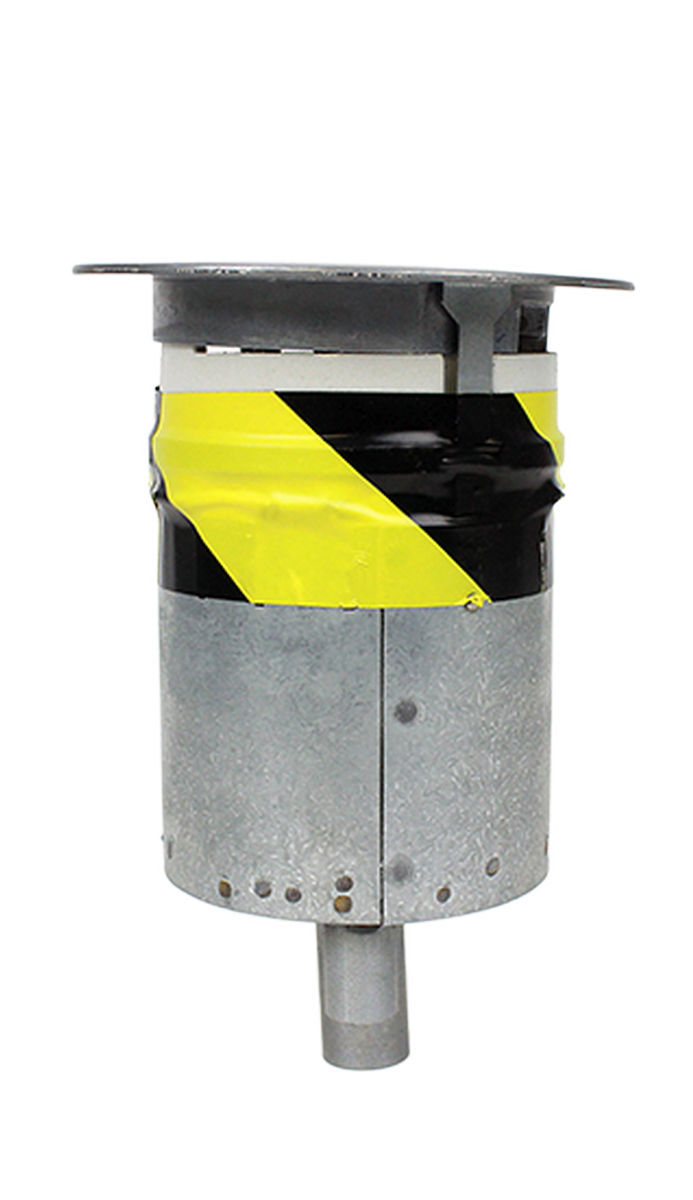

- Pre-pour tubes remove the need for core hole drilling
- One 3/4" conduit for power and two 1/2" conduits for low voltage
- 3" of space between the top and connections
- Bezel dimensions: 5.53"
- Depth: 8.08"
- Includes: Cover, junction box, and dividers
- Warranty: 1 year
Downloads
Reviews
There are currently no reviews for this product.
Write a Review
Accessories
This box requires a sub plate, please choose from one of the sub plates below.
FSR SF4-SPD
SF4 Sub Plate with 1 Decora Opening
Your Price: $19.95
FSR SF4-SPD2S
SF4 Sub Plate with 1 Decora and 2 Keystone Openings
Your Price: $19.95
