FSR SF6-CPT-DD-BRS
SmartFit 6" Poke Through 2 AC, 2 Decora, UL 514A - Brass
Manufacturer SKU: 17344
Satisfaction Guaranteed!
MSRP: $769.00
Our Price:
$718.95
Top SF6-CPT-DD-BRS Specifications
- 6" poke thru floor box for core holes
- Color: Brass
- 2 hour fire rated
- ADA compliant
"Quick and easy to find what I was looking for."
-Brandon K.
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

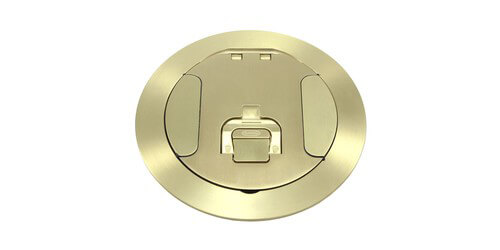

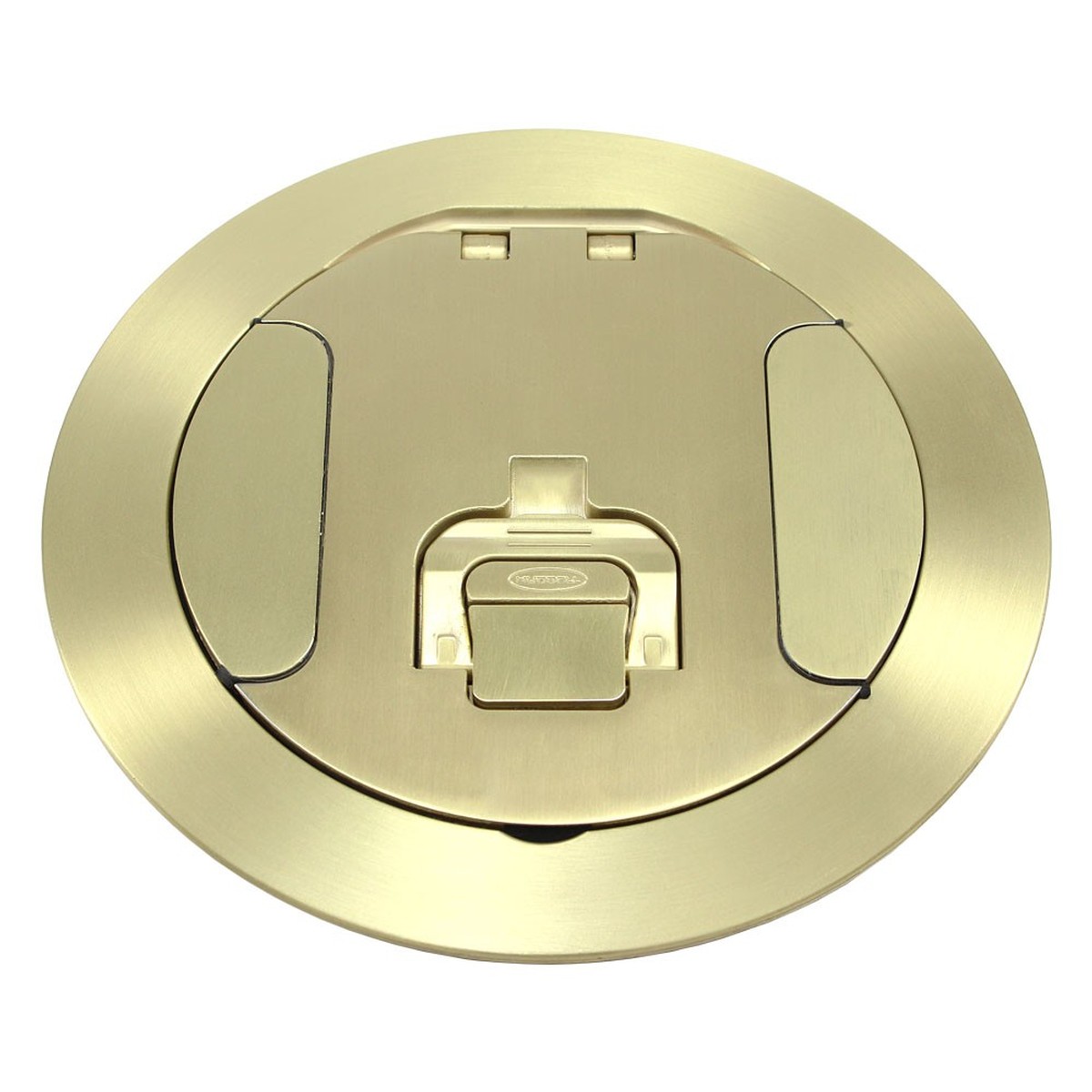

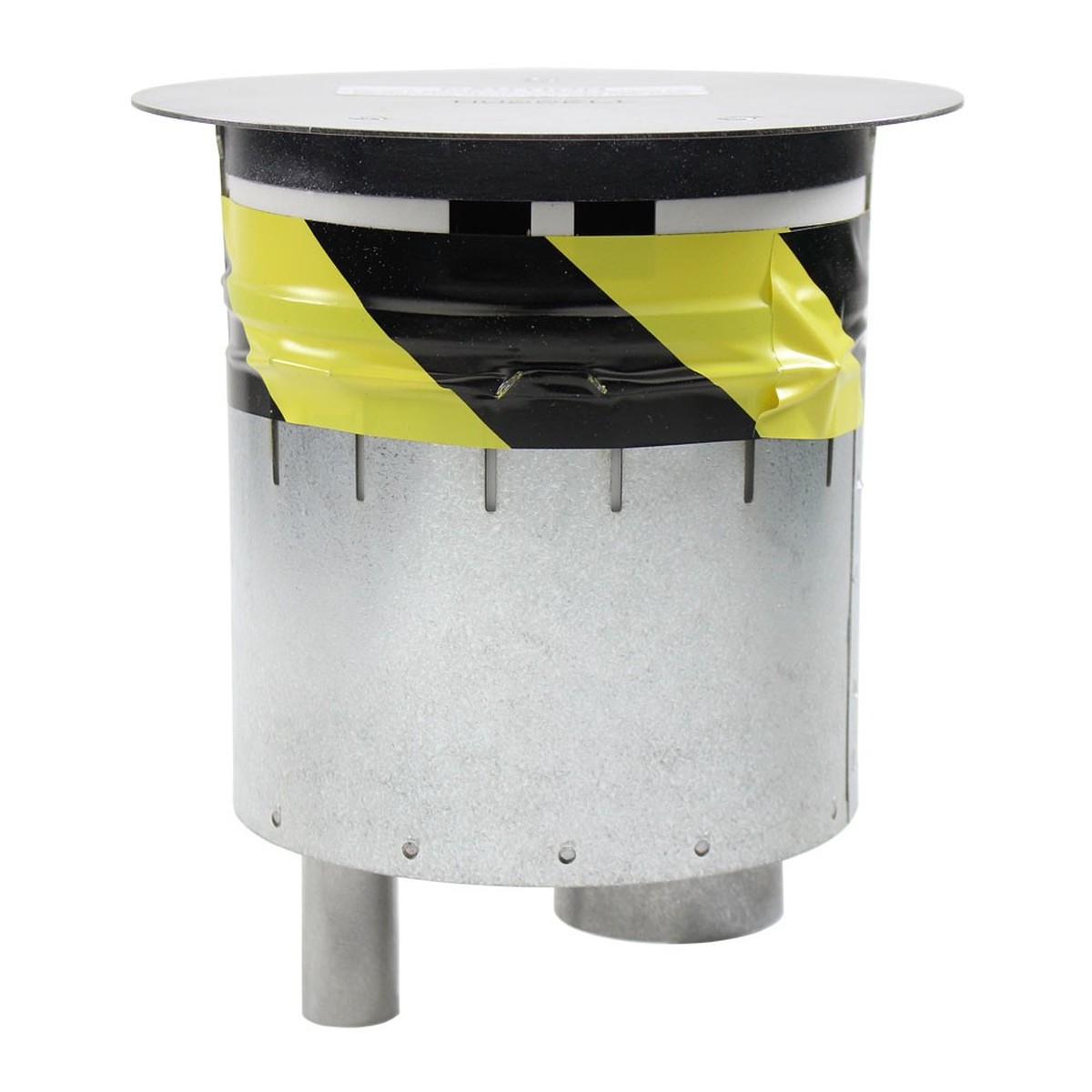

The FSR SF6-CPT-DD-BRS is a 6" fire rated poke-thru floor box with brass cover for core holes provide an elegant look in any floor. The entire cover door swings open 180° and the two smaller cable access doors fold down for cable egress while the cover door is secure, the drop down cables access doors reduce trip hazards.

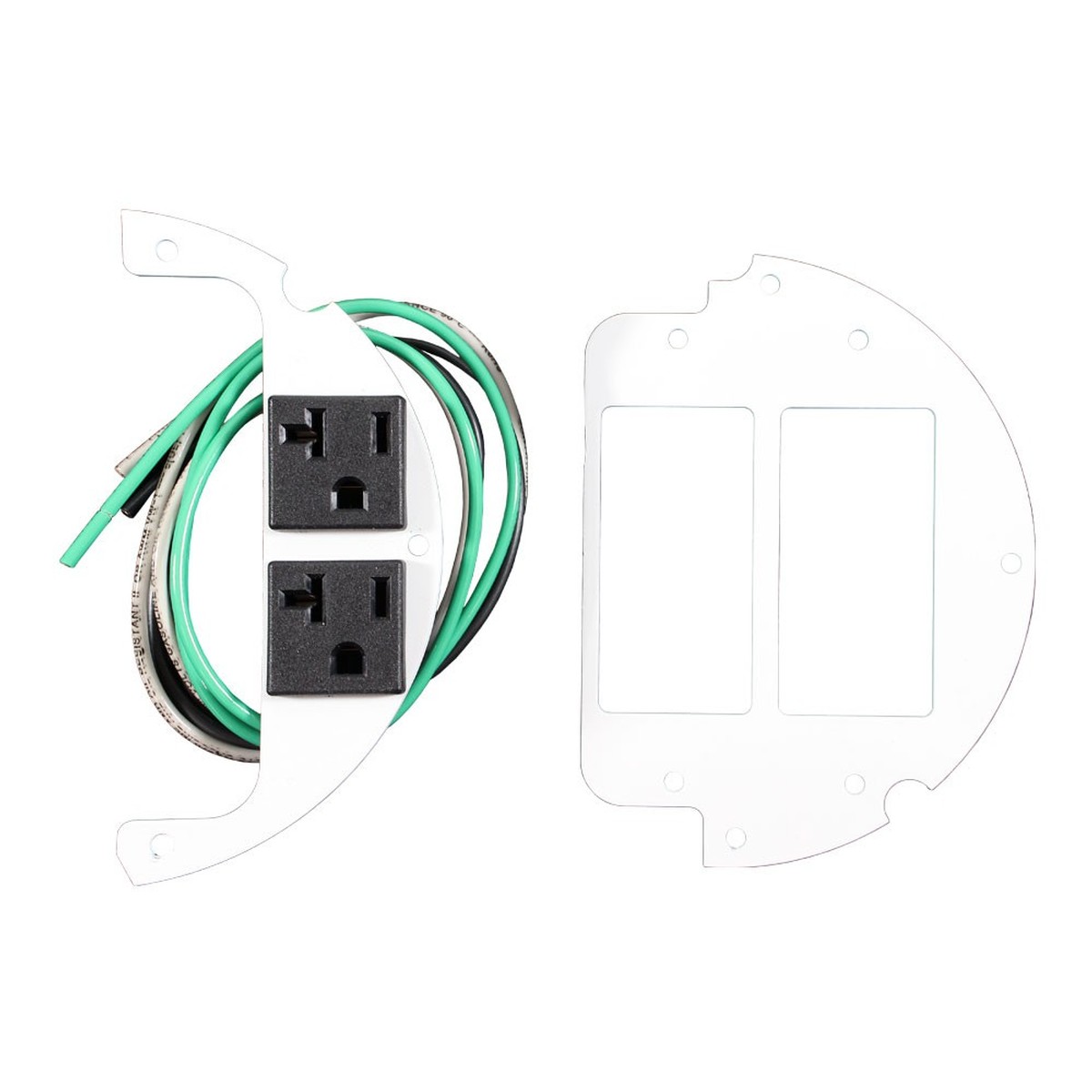

Includes: 6” floor fitting, Dual Decora opening subplate, Dual 20A pre-wired AC outlet subplate, Cover Assembly, and Junction box.
Use the optional SF6-PT pre-pour sleeve first so you don't have to drill out the concrete after.
Specifications
- Scrub water rated
- Knockouts: (1) 2" KO, and (1) 1.75" KO
- Power wiring junction box included
- 1000 lb. cover load rating with 2x safety factor
- Cover is 7.5" round
Reviews
There are currently no reviews for this product.
Write a Review
Accessories
FSR SF6-PS
Pre Pour Sleeve for SmartFit 6"
Your Price: $77.95
