FSR T3-AC2HW-SQBRS

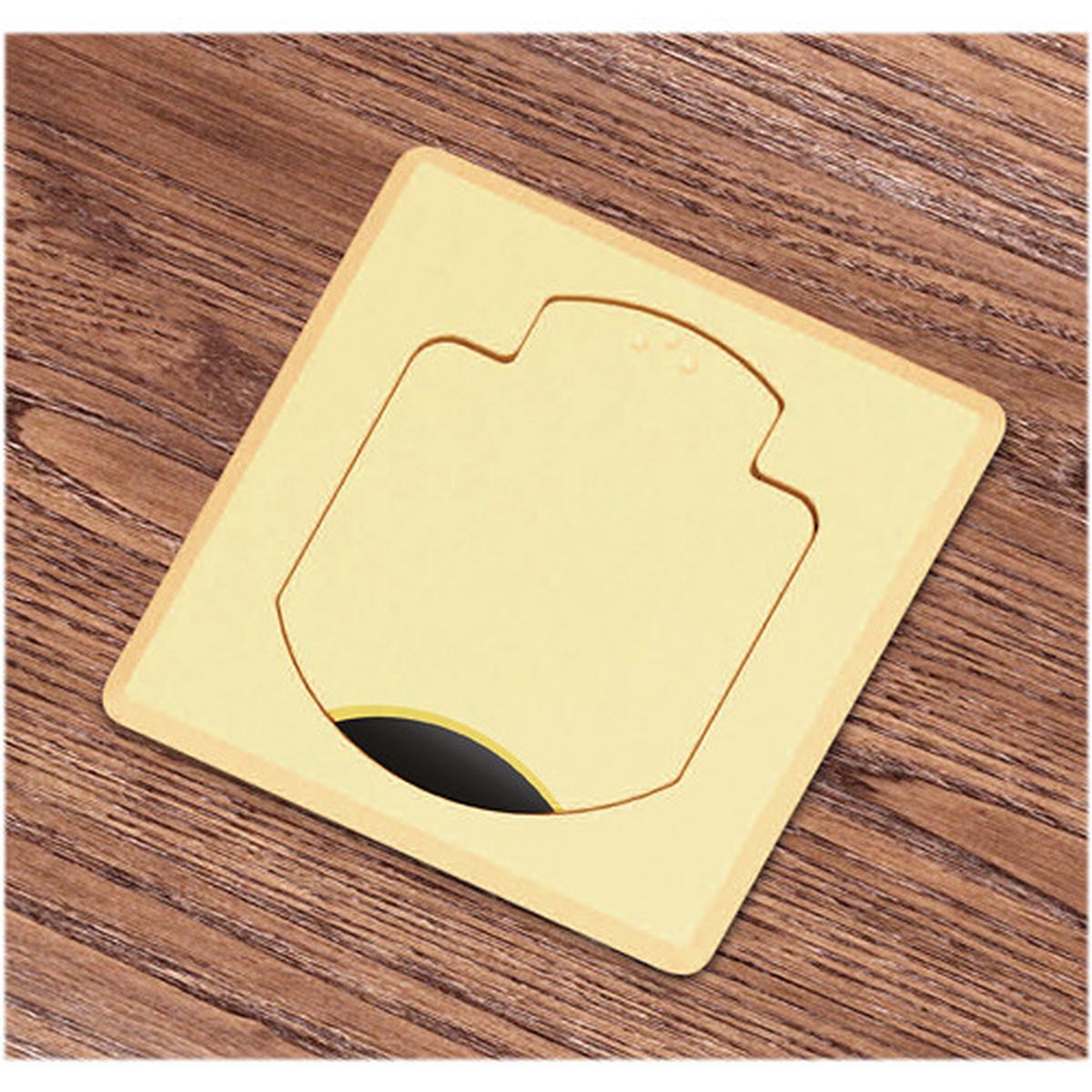

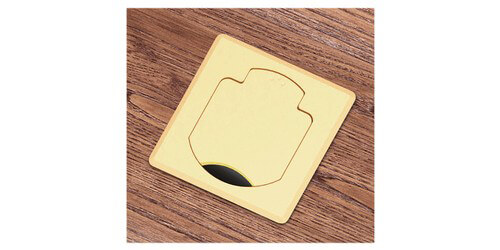

Table Box w/ 2 Hardwired A/C and 2 RJ45 - Square - Brass

Description

The T3-AC2HW featured in Square Brass is the Hardwired version that can be connected by an Electrician. A convenient option to access network drops, ac power sources and video/audio displays is required. The small footprint provides a seamless complement to any style.

It allows quick, convenient access to AC power and network access for up to two computers or laptops. The keystone areas can be populated with a variety of connectors including network, telephone, RCA or mini stereo audio, push buttons and much more to suit unlimited applications. Alternate style snap in keystone connectors and blanks are available separately.

Applications include: desks, lecterns, lab tables, boardroom tables, control consoles and classrooms.

Specifications

• Can be easily configured
• Built to Last CNC Milled Solid Cover
• Rugged 16 gauge-galvanized steel Chassis
• Cable Strain Relief Attach Point
• Cover Opens 96 Degrees so it Stays Open
• Rubber Grommets for quiet closure
• 3" installation screws
• 2 AC Power outlets (pre-mounted) with 9' integral 14 GA SJT power cord
• The T3-AC2HW hardwired versions do not include a power cord. Short leads and wire nuts are provided for direct AC connection
• 2 RJ-45 pass through connector (pre-mounted)

Downloads

• FSR T3-AC2HW-SQBRS Specifications (PDF)
