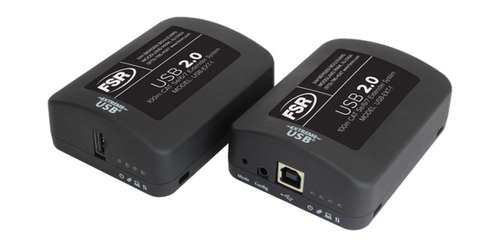

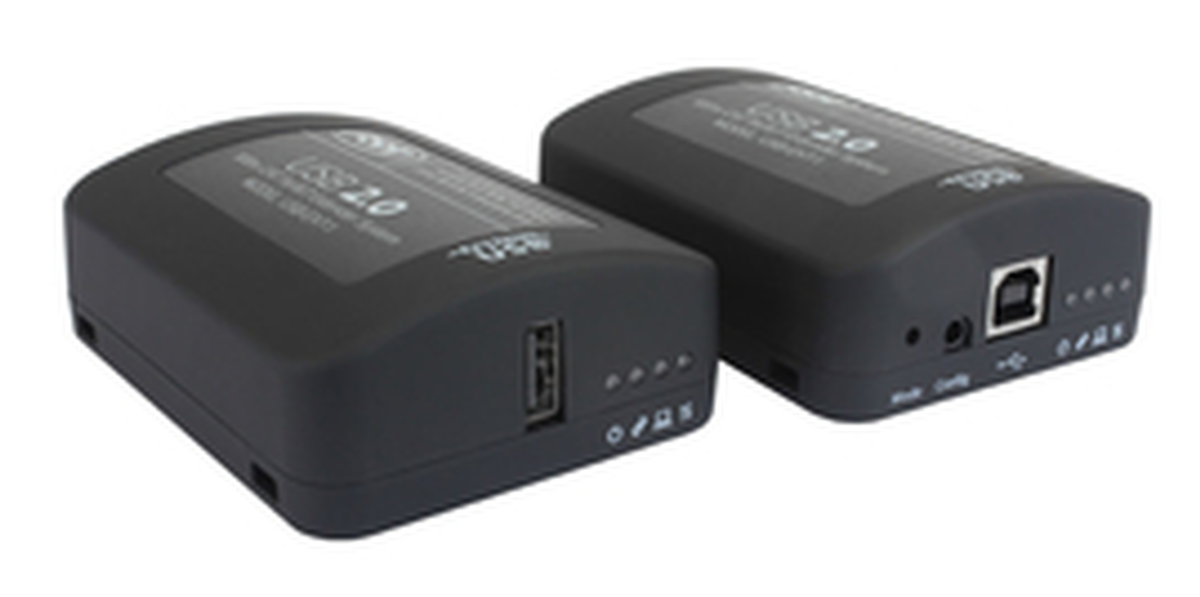

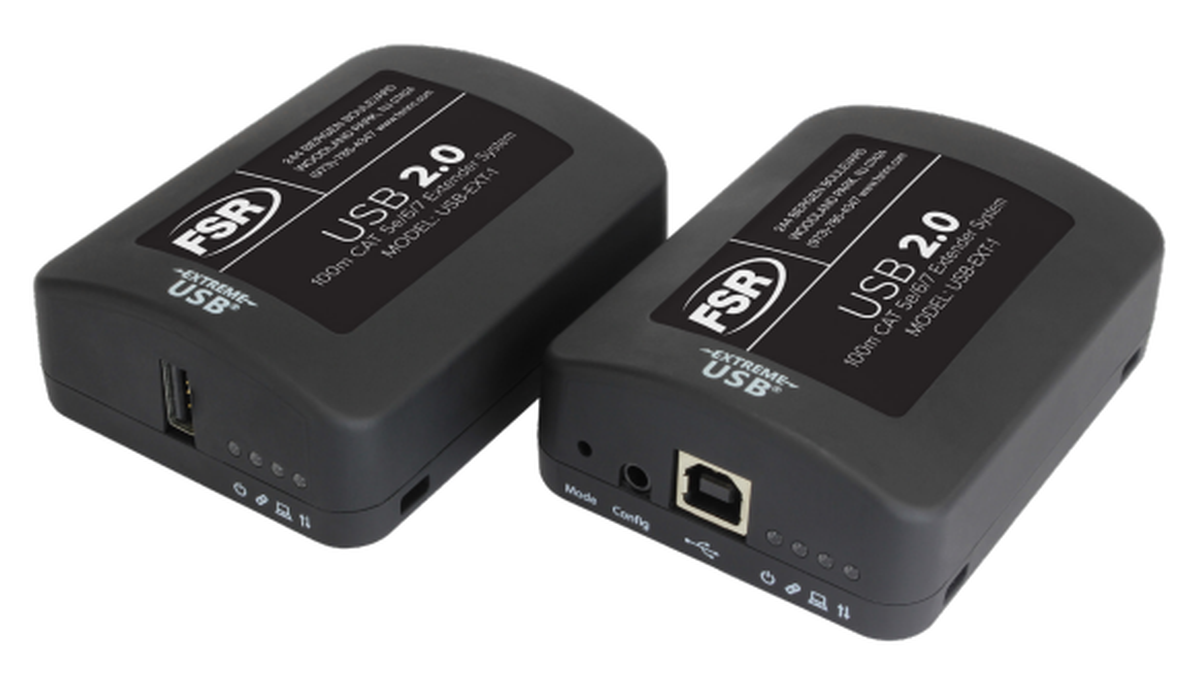

FSR USB-EXT-1
1-Port FlexPower, 100m

Description

The USB-EXT-1 extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 with the option to power either the Host Extender or Device Extender. It is ideal for extending USB peripherals including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras and any other USB device.

Featuring

• Flexible power: Connect the power adapter to either the Host or Device Extender
• Supplies up to 1 Amp to USB port
• Mass Storage Acceleration for USB 2.0 device bulk transfers
• Supports throughputs of up to 480 Mbps
• Transparent USB extension
• Plug and play; no software drivers required
• Works with all major operating systems: Windows®, macOS and Linux

Specifications

• POWER
• Power Supply: 00-240V AC Input, 24V 1A DC Output included

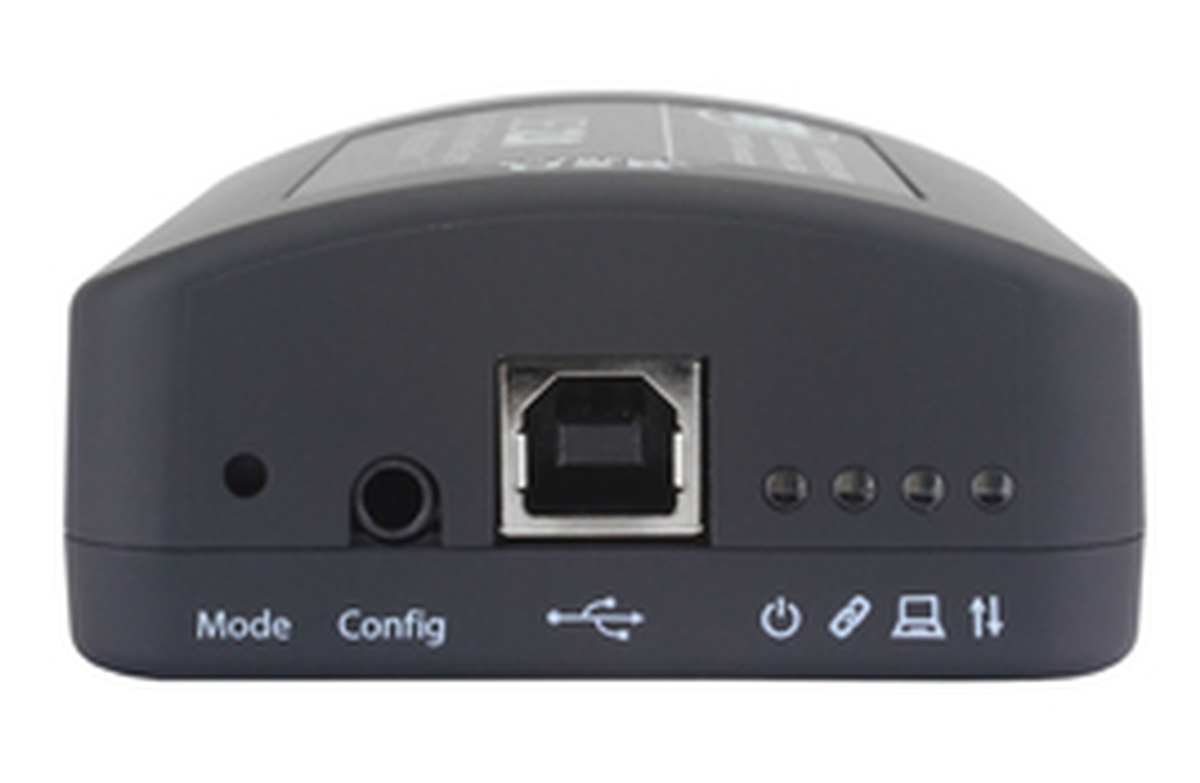

• LOCAL EXTENDER
• USB Connector: 1 x USB Type B Receptacle
• Link Connector: 1 x RJ45
• Dimensions: 2.6" x 3.4" x 1.2"
• Mounting: Slots for Cable Ties
• Enclosure Material: Black ABS with Rubberized Coating

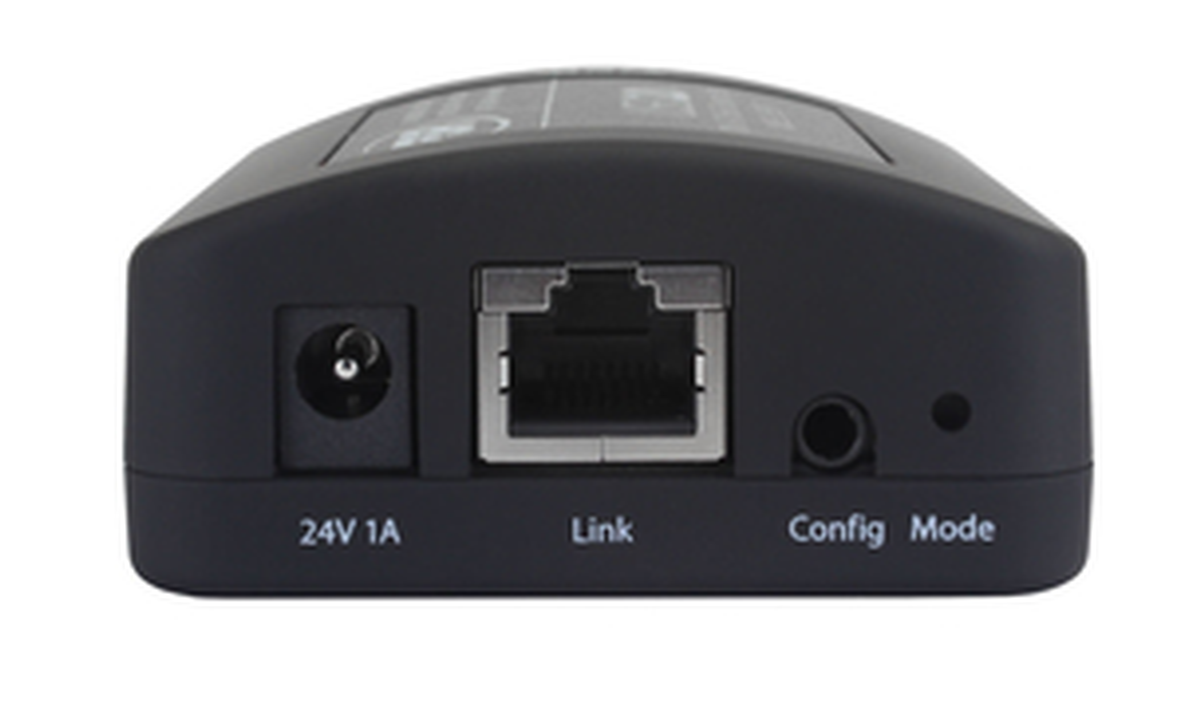

• REMOTE EXTENDER
• USB Connector: 1 x USB Type A Receptacle
• Link Connector: 1 x RJ45
• Available Current: Up to 1 Amp to USB port
• Dimensions: 2.6" x 3.4" x 1.2"
• Mounting: Slots for Cable Ties
• Enclosure Material: Black ABS with Rubberized Coating
• ENVIRONMENTAL
• Operating Temperature: 32 F to 122 F
• Storage Temperature: -4 F to 158 F
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Humidity: 10% to 90% relative humidity, non-condensing
• COMPLIANCE
• EMC: FCC (Class A), CE (Class A) Environmental: RoHS2 (CE) Safety: Flammability V-0 SUPPORT
• Warranty: 2 years

Downloads

• FSR USB-EXT-1 Specifications (PDF)
• FSR USB-EXT-1 Manual (PDF)
