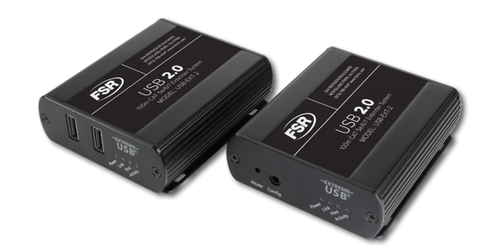

FSR USB-EXT-2
2-Port FlexPower, 100m

Description

The USB-EXT-2 extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 with the option to power at either the Host Extender or Device Extender. It features full device and host support as well as Mass Storage Acceleration for improved USB 2.0 device bulk transfer speeds over previous generation. It is ideal for extending USB peripherals including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras and any other USB device.

Featuring

• Flexible power: Connect the power adapter to either the Host or Device Extender
• Supplies up to 1.5 Amps total when both USB ports are in use
• Mass Storage Acceleration for USB 2.0 device bulk transfer speeds
• Supports throughputs of up to 480 Mbps
• FCC/CE Class B
• Transparent USB extension
• Plug and play; no software drivers required
• Works with all major operating systems: Windows, macOS and Linux

Specifications

• POWER
• Power Supply: 00-240V AC Input, 24V 1A DC Output included
• LOCAL EXTENDER
• USB Connector: 1 x USB Type B Receptacle
• Link Connector: 1 x RJ45
• Dimensions: 2.6" x 3.4" x 1.2"
• Mounting: Slots for Cable Ties
• Enclosure Material: Black ABS with Rubberized Coating
• REMOTE EXTENDER
• USB Connector: 1 x USB Type A Receptacle
• Link Connector: 1 x RJ45
• Available Current: Up to 1 Amp to USB port
• Dimensions: 2.6" x 3.4" x 1.2"
• Mounting: Slots for Cable Ties
• Enclosure Material: Black ABS with Rubberized Coating
• ENVIRONMENTAL
• Operating Temperature: 32 F to 122 F
• Storage Temperature: -4 F to 158 F
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Humidity: 10% to 90% relative humidity, non-condensing
• COMPLIANCE
• EMC: FCC (Class A), CE (Class A) Environmental: RoHS2 (CE) Safety: Flammability V-0 SUPPORT
• Warranty: 2 years
