FSR WB-X1-GNG-B
1G/2G, or 4G Medium Capacity Wall Box
- 4 gang opening
- Dimensions: 9.38 X 12.38"
- Fits within standard wall dimensions
- Tapped connector mounting holes for easy installation
Description

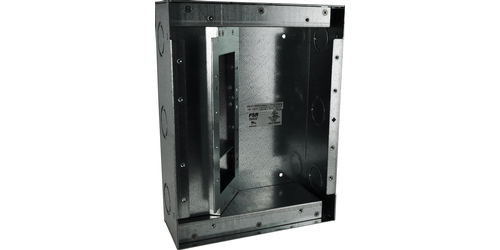

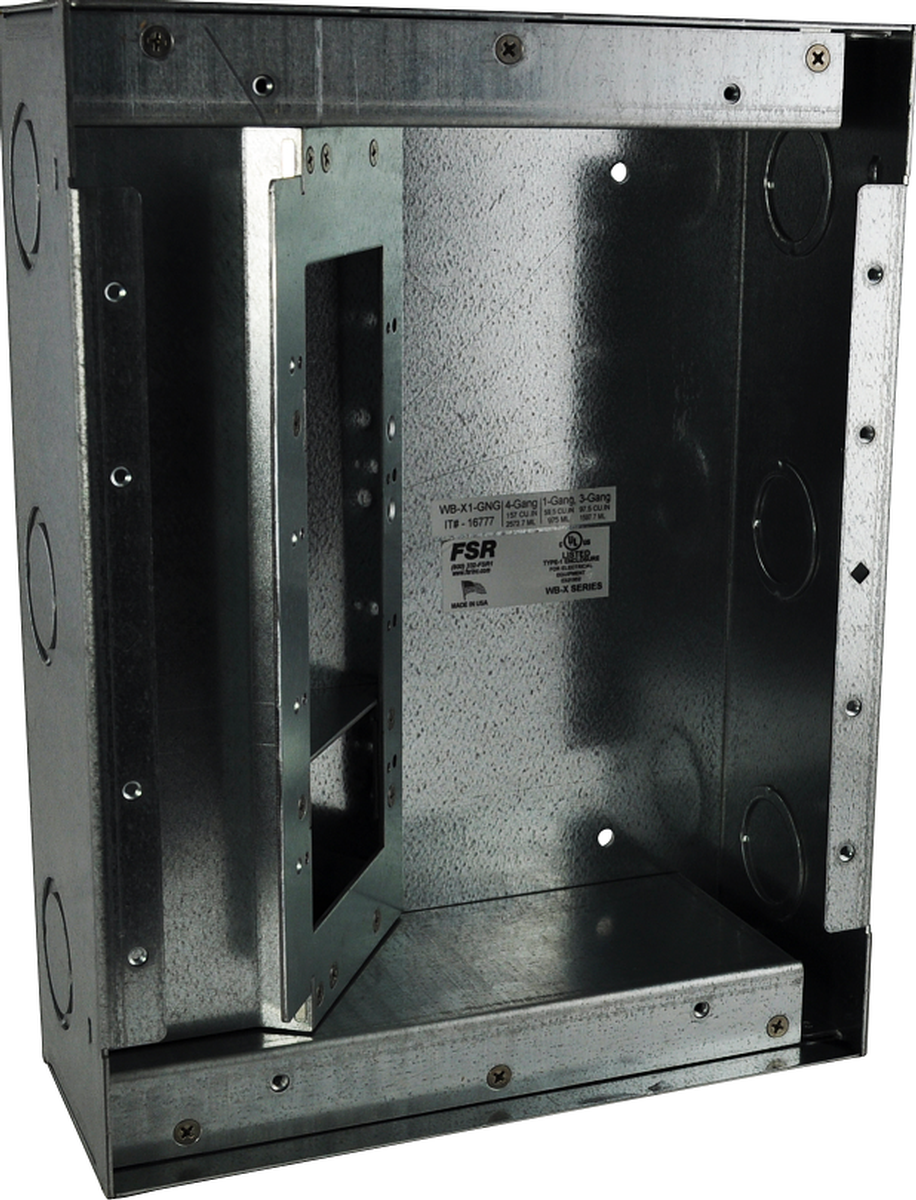

The FSR WB-X1-GNG-B is a 4 gang with knock outs medium capacity wall box. The WB-X “gang” style back boxes include factory mounted moveable high voltage dividers so that compartments containing AC line power can be isolated from low voltage and signal areas. Multiple gang arrangements are accomplished with a combination of supplied moveable dividers and spacer/filler panels. These boxes are made of a durable rugged steel construction, and can be fitted with either a surface mount or flush mount wall covers. Two different style locksets are included to cover a variety of installation possibilities. The stylish covers have “flip up” cable entry doors so the door can be closed and locked once the cables are connected. The door hinges and mounting screws are hidden to provide security and for a sleek look.
Primary Features of the FSR WB-X1-GNG Wall Box Include:
- Safe, secure cable, connector, and control management
- Low profile cover with locking door
- Locking cover door
- New and old work compatible
- Fits within standard wall dimensions
- Tapped connector mounting holes ease installation
- Large 1”, 1 ¼” Knockouts for conduit
- IPS and XLR style connector plates are painted black and have room for customer provided ID name plate
- Support wings are included with back boxes for old and new work installation.
Specifications
- Large 1" and 1 1/4" knockouts for conduit
- Support wings are included with back boxes for old and new work installation
- Factory mounted moveable high voltage divider compartments containing AC line power can be isolated from low voltage and signal areas
- Choice of 2 locks: handle or no handle
- Warranty: 1 year
