Furman BATT1500-EXT
Battery Extension Pack For F1500-UPS and MB1500

Description

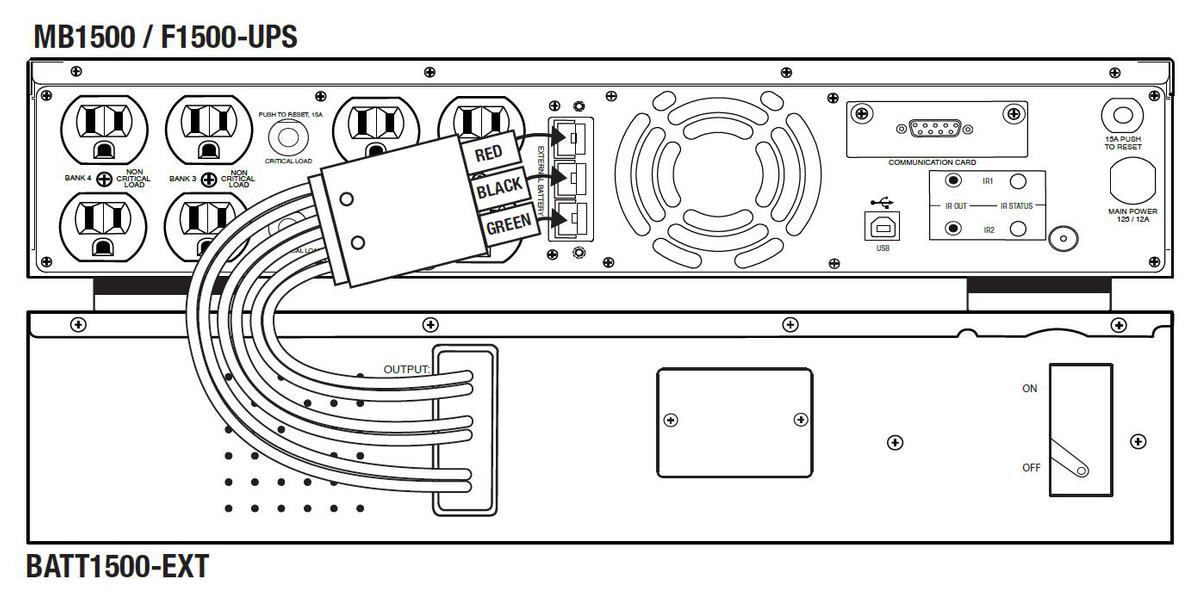

Introducing the Furman BATT1500-EXT Battery Extension Pack For F1500-UPS and MB1500. This rack-mountable device extends the battery runtime of the MB1500 and F1500-UPS by up to 4 times. It's 2U size matches the UPS's esthetics and can similarly be tower or rack mounted. It's heavy gauge power cord is adapted with DC connectors for easy, plug-and-play install. This metal enclosed battery extension pack houses eight 12V 9Ah batteries  that are connected by way of two strings of four in serial.

Other Features of this Battery Pack Include:

• Form Factor - 2U configuration supports both rack and tower mounting
• Metal Housing - Rigid metal construction allows for placement in areas with a demanding environment
• Power On/Off Switch - Local power switch for manual reset & control
• Back-panel fuse - User replaceable fuse which is easily accessed from the rear panel

Specifications

• User Replaceable: Yes
• Hot Swappable: Yes
• Typical Recharge Time: 8 Hours
• Certifications: UL1778, cUL 107.1, FCC DOC Class B
• ROHS Compliant
• Rack Size: 2U
• Dimensions (LxHxW): 17 x 4 x 19"
• Weight: 67 lbs.
• Warranty: 2 Years

Downloads

• Furman BATT1500-EXT Specifications (PDF)
• Furman BATT1500-EXT Manual (PDF)
