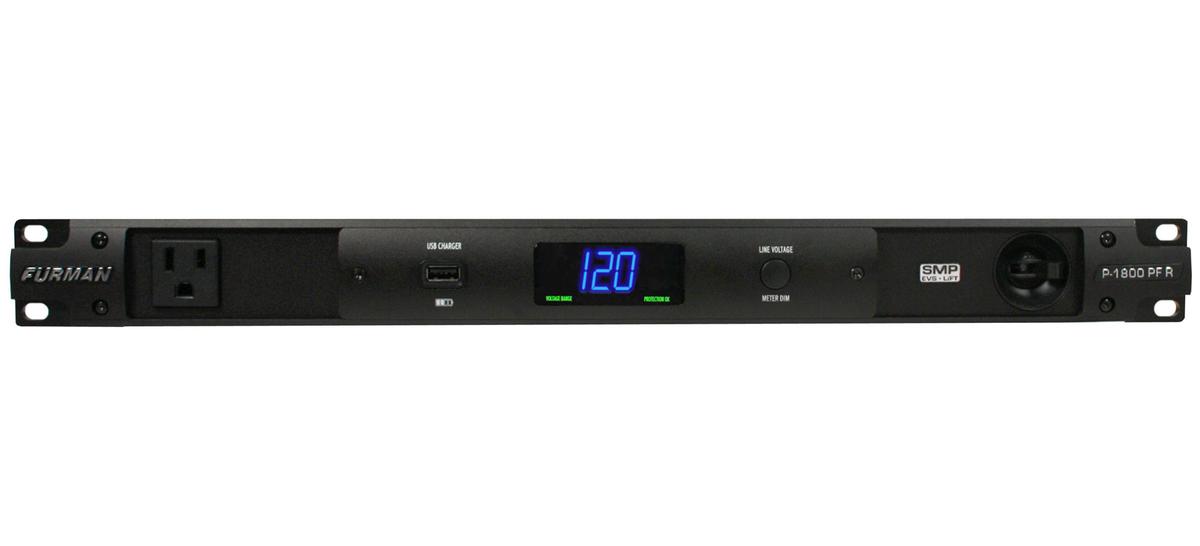

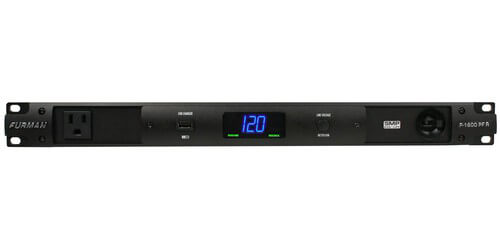

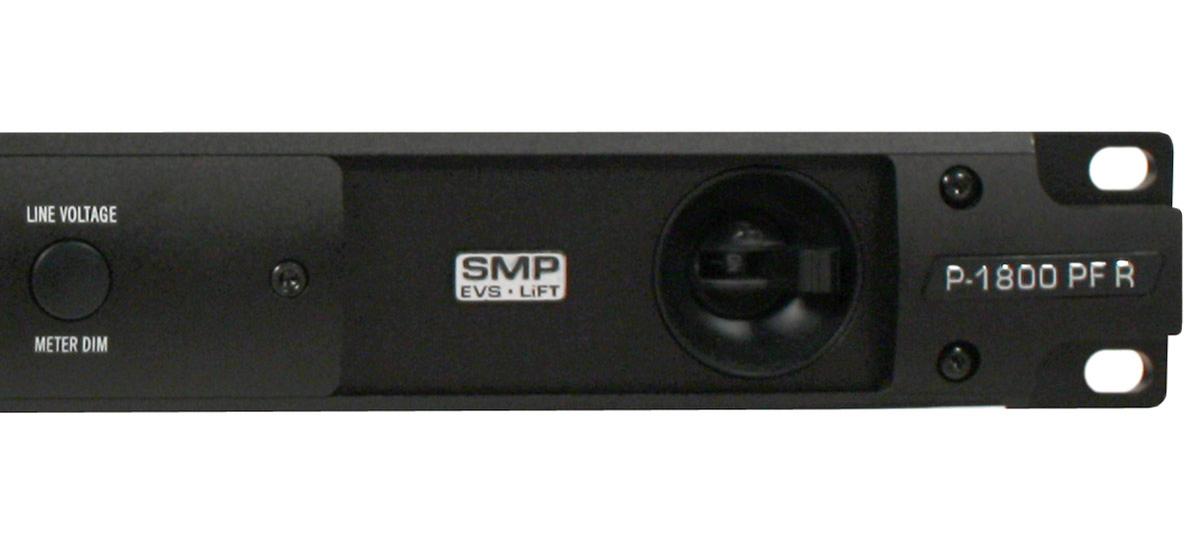

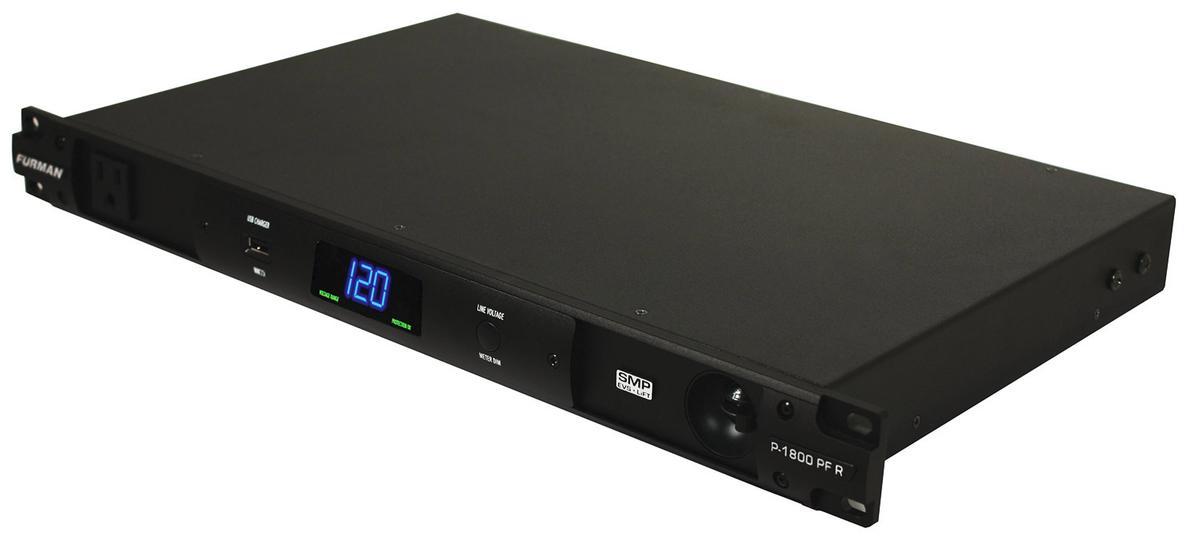

Furman P-1800 PFR
15A Advanced Power Conditioner w/Power Factor Technology
- Outputs: 9 (1-front, 8-rear)
- Max. Current: 15 AMPS
- Line Cord: Captive 3/14 AWG, 10', Black Cord with NEMA 15 Plug
- BNC Socket with Switch for Rear Rack Lamp: 12VAC 500MA Max (lamp not included)
-Jeff A.
Description

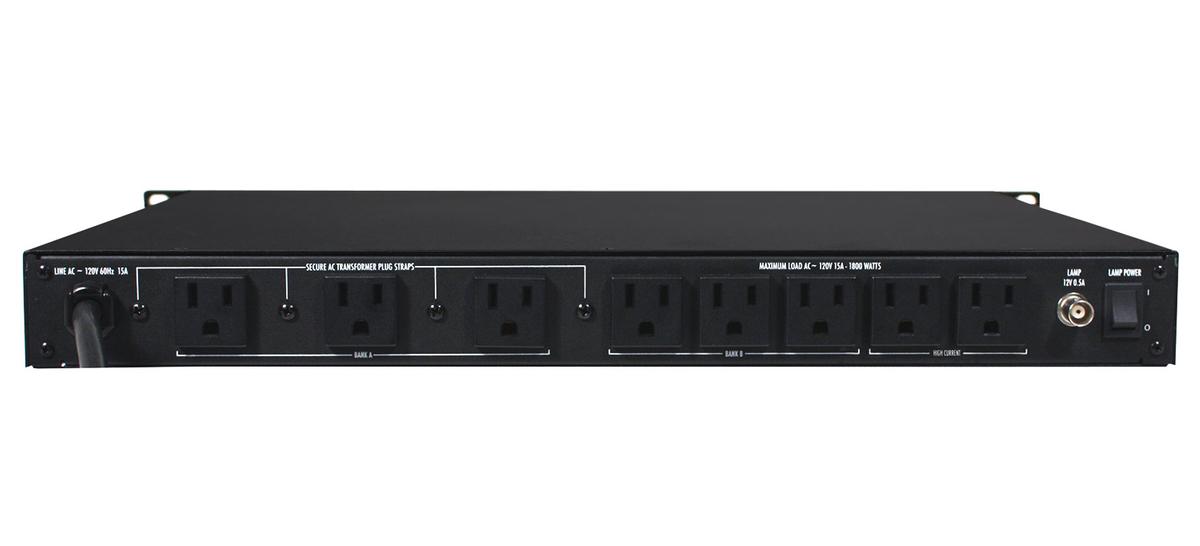

This P-1800 PFR 15A Advanced Power Conditioner from Furman features Power Factor Technology as well as Clear Tone Technology. It has nine outlets, eight on the rear - three of which wall wart spaced - and one on the front panel for the users convenience. This power conditioner is designed for use with instrument amplifiers and other high-current equipment. It protects and filters low impedance power supply for the highest quality performance of connected devices.
The above listed Power Factor Technology instantaneously supplies 45+ amps of reserve current, on demand, when amplifiers are power starved. Clean consistent tone is provided by Clear Tone Technology, with tuned filtering circuits that are engineered for instrument amplifiers.
Additionally, this device features technologies like Furman's Linear Filtration Technology (LiFT), Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). The LiFT ensures clean power with AC power filtering that provides unparalleled video & audio clarity. SMP technology provides the best spike and surge protection available. While EVS circuitry detects when there are dangerous voltage irregularities and safely powers down itself and connected equipment when unsafe conditions occur. This unit is backed from Furman with a five year warranty.
Other Features of this Power Conditioner Include:
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised
- Isolated outlet banks minimize inter-component interference and noise contamination
- Large digital voltmeter with discrete dimmer button displays incoming line voltage
- Three widely spaced outlets accommodate bulky AC power transformers
- 15 Amp rating featuring a high inrush magnetic circuit breaker for added protection
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination
- Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp
Specifications
- Operating Voltage: 90 to 139 VAC
- Over Voltage Shutdown: 140 VAC Nominal
- Spike Protection Modes: Line to Neutral, Zero Ground Leakage
- Spike Clamping Voltage: 188 VAC Peak @ 3,000 AMPS
- Response Time: 1 Nanosecond
- Max. Surge Current: 6,500 AMPS
- Power Consumption (No Load): 8 Watts
- Reactive Power: 460 VA
- Dimensions (WxDxH): 19 x 12 x 1.75"
- Weight: 13 lbs.
- Warranty: 5 years
