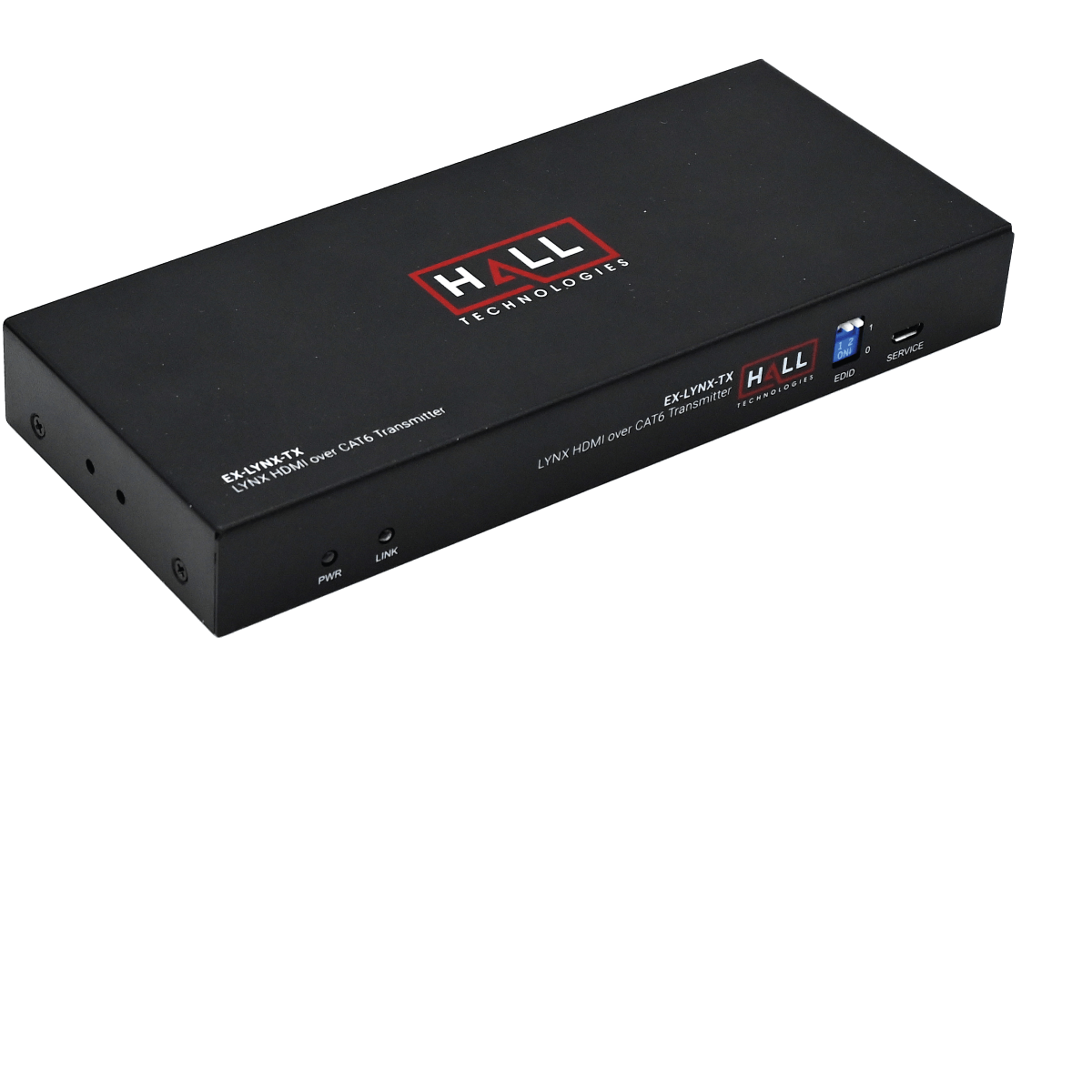

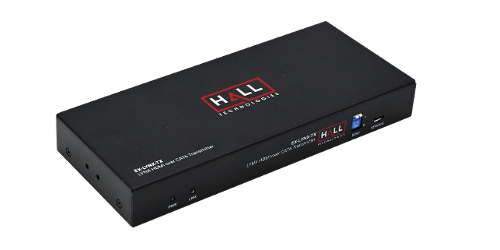

Hall Technologies EX-LYNX-TX
LYNX Transmitter

Description

The LYNX Series features extension of Ultra HD resolution, 4K2K@60Hz video signals with audio and control up to 60m (197ft) over a single category cable. Both the LYNX-TX and the LYNX-RX include local audio de-embedding via a 3.5mm stereo output. The LYNX-TX transmitter includes an HDMI Local Loop output to allow for monitoring and playback status of the local video source. Additionally, the LYNX-RX receiver includes an RJ45 Loop Output to allow up to eight receivers to be cascaded to create a larger distribution solution and/or to enable greater distribution distance. LYNX also supports bi-directional control pass-through for source and display control, and ships with a pair of infrared emitters.

Specifications

• Bi-directional IR supported
• Supports Local Loop Output
• Note: Rs232 and IR only can be used between Transmitter and the first
• Receiver, if multiple Receivers are cascaded.
• Support for mixing EDID for better compatibility
• Offers simple and quick distribution for HDMI video signals ? position your monitors wherever you wish
• Resolutions: 4K2K (60Hz), 4K2K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• LED status display
• Max transfer rate: 18 Gbps
• Color depth: 12 bit
• Supports compressed audio signals, such as DTS digital, Dolby digital (including DTS-HD and Dolby True HD)
• Supports uncompressed audio signals such as LPCM
• Compact size, simple use and installation
• Supports PoC, function. This means either transmitter or receiver is powered by a 12v power adapter, the other device doesn?t need a power supply.
