Hall Technologies

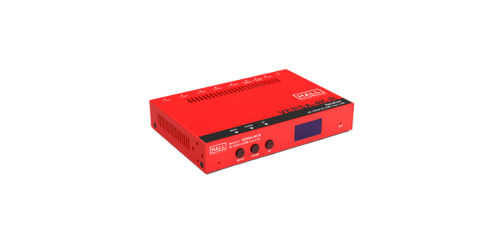

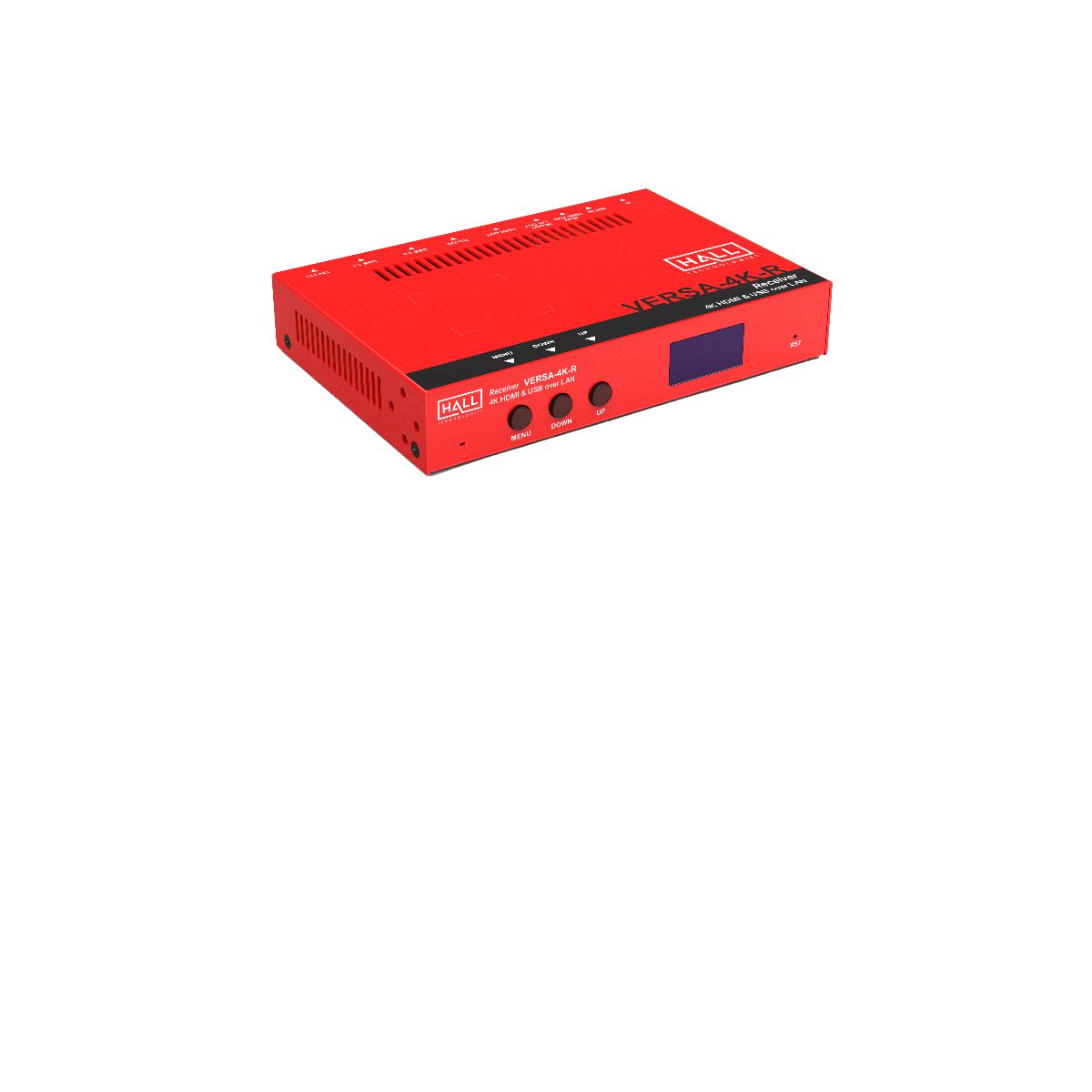

HT-VERSA-4K-R
4K Video & USB Decoder Extension for Point-to-Point or Matrix over IP
-Patrick S.
Description
HT-VERSA-4K is a complete AV over IP solution, which can extend 4K video with one frame latency, USB 2.0, keyboard, mouse, IR, RS-232, and analog audio over a simple Gigabit Ethernet Network. Advanced features include video wall processing to expand and split 4K video onto multiple displays, video rotation and flipping (horizontal and vertical), USB device class filtering for excluding specific USB device types such as USB flash drives, automatic KVM switching, Dynamic Virtual Matrix (DVM) operation, PoE (Power over Ethernet) support, and more. 4K Video & USB over IP in a 1-to-1 setup (one sender to one receiver) does not require external network equipment. Simply connect a Cat6 cable up to 120 meters (400 ft) between the two ends. In a many-to-many setup, a dedicated gigabit Ethernet switch (with IGMP and Jumbo-frame support) is required. The encoder in the sender (HT-VERSA-4K-S) uses visually lossless compression, which gives pixel perfect quality at the remote end. It can accept HDMI resolutions up to 4K@30Hz, 4:4:4 with HDCP 2.2. It includes a video loop output together with extracted HDMI audio in analog format for maximum flexibility and integration. The receiver (HT-VERSA-4K-R) has a built-in scaler that not only supports a video wall up to 16x16, but can also change the orientation of the image. The receiver also includes extracted HDMI analog audio. Two USB ports are dedicated for use with keyboard and mouse (auto-switching based on user activity) and two general purpose USB 2.0 ports that support touch screens and memory devices, along with many other USB device functions.
