Hall Technologies VERSA-4K-R
4K Video & USB Extension for Point-to-Point or Matrix over IP
- Supported Resolutions:PC (VGA to WUXGA) HDTV(480i to 4K/UHD) Power Supply:12V/1A DC with universal AC plug kit and locking DC connector (US/EU standards, CE/FCC/UL certified) Operating Temperature:+32 to +104F (0 to +40 ) 20-90%, non-condensing
- Product Dimensions:6.30"(160 mm) W x 3.94"(100.0 mm) D x 1.38" (35 mm) H
- Net Weight:TX (Unit) : 1.12 lbs (0.51 KG)
- RX (Unit): 1.12 lbs (0.51 KG)
Description

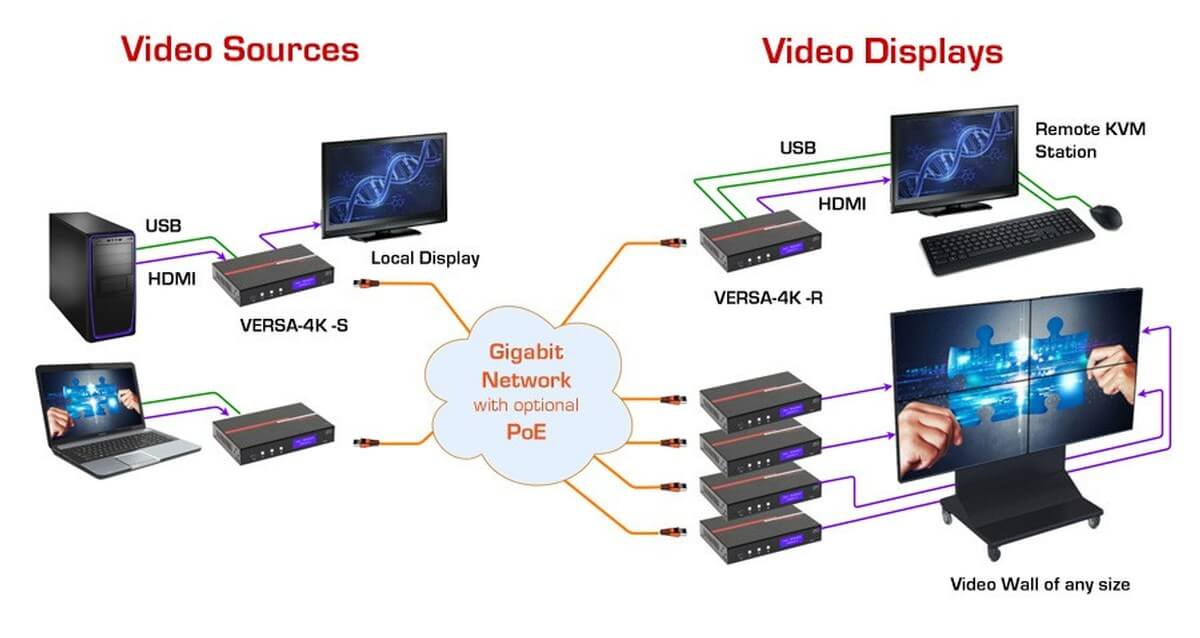

The Hall Research VERSA-4K-R provides the means to extend and switch multiple HDMI video and USB data to virtually an unlimited number of receivers on a simple Gigabit network. Bidirectional IR, RS-232, and auxiliary stereo audio can also be extended. Advanced features include, low latency video and audio, CEC and Serial over IP for control, video wall processor to expand and split 4K video on to multiple screens, video rotation and flipping (horizontal and vertical), USB Device class filtering for excluding specific USB device types such as USB flash drives, automatic KVM switching, Telnet and webGUI control, Dynamic Virtual Matrix™ (DVM) operation, PoE (power over Ethernet) support, and more.c
Features:
- Extend and switch multiple 4K HDMI video and USB on a simple Gigabit LAN
- Can be used directly (without LAN) for point-to-point HDMI/DVI video, USB 2.0, Audio, IR, and RS232 extension on Cat6
- low latency video and audio
- Video rotation and flipping (horizontal and vertical)
- User configurable video-wall processor
- Extends signals up to 120 meters (400 ft)
Additional Information:
The Sender can accept any HDMI resolution including 4K, 60 Hz 4:4:4 with HDCP 2.2 and it includes an HDMI video loop output together with extracted HDMI audio in analog format for maximum flexibility. The Receiver also includes extracted HDMI audio output and provides a scaled video output with maximum resolution of 4K, 30 Hz 4:4:4 . There are 4 USB ports available on the Receiver, 2 dedicated for use with keyboard and mouse (auto switching based on user activity) and 2 general purpose USB 2.0 port that support touch screens, memory devices, audio capture, and many other USB device functions.
Specifications
- Chassis Material:Metal
- Mounting Option:Mounting Brackets (included)

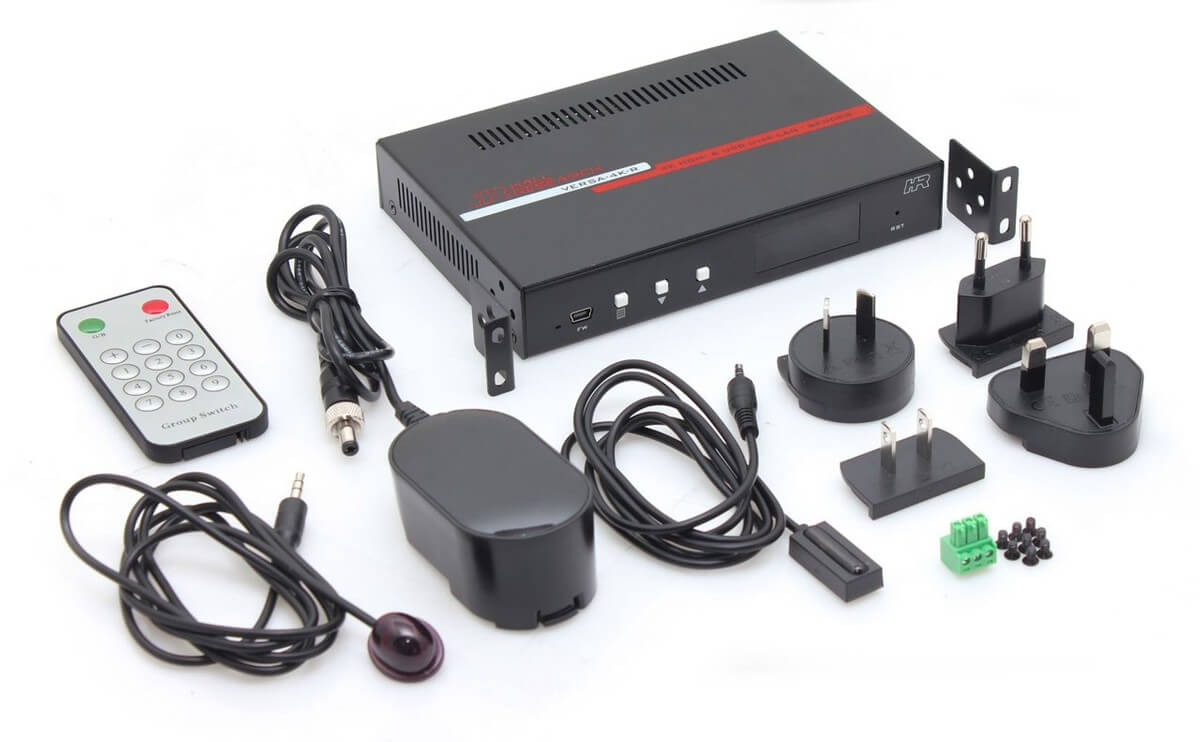

- Package Contents: VERSA-4K-R Main Unit, User Manual Card, Wide Band IR Detector (For extension to sender), IR Detector (For video Chn/Group selection), IR Remote Controller, Universal Power Supply (Used if there is no PoE), Side Brackets (Can rotate 90 for surface mounting)
- Warranty: 3 Years
