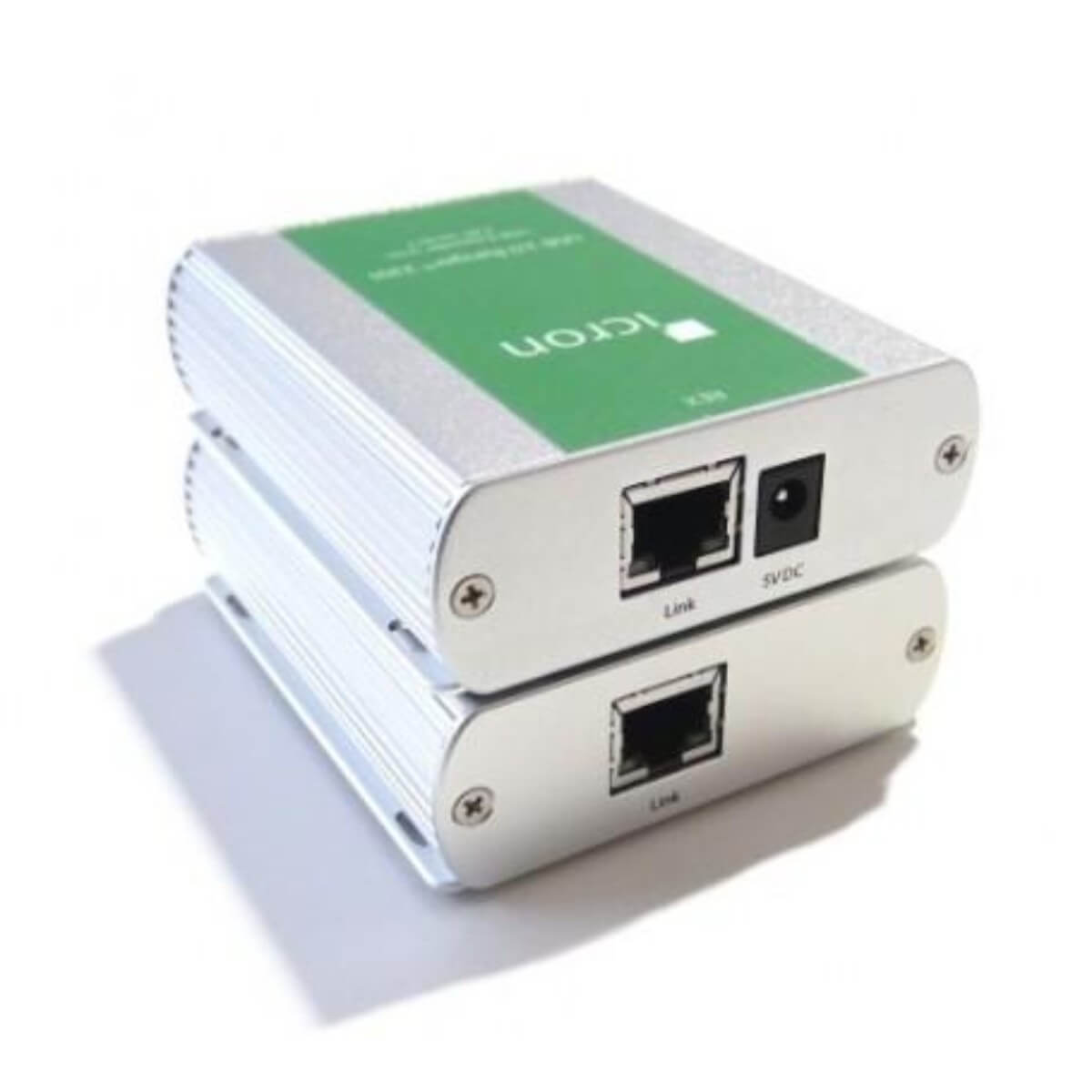

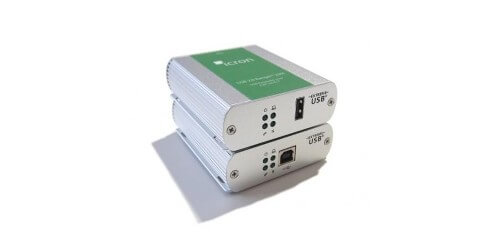

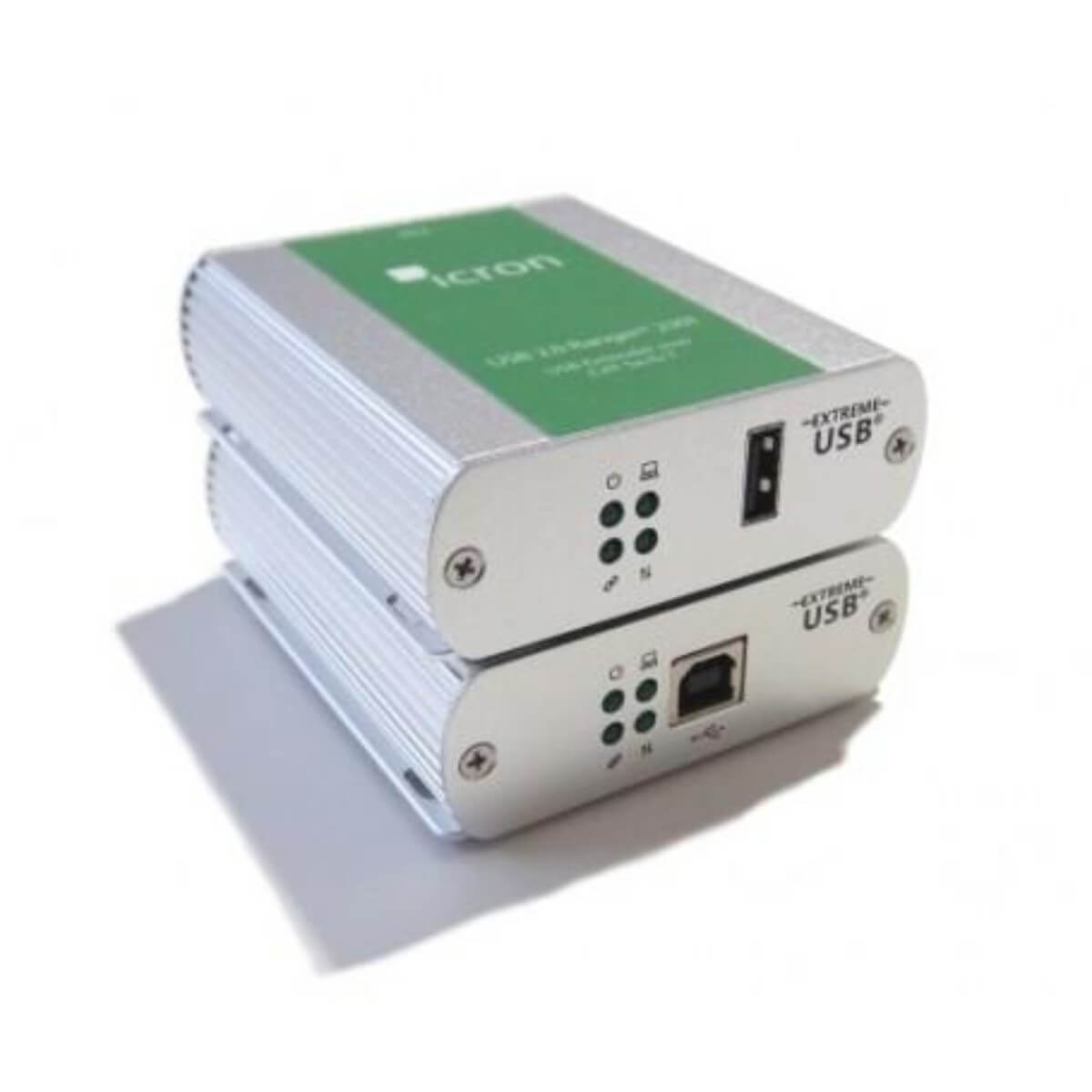

Icron 2301
Single-port USB 2.0 Extender up to 100 Meters over CATx Cabling
- USB Type: USB 2.0
- Transmission Media: Cat X
- Number of USB Ports: 1 - Port
- Max. Distance: Up to 100m
Description
The latest Icron Ranger 2301 is a single port USB 2.0 extender that will be superseding the Ranger 2201.

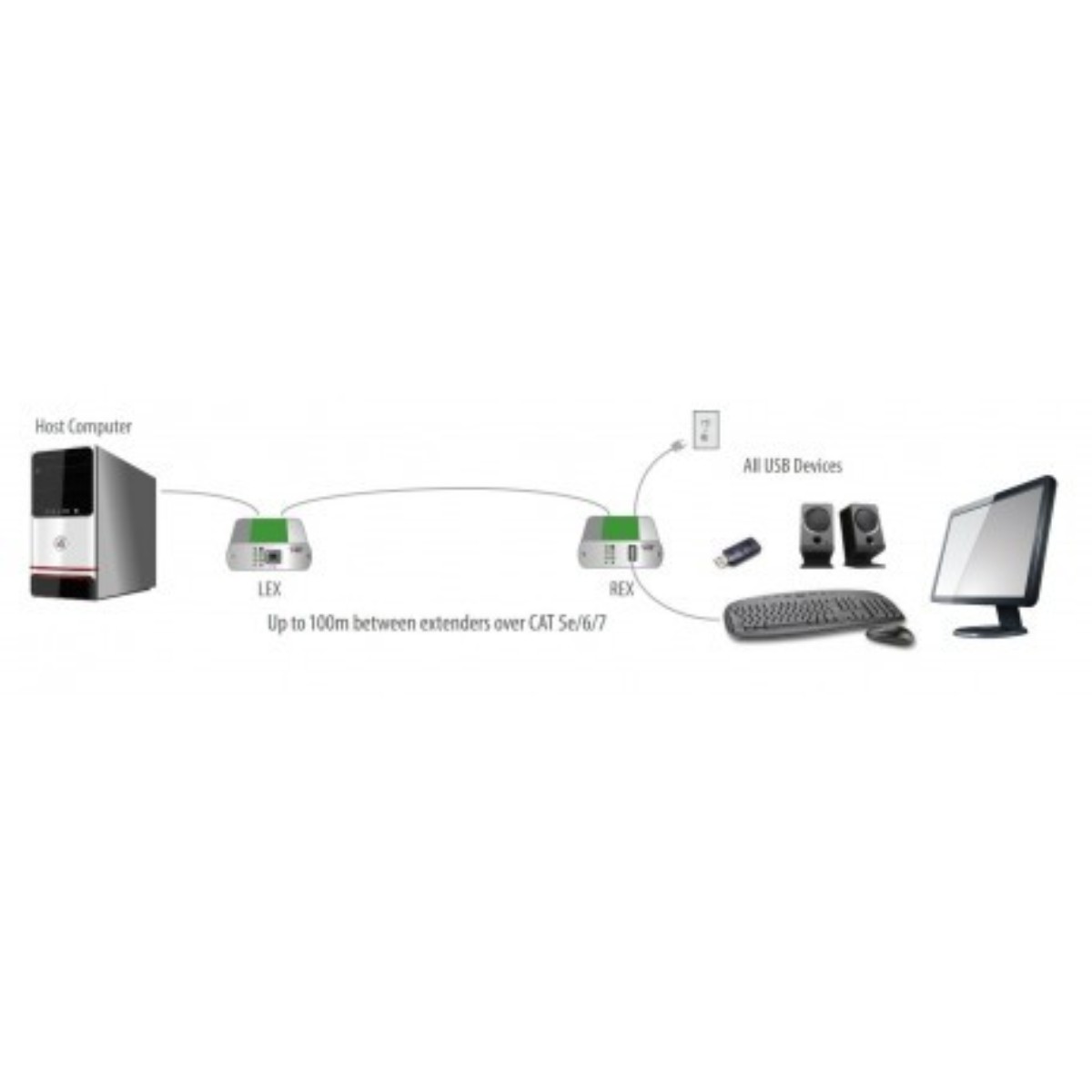

This advanced USB extender will allow you to extend all USB 2.0 & 1.1 devices up to 100m/330ft over Cat 5e (or better cabling) at throughput speeds up to 480Mbps.
Featuring Icron's patented ExtremeUSB, the Ranger 2301 provides a true plug-and-play solution without the need for additional software drivers. This USB extender is compatible with all leading operating systems (Mac OSX, Windows, Linux) and it's excellent functionality makes it ideal for devices such as high-speed webcams, hard drives, touch screens, audio devices and many more.
The Ranger 2301 features updates to the hardware and firmware. It will have a new ASIC based design and changes to the internal USB hub will see Microchip replaced by Cypress. Its advanced design includes easy access mounting holes to allow the USB extender to be mounted securely.
Specifications
- Power Adapter Location: REX
- USB Throughput: 480Mbps
- Power Requirements: 24V DC, 1A
