Icron 2304GE-LAN
4-Port USB 2.0 Ethernet LAN Extender Kit over Cat5e/6/7 - 330'
- Direct Connect Range: Up to 330' over solid core CAT 5e/6/7 or better
- Network Connect Range: Up to 330' between switches over solid core CAT 5e/6/7
- USB Device Support: Traffic Types: All USB 2.0 and 1.1
- Device Types: All USB 3.0, 2.0 and 1.1 devices
-Timothy J.
Description

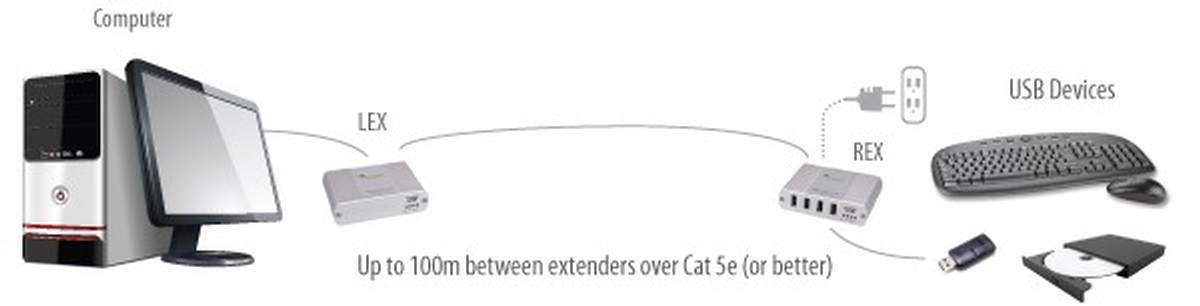

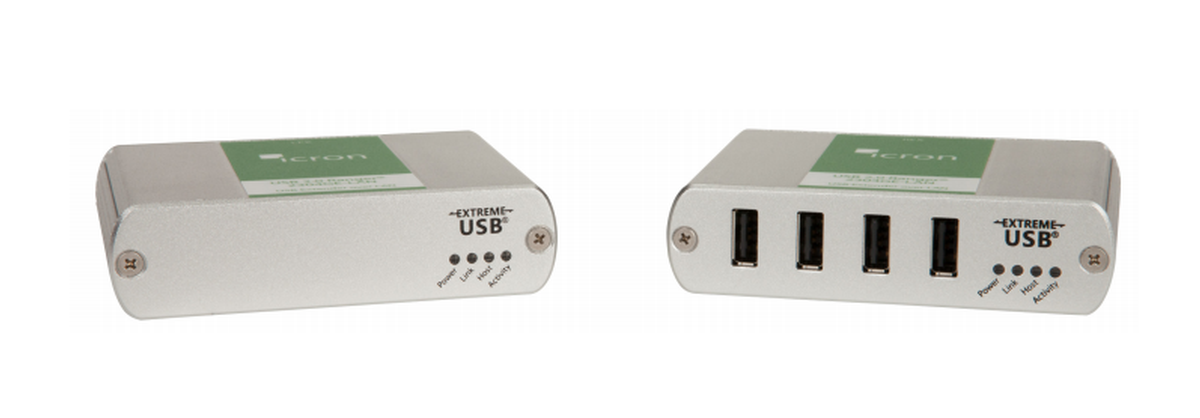

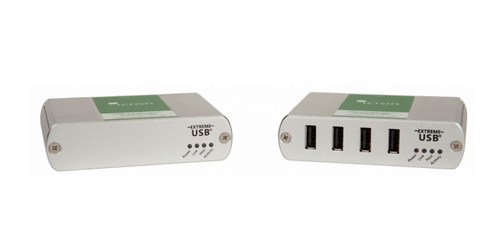

Featuring the USB 2.0 Ranger 2304GE-LAN 4-Port Ethernet LAN Extender Kit over Cat5e/6/7 from Icron Technologies. This extender kit has the ability to extend USB 3.0, 2.0, and 1.1 peripherals such as flash drives, keyboards, mice, interactive whiteboards, webcams and audio devices over CAT 5e/6/7 cabling or across a Gigabit Ethernet Local Area Network (LAN) up to 330'. It offers the ExtremeUSB suite of features such as plug-and-play abilities (no software drives required) and is compatible with all of today's leading operating systems. Up to 30 USB devices or hubs can be supported over LAN. Not only does this unit offer the ability to be used with existing cable infrastructure, it comes with a pre-paired networked configuration making for a faster installs and providing IT visibility. Both units come housed in a rugged metal enclosure, and are backed by a 2 year warranty from Icron Technologies.
Specifications
- LEX unit USB connector: 1 x USB Type B Receptacle
- LEX unit Link connector: 1 x RJ45
- REX unit Link connector: 1 x RJ45
- REX unit USB connector: 4 x USB Type A Receptacles
- Maximum USB devices supported: 30 USB devices or hubs
- Power Supply: 100-240V AC input, 24V DC Output
- Available current: Up to 600mA at each USB port concurrently
- LEX and REX unit dimensions: 3.9" x 3.0" x 1.0"
- Regulatory testing: FCC (Class B), CE (Class B), RoHS2 (CE)
- Included Kit Items: Local Extender, Remote Extender, AC Power Adapter, 6' USB Cable, Quick Start Guide
- Warranty: 2 Years
