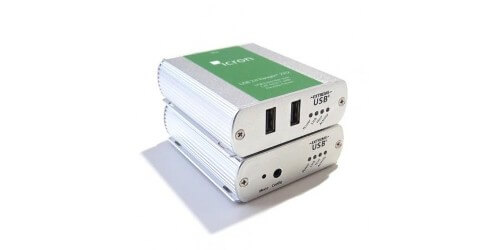

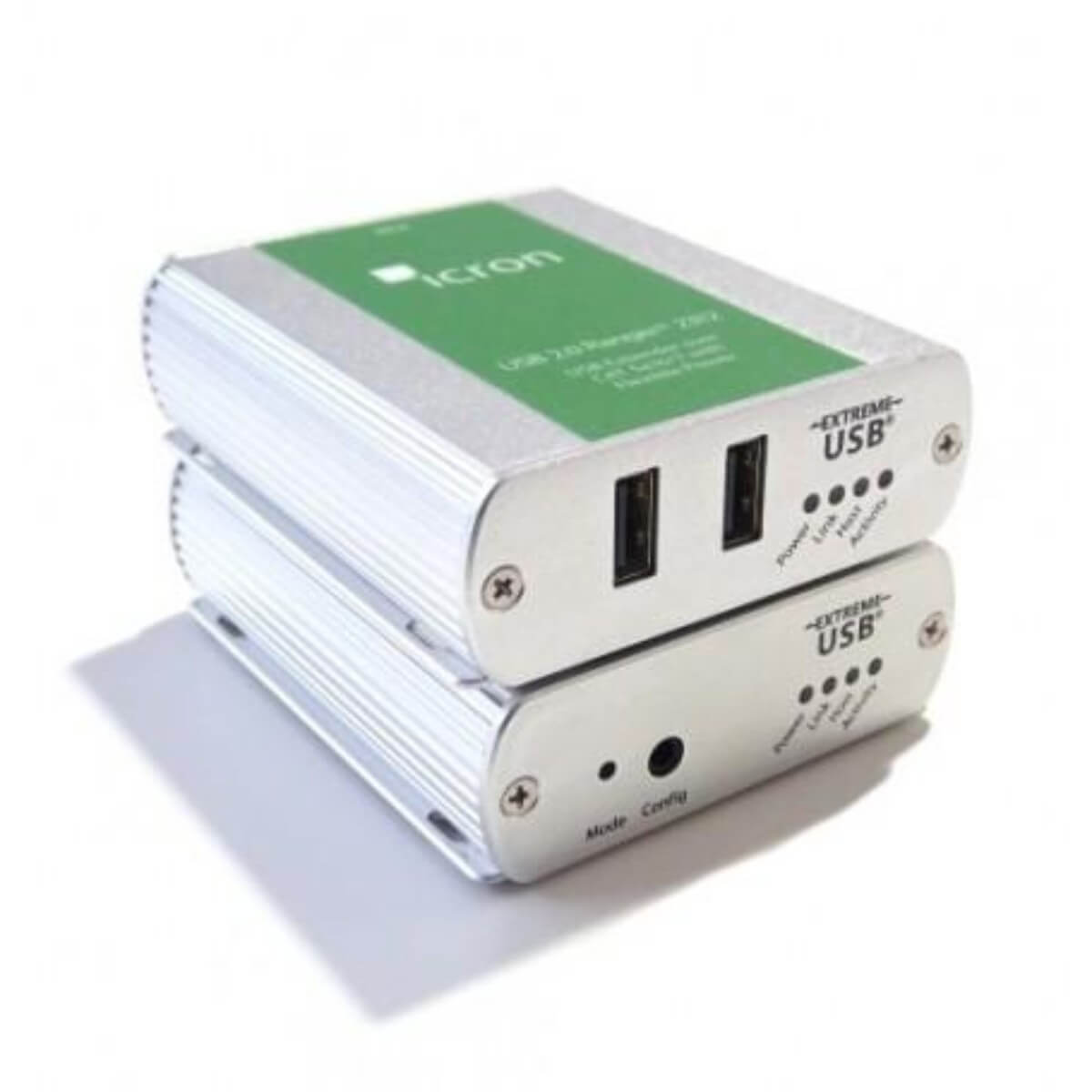

Icron 2312
2-port USB 2.0 Extender up to 100 Meters over CATx Cabling.

Description

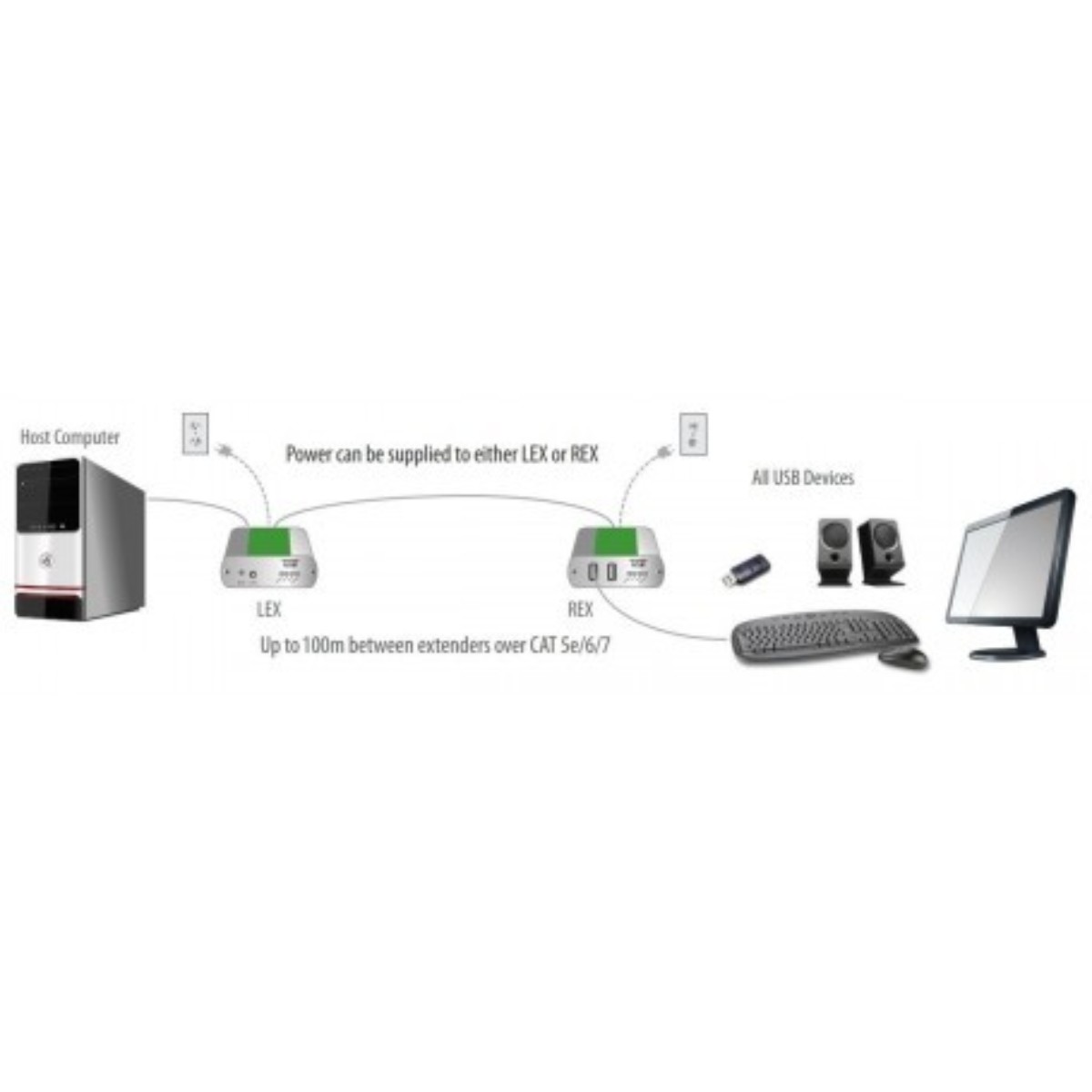

The Icron Technologies Ranger 2312 2-port USB Extender features updated firmware and a new ASIC based design. It is able to extend all USB 2.0 and 1.1 devices types across Cat 5e (or better cabling) at up to 100m/330 ft. Also, similarly with Ranger 2311, the power adapter can be used at either the local extender or the remote extender offering great flexibility.

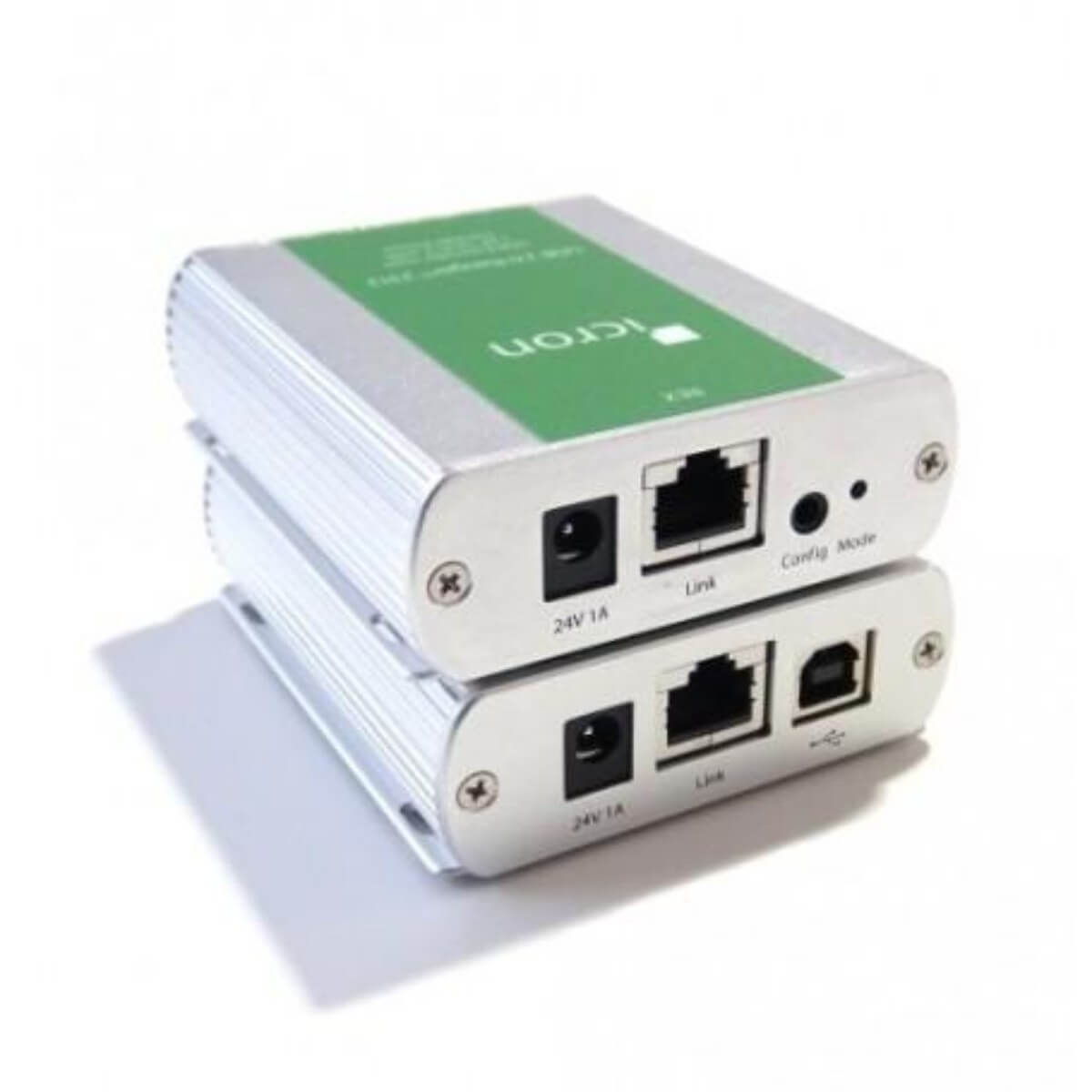

Please note that the Ranger 2312 features flexible power, allowing the installer to connect the supplied 24V, 1A power adapter to either the LEX or REX unit for normal extension system operation. Please note, when powering at the LEX, take care not to plug the remote side of the CAT 5e/6/7 link cable directly into equipment other than the REX to avoid possible damage as flexible power is different from Power over Ethernet (PoE) and will only properly power the REX.

Specifications

• Power Adapter Location: LEX or REX
• USB Throughput: 480Mbps
• Power Requirements: 24V DC, 1A

Downloads

• Icron 2312 Specifications (PDF)
• Icron 2312 Manual (PDF)
• Icron Technologies 2312 Quick Start Guide (PDF)
