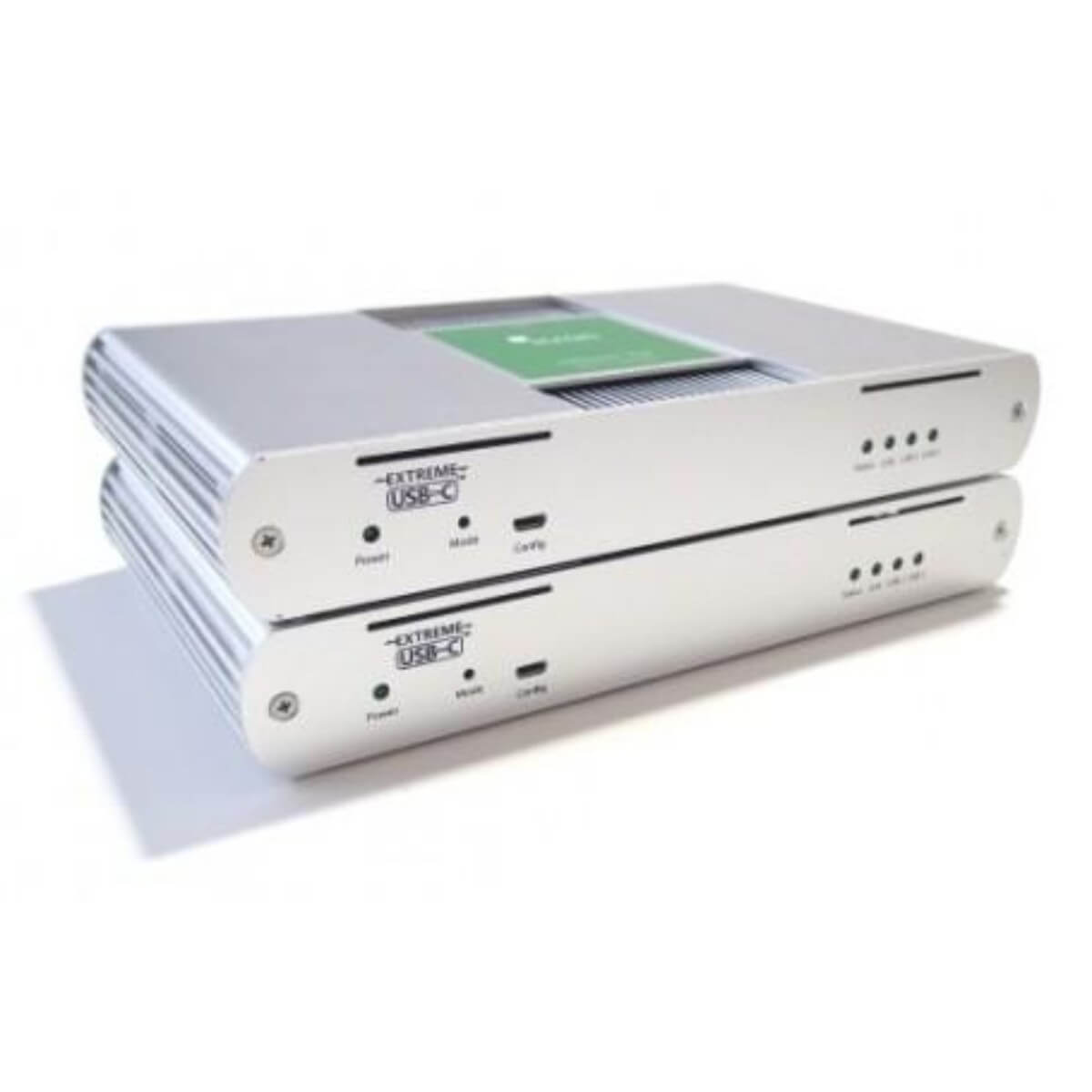

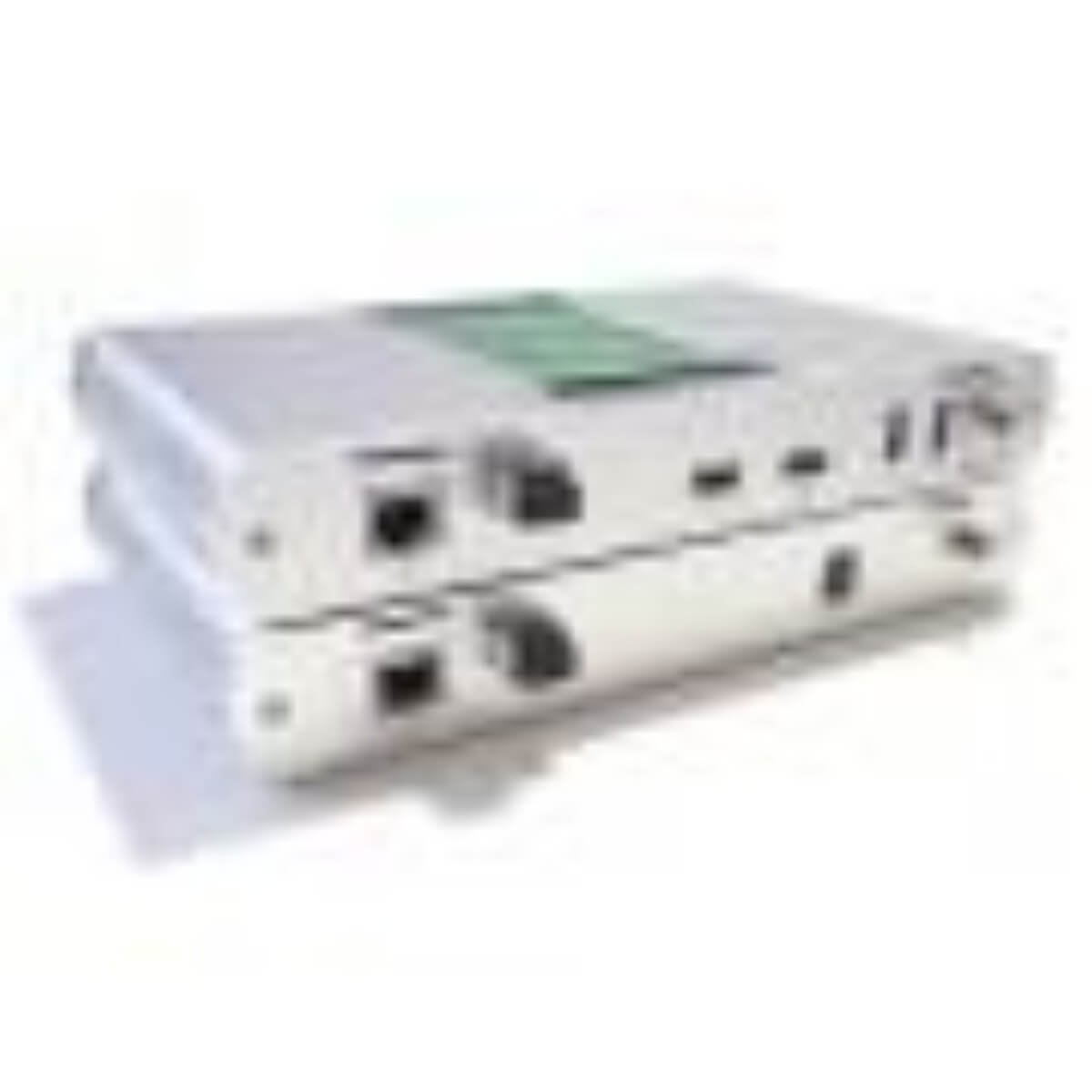

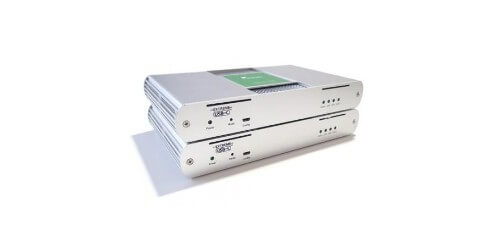

Icron 3124
4-Port USB 3.1 Extender System up to 200m over Multi-Mode Fiber Optic
- USB Type: USB 3.0, 2.0, 1.1
- Transmission Media: Fiber Optics
- Number of USB Ports: 4 - Ports
- Max. Distance: Up to 200m
-Gregory W.
Description

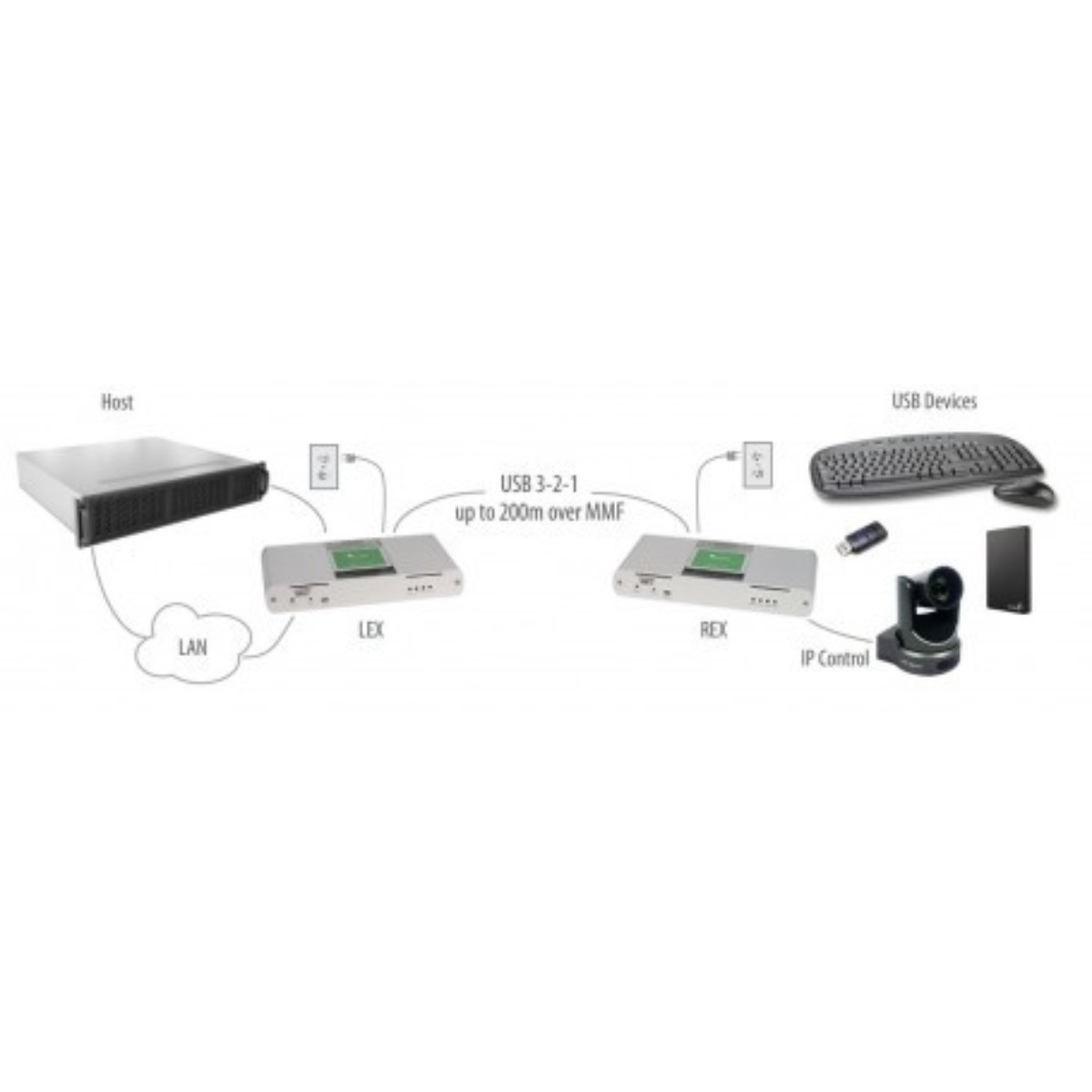

Icron’s latest USB 3.1 extender, the Raven 3124, is a point-to-point solution that is up to 200m over OM3 Multi-Mode fiber optic cabling. This is a 4-port USB extender that is compatible with USB 3.1, 2.0, and 1.1 at up to 5Gbps throughput speeds for simultaneous use. With an additional Ethernet pass-through, this allows the Raven to connect network-enabled devices, or to use existing infrastructure without losing LAN connectivity.
Suitable for video matrix systems, conferencing cameras, and security applications, this is a rugged and reliable solution that will revolutionize USB extension.
Featuring the ExtremeUSB-C technology, this fiber optic USB extender provides you with transparent USB extensions, true plug-and-play connectivity, and works with all major operating systems (Windows, MacOS, Linux).
Specifications
- Power Adapter Location: LEX and REX
- USB Throughput: 5 Gbps
- Power Requirements: 24V DC, 1A
Downloads
