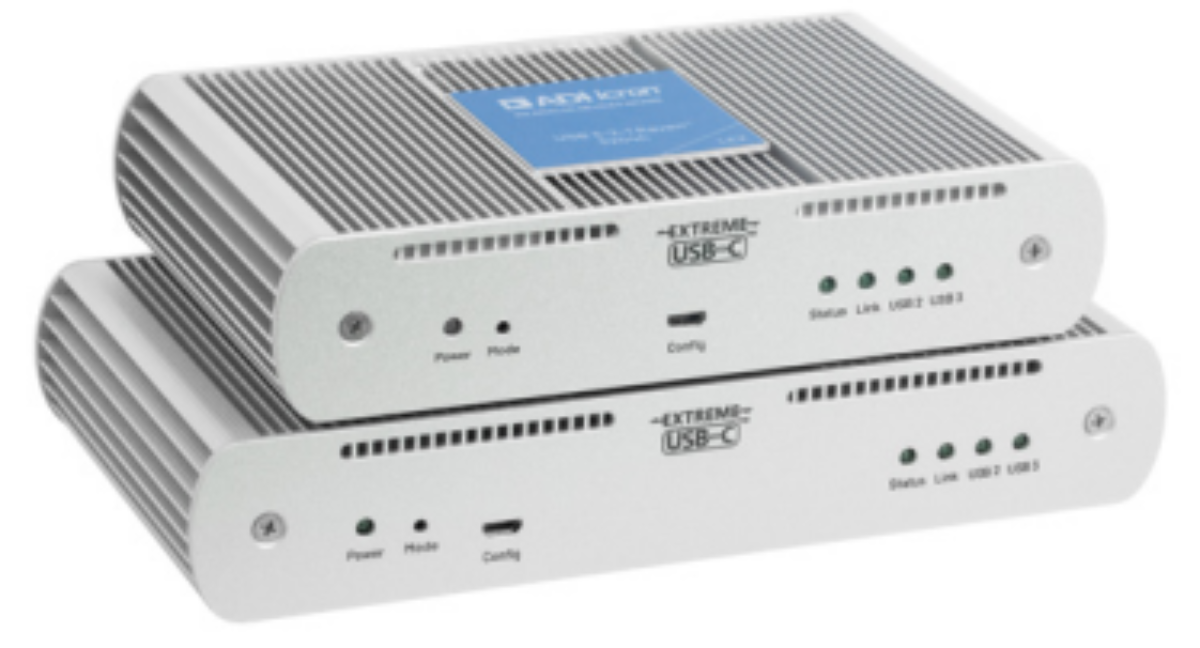

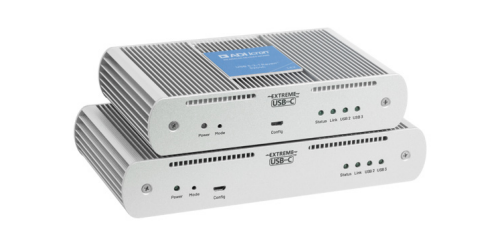

Icron 3204CNA
4 Port USB 3-2-1 100m CAT 6A/7 Extender System
- Supports all USB 3, 2, and 1.1 devices simultaneously up to 5Gbps (shared) If USB 3 Isochronous support is needed, Raven 3204C Pro is recommended
- Power the LEX (Local Extender) using the USB-C connection to the host*
- The REX (Remote Extender) includes 2 USB-C ports and 2 USB-A ports
- Delivers 3A at each USB-C port and 1.2A at each USB-A port
-Brandon K.
Description

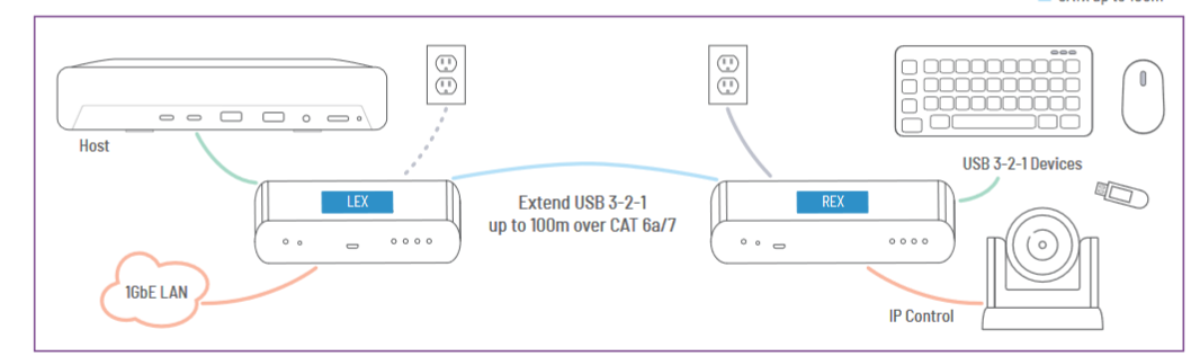

The Icron USB 3-2-1 Raven™ 3204C is the next generation USB 3-2-1 extender allowing users to extend USB 3 (5Gbps) device types as well as USB 2.0 and 1.1 devices across a point-to-point connection up to 100m over a single CAT 6a/7 cable. Applications include extending USB 3 conferencing cameras and audio devices for boardrooms and conference rooms. The Raven extension series has been successfully tested with most major USB 3.1 conferencing cameras in conjunction with major UC conferencing applications (Zoom, Teams, Skype).
This 4-port USB 3.0 extender supports data rates at up to 5Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.
Additionally, this ExtremeUSB-C™ based USB 3-2-1 extender system is FCC/CE Class B certified and, being backward compatible, is ideal for use with all USB-C or USB-A peripherals in addition to USB 3.1 conference cameras including: sound bars, touchscreens, hubs, DACs, and other USB 3, 2 and 1 devices.
Specifications
- 1Gb Ethernet pass-through eliminates extra cable runs for simplified installations
- Compatible with all major UC conferencing applications
- Includes the ExtremeUSB-C suite of features:
- Transparent USB extension supporting USB 3, 2 and 1
- True plug and play
- no software drivers required
- Works with all major operating systems
- Windows , macOS , Linux and ChromeOS
