Intelix FLX-HI4A
Input Card for Card-Based Matrix Switcher - HDMI with Audio Embedding
-Gregory W.
Description

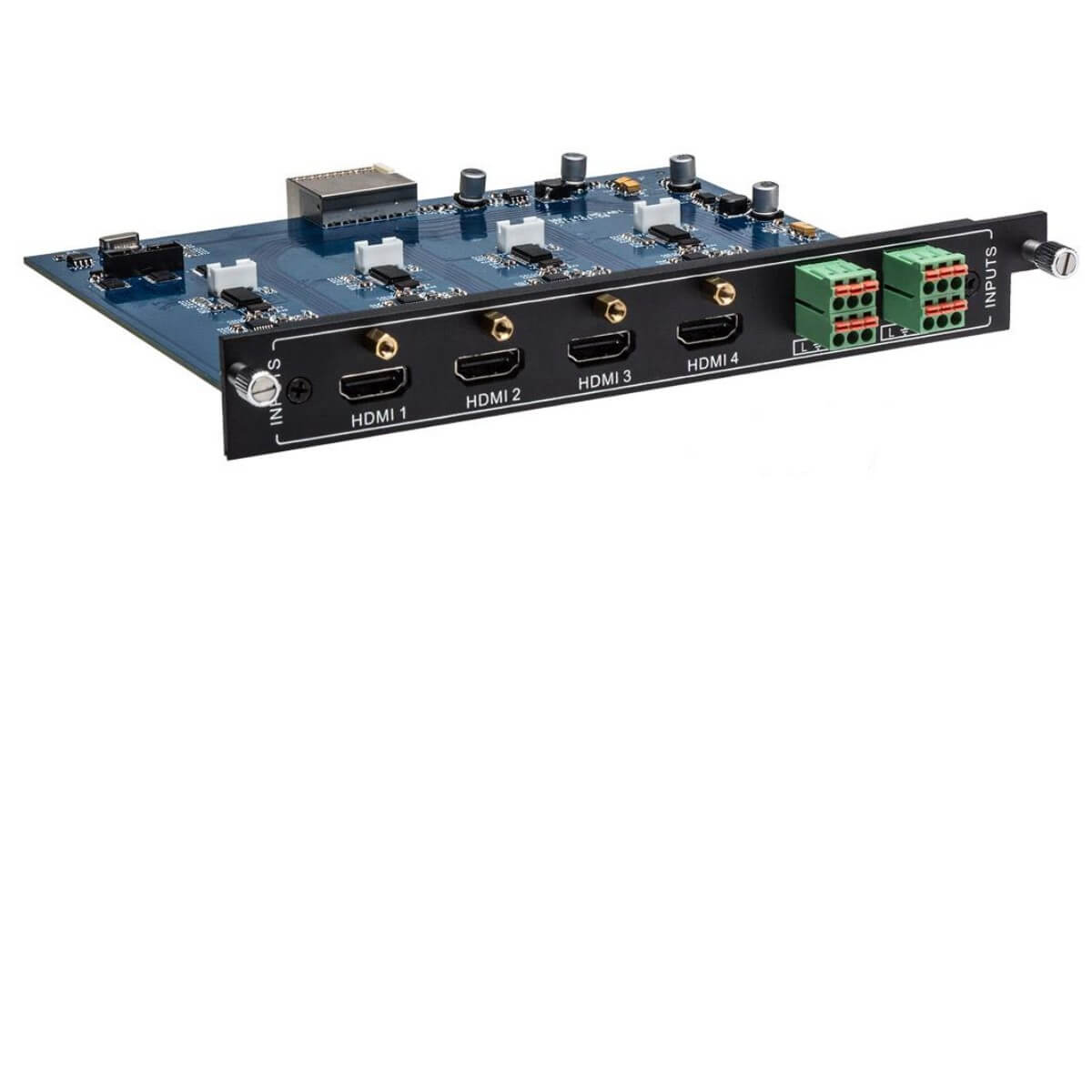

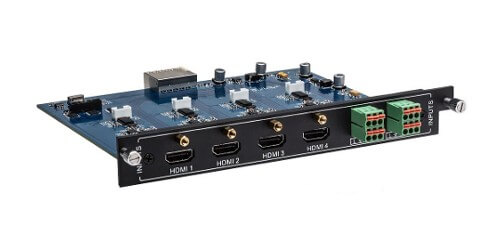

The FLX-HI4A is an HDMI input card with analog audio embedding that can be used in the input slots of any FLX matrix chassis. The HDMI inputs can accept high resolution video signals, including 3D and 48-bit Deep Color at 1080p. Additionally, audio signals from stereo up to 7.1 audio streams will pass through the matrix to supported outputs.
The FLX-HI4A also includes the ability to embed an analog audio signal into the HDMI. The external audio is supplied to the input card on the phoenix terminal blocks. Input audio can be switched between analog and digital (HDMI) by RS232 or IP command. This functionality can be changed by input, to allow each input to be configured individually.
The FLX-HI4A features advanced HDCP handling, including the ability to turn HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources.
