Intelix INT-AS2H1U-TX
Intelix 3x1 HDMI/USB-C HDBaseT AutoSwitcher/Extender
- 2 HDMI &
- 1 USB-C inputs support resolutions up to 4K
- 1 HDBaseT output with remote PoH power extended up to 70m
- 1 HDMI Output
-Gregory W.
Description

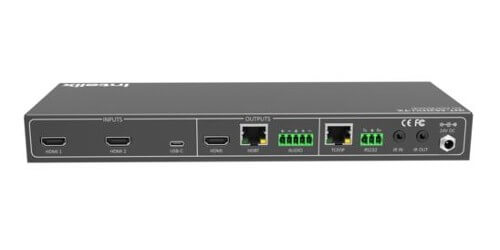

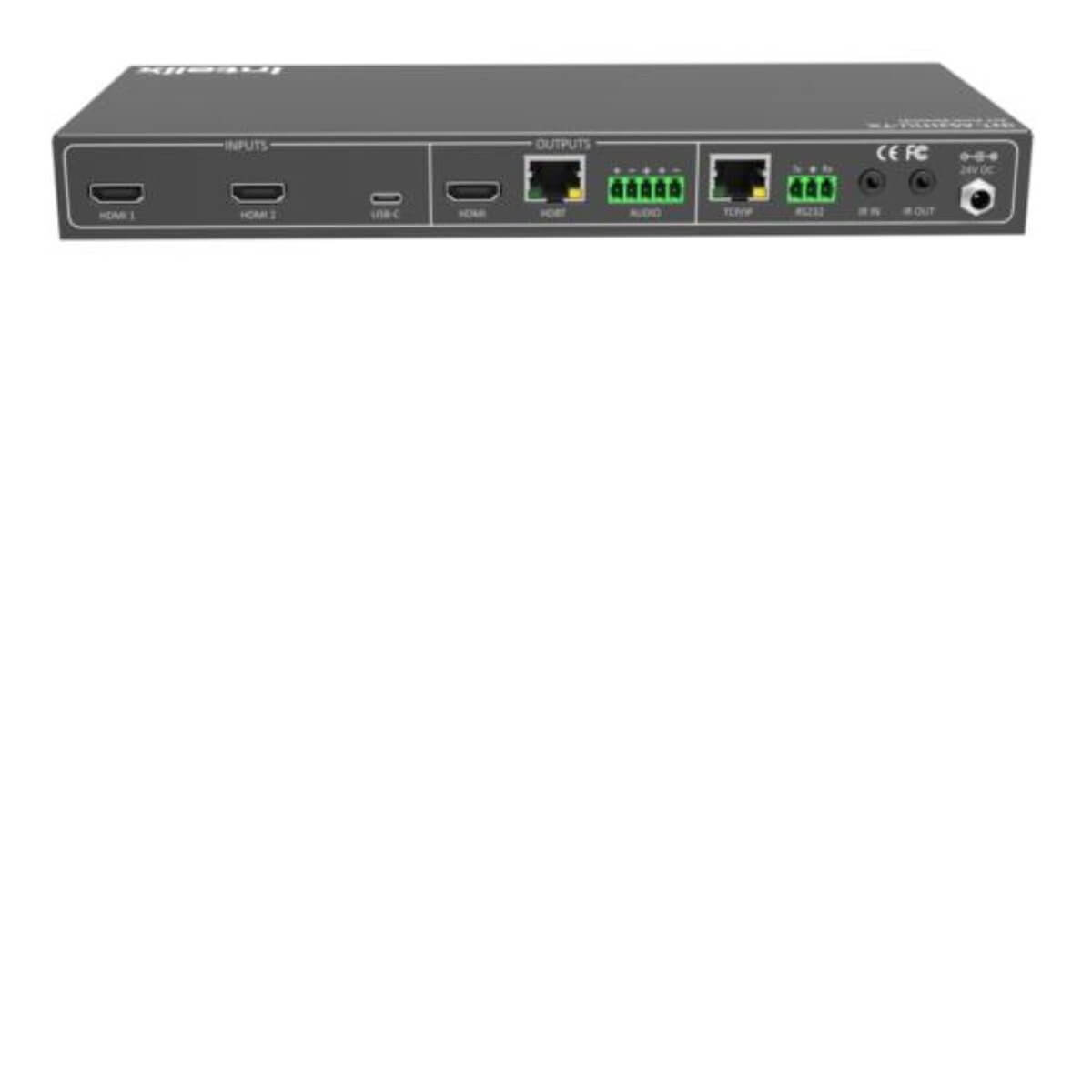

The Intelix INT-AS2H1U-TX is a 3x1 A/V auto switcher that features two HDMI inputs, one USB-C input, one HDMI output, one HDBaseT output and one balanced analog audio output. The USB-C input supports ALT-DP mode and can also charge a connected source device up to 40 watts. The built in HDBaseT transmitter output can transmit HDMI or USB-C audio and video, RS232 and bi-directional IR over a single solid core shielded Category cable to a compatible Intelix HDBaseT receiver up to 70 meters or 230 feet. The INT-AS2H1U-TX supports 1080p video signal up to 70m/230' and 4K signals up to 4K@60Hz / 4:2:0 / 8 bit color up to 40m/130'. The switcher supports CEC pass through (HDBaseT receiver only) and is HDCP 2.2 compliant. A built in web GUI allows easy configuration of A/V routing, EDID, display on/off automation, network and HDCP features. 48V PoH is built in to allow the INT-AS2H1U-TX HDBaseT transmitter output to power a compatible Intelix receiver. The switchers functions can be controlled by built in web GUI, RS232 or by TCP/IP. The INT-AS2H1U-TX can also manually control a connected display to the HDBaseT receiver via CEC or RS232 or can be configured to automate the display ON/OFF whenever a video signal is introduced or absent from the switcher system.
Specifications
- Mirrors HDBaseT output
