JBL Control 47LP
6.5" 2-Way In-Ceiling Low Profile Loudspeaker 120 - Pair

Description

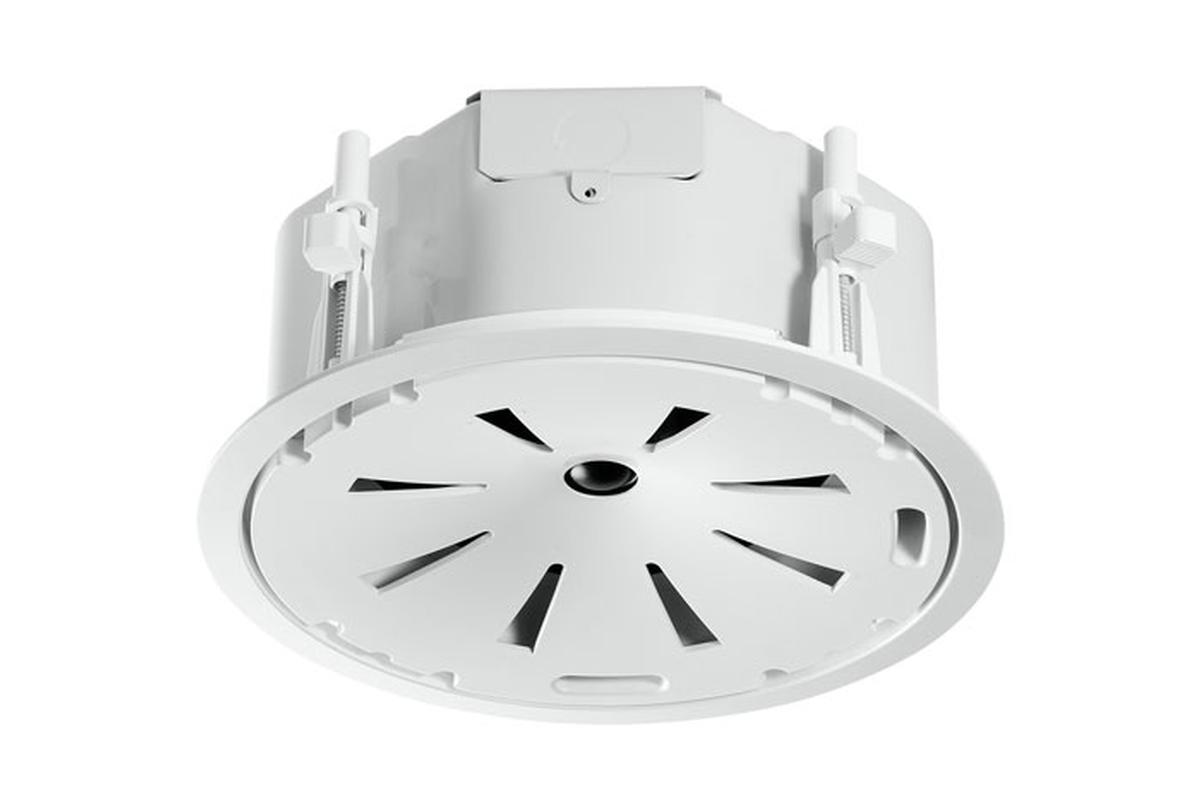

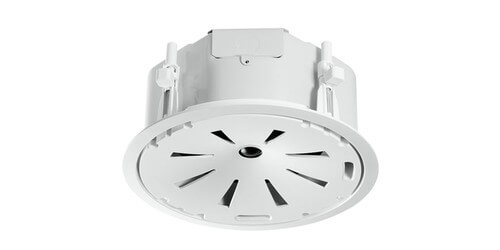

The Control 47LP from JBL is a professionally made 6.5" in-ceiling loudspeaker. This speaker was made with a very low profile, discreet, slim backcan design, to allow it to fit into ceilings that do not have a lot of head space in the ceiling. The Control 47LP features a 6.5" woofer and 1" tweeter to which provides a wide frequency response. JBL uses an exclusive Radiation Boundary Integrator (RBI) technology provides consistent coverage of the listening area that offers a wide 120 degree pattern. Coming as a pair, these loudspeakers can be used in a wide range of settings as they can operate both in 70 and 100V modes, for use in distributed line systems, or in standard 8 ohm mode for use with a variety of sound systems.

Specifications

• Sensitivity: 91 dB, 1W, 1m
• 70V/100V Taps: 60W, 30W, 15W (7.5W at 70V only)
• Coverage: 120 Degree conical, consistent broadband
• Nominal Impedance: 8 ohms
• Termination: 2 x Removable Locking 2-Pin Connectors with Screw-Down Terminals
• Included Accessories: C-rings, 2 tile rails, paint shield, cutout template, Grille
• Dimensions: 12.0 in x 5.6 in
• Warranty: 5 Years

Downloads

• JBL Control 47LP Specifications (PDF)
• JBL Control 47LP Manual (PDF)
