KanexPro HAECOAX
Audio De Embedder with 3D Support
Part #: HAECOAX
Satisfaction Guaranteed!
Our Price:
$94.45
Top HAECOAX Specifications
- De-embeds HDMI audio output simultaneously to Stereo and S/PDIF
- Converts 2CH from 24-bit up to 192 kHz audio
- HDCP compliant
- Supports 3D and CEC pass-through
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008
Description

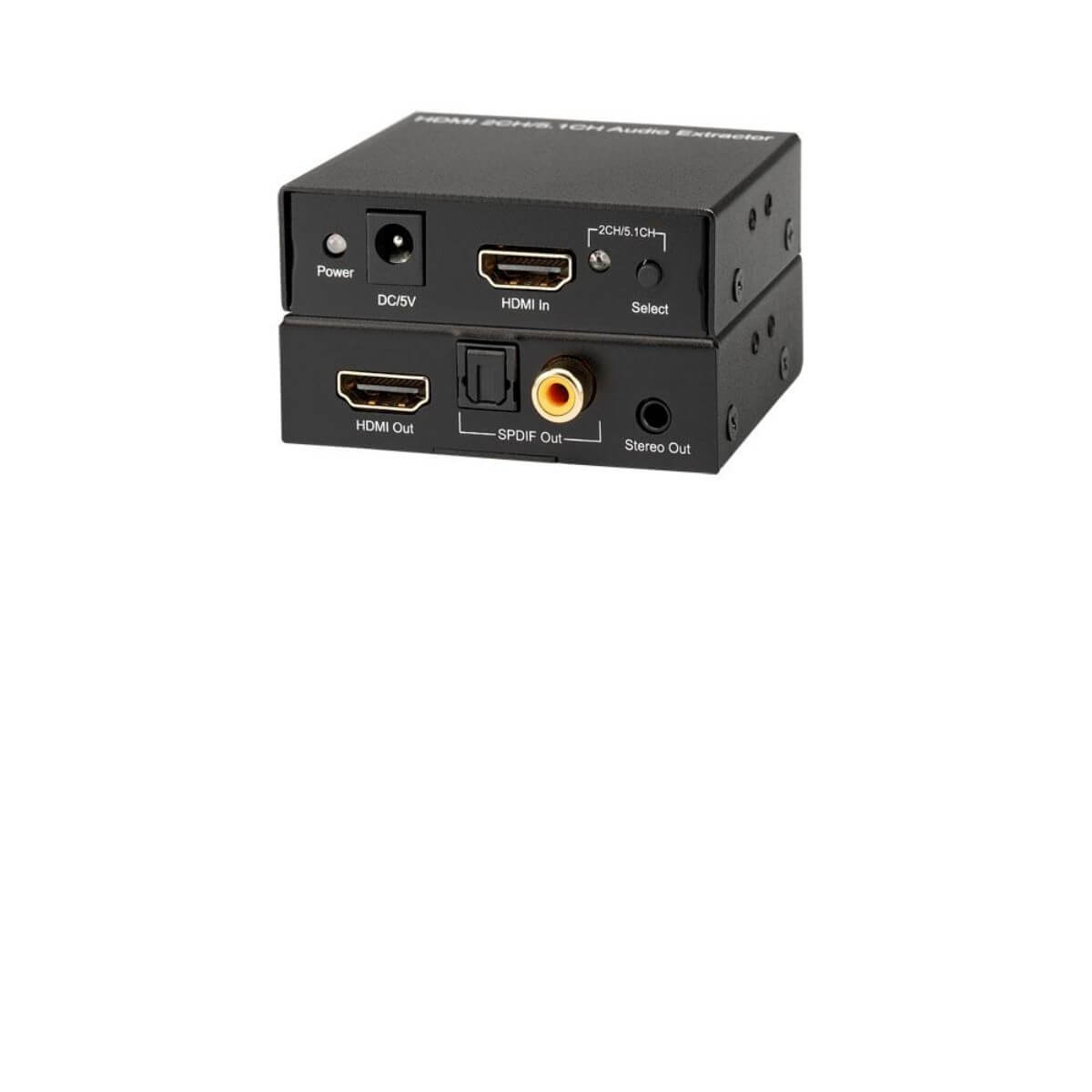

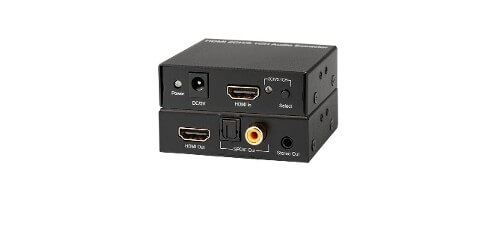

The KanexPro Audio De-Embedder is a simple device, designed to extract HDMI audio from HDMI signals. It outputs to analog 2-channel stereo or to digital S/PDIF providing multichannel audio up to 5.1 surround sound. Supports data rates up to 6.75 Gbps to all channels with HDMI 1.3 Deep Color. The audio de-embedder is HDCP compliant, displaying resolutions to 1080p/60 and PC resolutions up to 1920x1200.
Specifications
- Supports selectable audio through switching
- Audio: 2.0CH/5.1CH selection through
- HD resolution to full 1080p/60
- Supports data rates up to 6.75Gbps
- Automatic cable input equalization
- Supports Color Depth up to 12-bit per channel (36-bit all channels)
- Supports uncompressed audio such as LPCM
- Supports compressed audio such as DTS Digital, Dolby Digital
