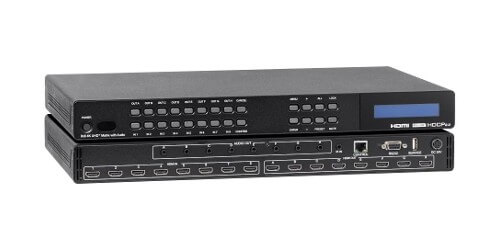

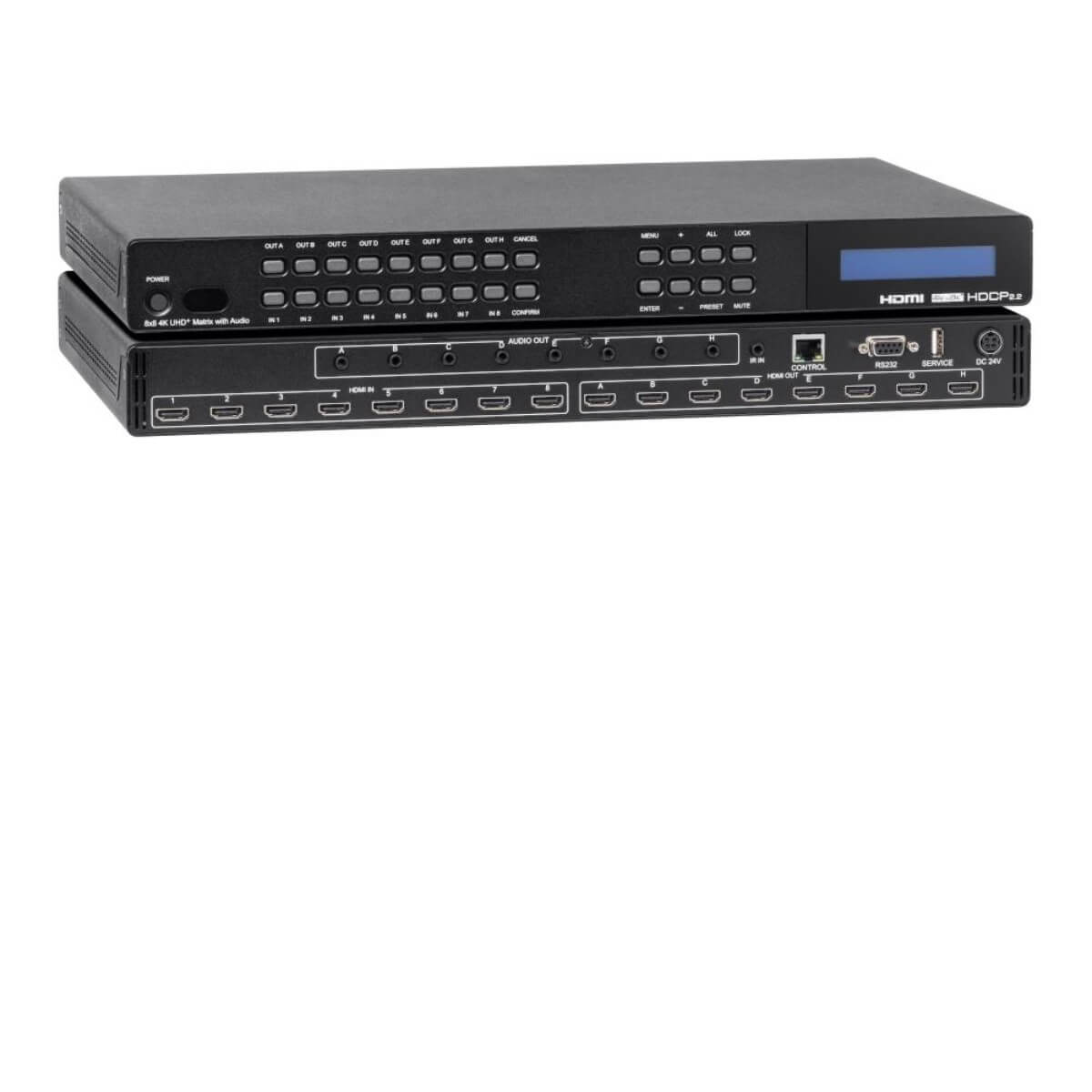

KanexPro HDMX88A-18G
KanexPro Ultra Fast 8x8 HDMI Matrix Switcher with Audio Extraction 4K 60Hz
Part #: HDMX88A-18G
Satisfaction Guaranteed!
Our Price:
$3,149.95
Top HDMX88A-18G Specifications
- Cross-switch 8HDMI inputs to 8 HDMI outputs with 4K @60Hz
- Distribute 4Kx2K@60Hz signal up to 5m via HDMI port
- Supports standard 1080p and WUXGA resolutions up to 2560x1080@60Hz
- 2 Channel analog audio outputs on each HDMI output channel
"Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The KanexPro HDMX88A-18G is a professional 8-input, 8-output HDMI matrix featuring HDCP 2.2 with the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz. This matrix switcher supports switching speeds to less then 0.2 seconds. The matrix can be fully controlled via RS-232, IR and Web based GUI using Ethernet where end-users can switch, control and manage the matrix using graphical and visual indicators right from the computer or touch-panel.
Specifications
- HDR, DolbyVision and HDCP 2.2 Compliant
- Smart EDID DIP switch for proper display output
- Supports latest High Speed HDMI 2.0 specifications
- Supports Dolby Digital, DTS, DTS-HD
- Control thru front-panel keys, IR, RS-232 and Web based GUI
- Front-panel LCD screen provides real-time I/O connection status
- Expedient firmware upgrade thru Micro USB port
- 1U (19") rack mountable aluminum enclosure
- Universal RS-232 code compatible with any 3rd party control systems
- Locking HDMI and Power supply
- Internal Universal power for worldwide compatibility
