KanexPro WP-EXTHDBTKIT
KanexPro Single HDMI 2 0 Wall plate HDBaseT POC Set
Part #: WP-EXTHDBTKIT
Satisfaction Guaranteed!
Our Price:
$524.95
Top WP-EXTHDBTKIT Specifications
- Single Gang, One HDMI Input wall plate over HDBaseT and Rx Set
- Extend 4K/60 w/ 4:4:4 up to 40 meters (130ft.)
- Extend 1080p/60 w/ 4:4:4 up to 70 meters (230 ft.)
- Supports the latest HDMI 2.0 Specs with 18 Gbps bandwidth
"Love the products we've ordered- they've been awesome!"
Contact a product specialist!
Proudly supporting our customers since 2008
Description

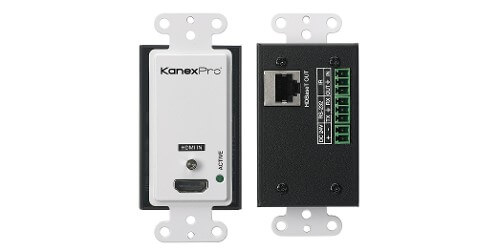

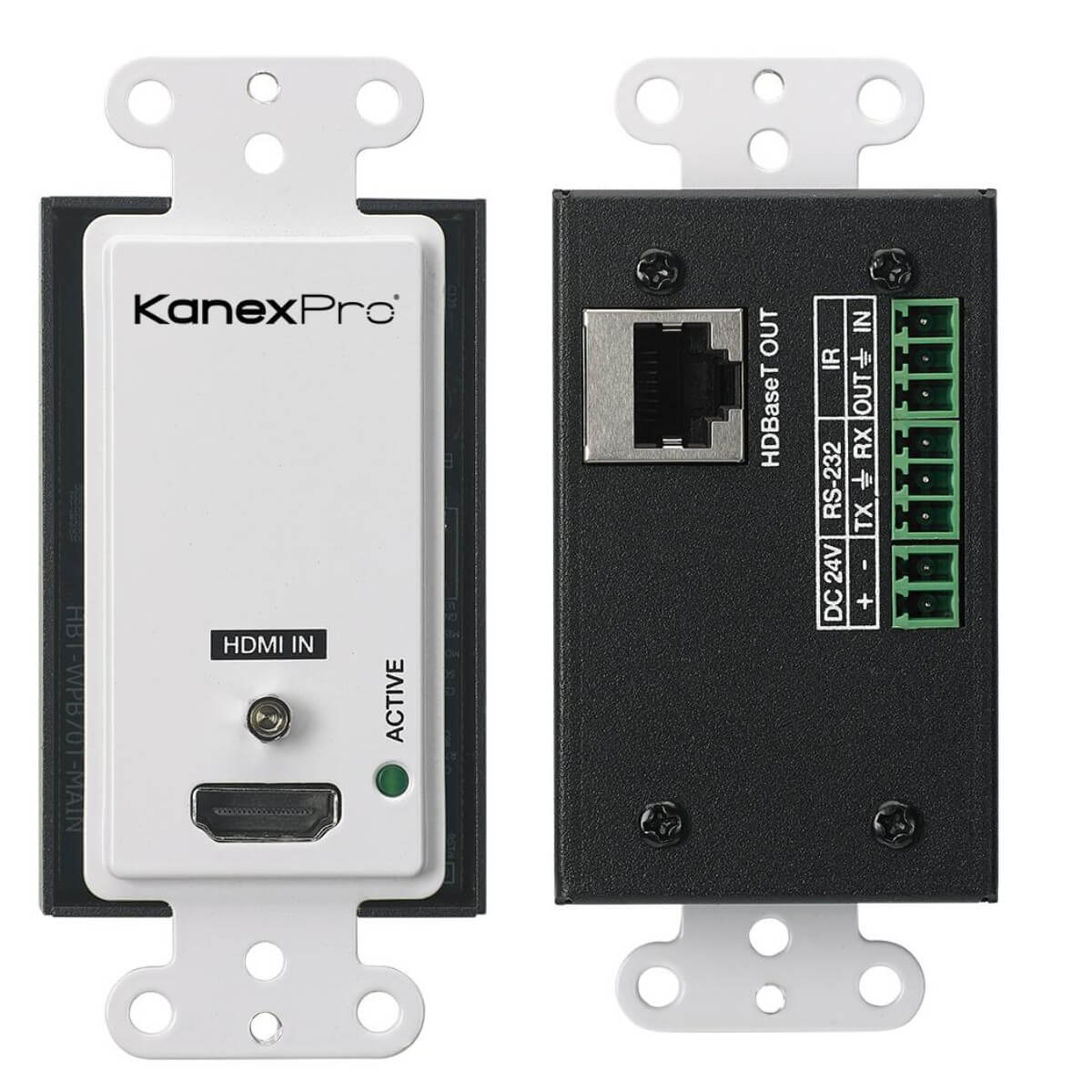

The KanexPro WP-EXTHDBTKIT is a US Decora style single gang HDMI 2.0® wall plate transmitter - receiver set designed for connecting one HDMI device such as a laptop, Blu-ray, or a 4K media player remotely over CAT5/6 up to 230 ft. (70 meters). The outputs is via HDBaseT port and the receiver is included in the box. It supports full 18 Gbps bandwidth with true 4K video resolutions up to 4/60Hz, HDCP 2.2 compliant and will extend 4K up to 40m delivering color sampling rate of 4:4:4.
Specifications
- Digital Audio Support up to 7.1 channels of HD audio
- HDCP 2.2 /1.4 Compliant
- Bi-directional IR and RS-232C
- Remote power support thru PoC (Either from Tx or Rx)
- POC Power consumption is less than 10W
- Simple point-to point transmission over CAT5e/6
- Active LED status indicator
