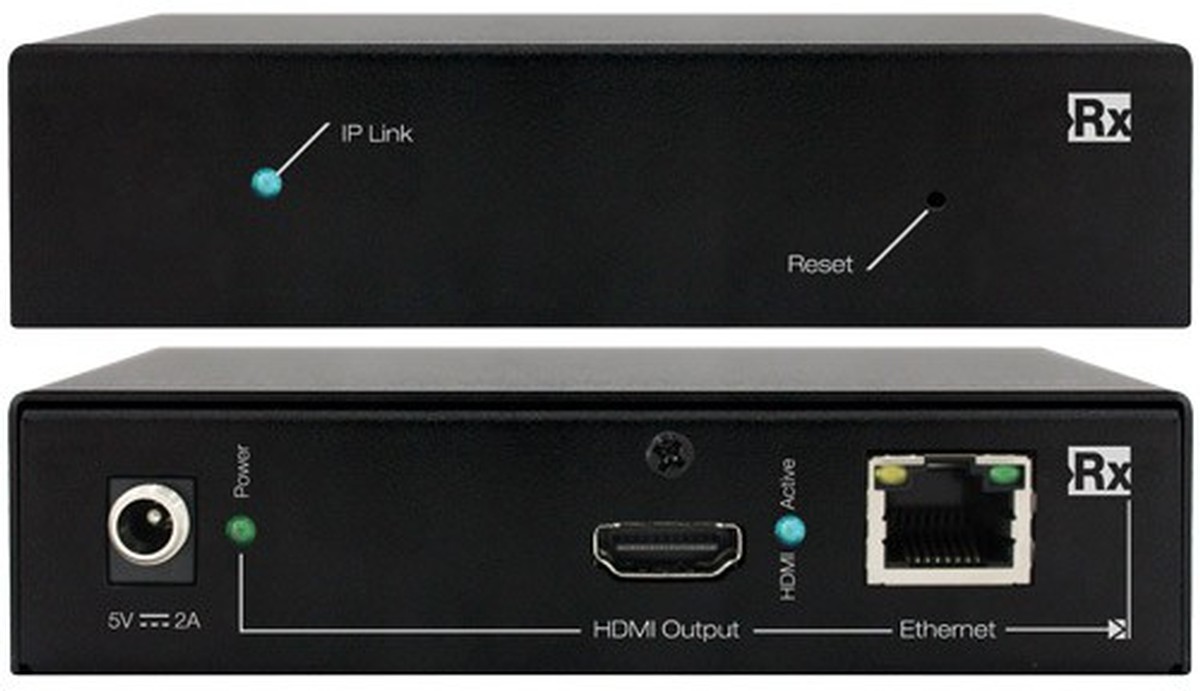

Key Digital KD-IP1080RX
HDMI over IP Receiver Extender, PoE & Redundant Power
- Receiver Input: 1 CAT5e/6 on RJ45
- Receiver Output: 1 HDMI Connector, Type A, 19 Pin Female
- Resolution Support: Supports up to 1080p@60 (2.25Gbps)
- Connectivity: Can be connected through a network IP switch or point-to-point
-Brandon K.
Description
Featuring the Key Digital KD-IP1080RX AV over IP Receiver Range Extender. This quality built unit has been designed to connect and receive HDMI signals through a network IP switch or point-to-point connectivity. It features H.264 compression standards that are ideal for large video distribution applications, as well as low bandwidth systems that support managed 100BaseT or Gigabit network switches. AV over IP systems can be scaled virtually infinitely to fit any installation size, and additional units can be added to expand your HDMI over IP setup, with a possible 1024 Transmitters being added on and unlimited amount of receiver units. Using a Power over Ethernet enabled smart managed switch users can carry power to Transmitter and Receiver units. Alternative Extension Methods enabled by low bandwidth data streaming technology include a Wifi Extender up to 100', and IP over coax up to 1000'. This Key Digital AV over IP Receiver will support resolutions up to 1080p@60 (2.25Gbps) and is compatible with DVI 1.0, HDMI, HDCP, with a data stream bandwidth less than 15Mbps. Using CAT5e/6 UTP/ STP signals can be extended up to 400' at the 1080p@60 resolutions.
Specifications
- Audio Format: Supports 2ch PCM at 44.1/48kHz
- Data Stream Bandwidth: < 15Mbps
- Signal Extension: Up to 400' @ 1080p@60 (2.25Gbps) using CAT5e/6 UTP/ STP cable
- Web Control Interface: Reduces installation time and provides basic video setup
- Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID: EDID libraries readily available to provide the best setup per source
- Deep Color Support: Up to 12 bits/color
- Power Over Ethernet: Carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch
- H.264 Compression
- Power: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
- Regulation: CE, RoHS, WEEE Enclosure: Black Metal
- Dimensions: 4.74" x 3.11" x 1.16" Weight: 0.6 lbs
- Warranty: 3 Years
