Key Digital KD-MLV4x4Pro
4x4 4K UHD HDMI Seamless Matrix Switcher

Description

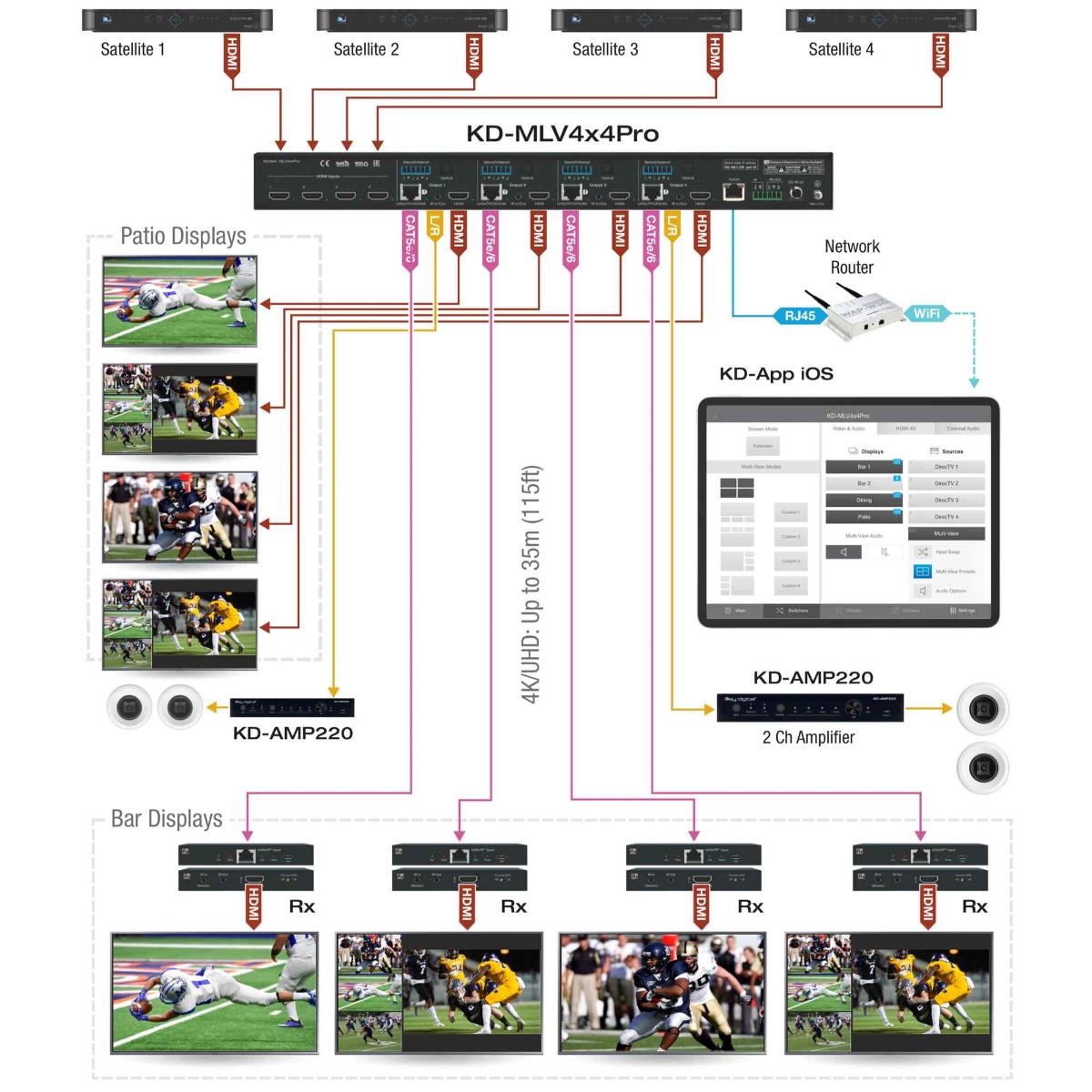

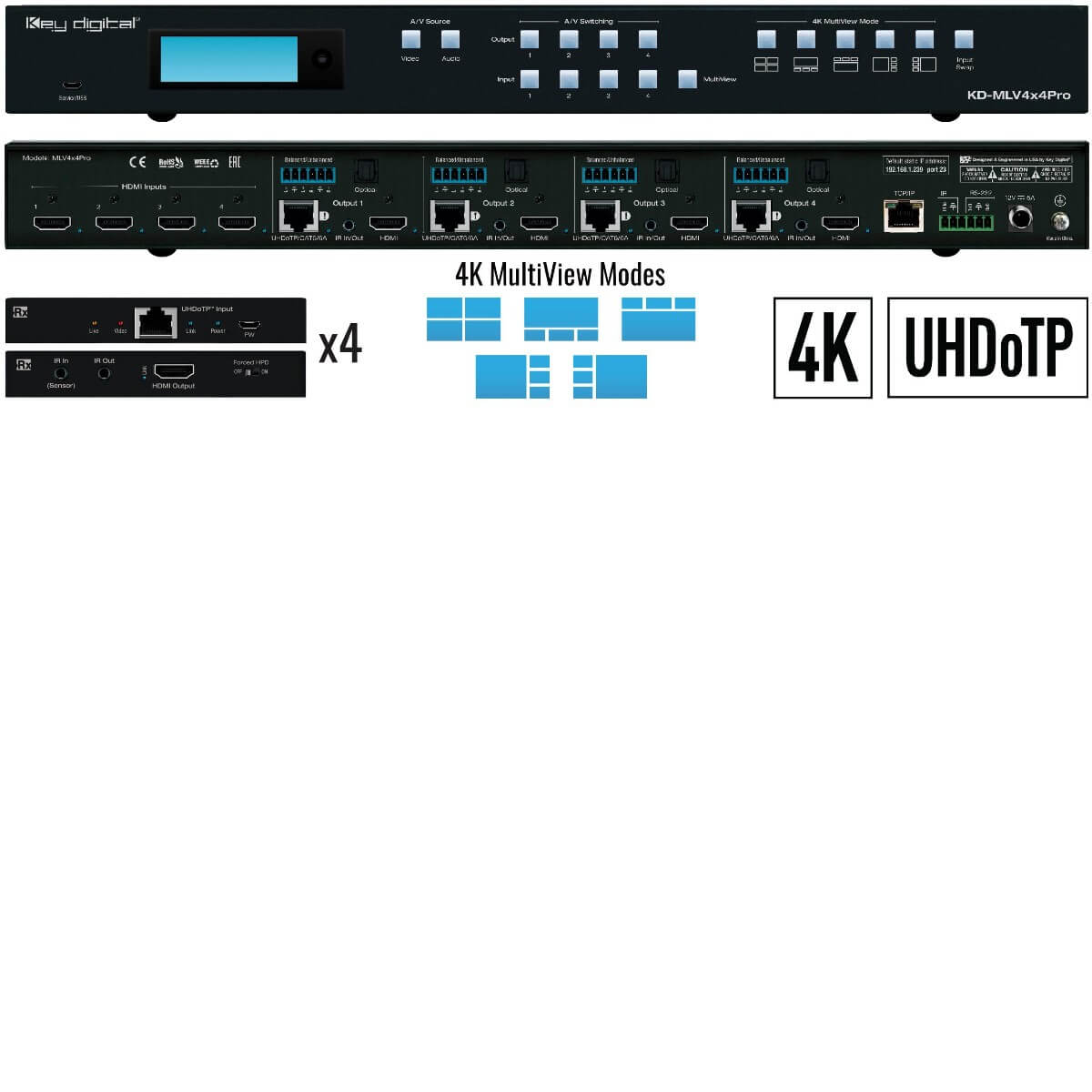

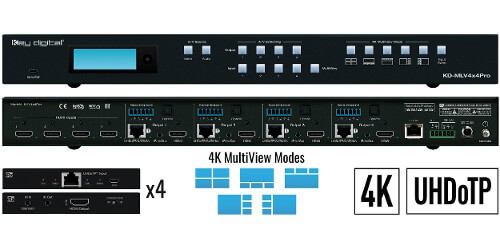

Key Digital’s KD-MLV4x4Pro is a 4 HDMI input with 4 HDMI + 4 UHDoTP mirrored output matrix, multi-view tiling video processor, and independent audio routing. KD-MLV4x4Pro is perfect for applications like Sports & Gaming Caves, Bar & Restaurant, Corporate AV, House of Worship, Entertainment Centers, Museums, and E-Sports. Or, simply use KD-MLV4x4Pro to deliver wowfactor to your distributed video systems. The multi-view tiling processor enables users to view up to 4 video sources at the same time on a display in different default and custom layout presets. Custom and multi-view layouts include the option to layer content, applying desired bezel frame width and color. 4K / UHD content up to 3840 x 21640p 4:2:0 at 60fps is supported and when in full-screen mode switching from source to source is completely seamless. Integrate with legacy displays or projectors by applying 4K to 1080p or 720p down-conversion as needed. Each output has mirrored HDMI and UHDoTP connections, for a total of 8 possible connected displays. Four (4) Receiver units are included, and they get their power from the main unit for ease of installation.

KD-MLV4x4Pro supports independent audio routing with de-embedding on analog balanced/un-balanced and digital optical connections and surround formats up to 5.1 Dolby® / DTS™. Audio from any source may be selected while in multi-view mode. For ease of installation and viewing, KD-MLV4x4Pro features 9 built-in test patterns and optional on-screen display text for each source.

KD-MLV4x4Pro supports HDCP 2.2, provides EDID handshaking to the connected source from a library of 8 AV profiles or a copy of any connected display’s EDID file. IR from a control system may be input at KD-MLV4x4Pro and extended to control the displays connected to the KD-EXMLVRx units

Specifications

• Built-In UHDoTP Tx with PoC: 4 included KD-EXMLVRx units are powered by KD-MLV4x4Pro
• Mirrored Outputs: Simultaneously active HDMI + UHDoTP connections per output show same AV signal at same time for a total of 8 possible displays connected
• Independent Audio Matrix: Audio output ports may be routed separately from HDMI & UHDoTP ports. Audio from any source may be selected while in multi-view mode
• Video Resolution: Up to 3840 x 2160p 4:2:0 at 60fps supported on inputs & 3840 x 2160p 4:4:4 at 30fps supported on outputs
• Signal Extension over CAT: 4K/UHD up to 35m (115ft) using CAT5e/6, up to 40m (131ft) using CAT6A STP, 1080p up to 50m (164ft) using CAT5e/6, up to 60m (197ft) using CAT6A STP
• Text Overlay: Assigned name of each source may be displayed in each window. 16 Characters maximum with variable sizing and location settings
• 4K Down-Convert: Integrate 4K sources with legacy 1080p & 720p displays
• Image Layering: Stack images with customizable priority settings per output
• Custom Layouts and Border: Create custom Window layouts and choose window bezel width and coloring
• HDCP 2.2 Licensing: Fully licensed and compatible with HDCP 2.2
• Built-In Test Patterns: 9 selectable test screens help expedite installation
• IR Extension: Extend IR via Rx units to control displays or collect IR from remote to control a source at matrix
• Web UI: Control AV routing and other basic functions from any web browser
• Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs
• Dolby Digital & DTS Audio: Supports 2-channel and multi-channel surround formats up to 5.1 Dolby / DTS
• Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control
• Key Digital App Ready: Can be controlled over TCP/IP via Key Digital App
• Control System Support: Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API
