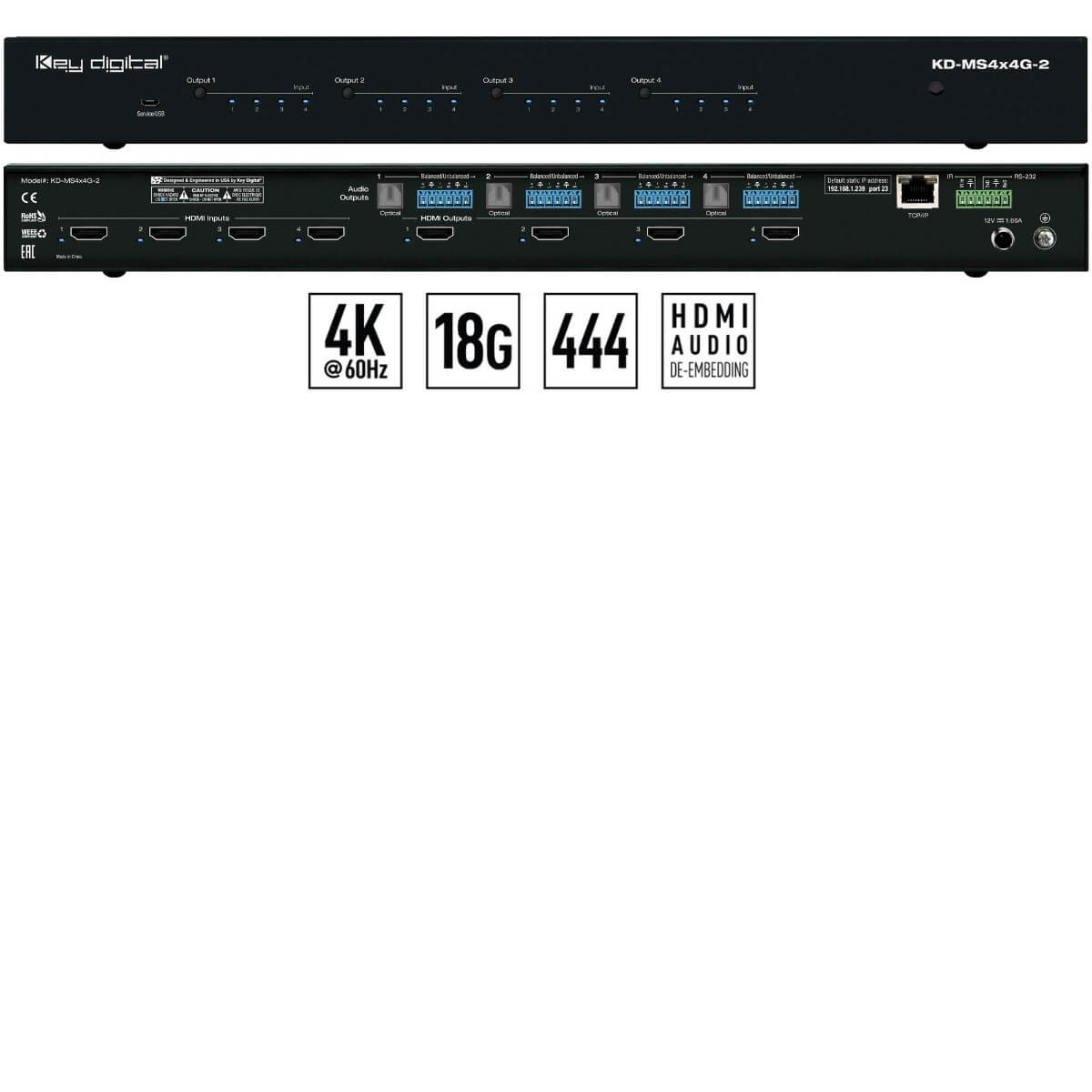

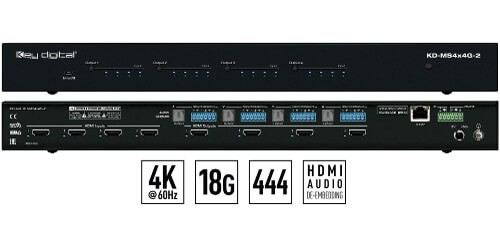

Key Digital KD-MS4x4G-2
4x4 4K 18G HDMI Matrix Switcher

Description

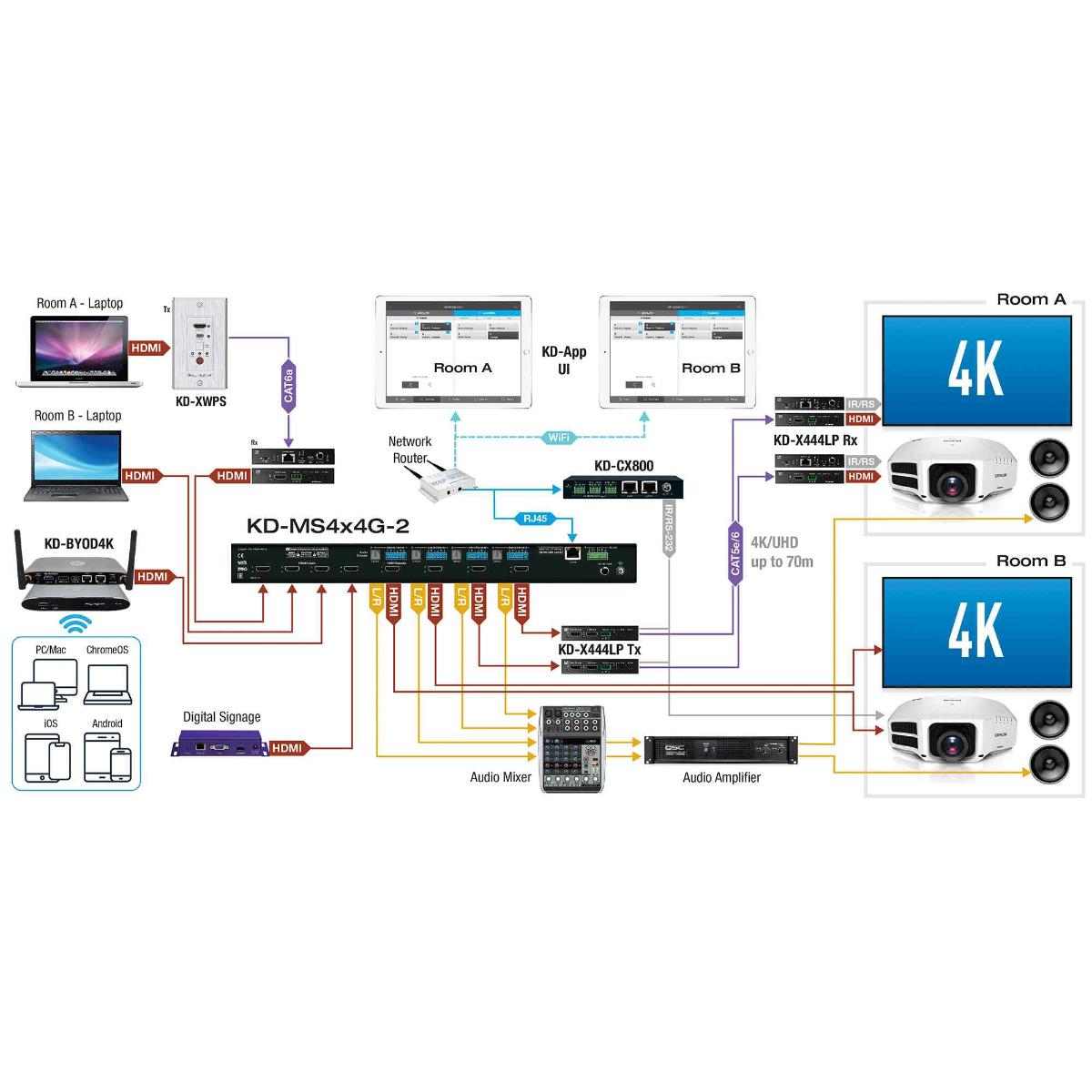

Key Digital’s KD-MS4x4G-2 is a 4K matrix switcher with support of 18Gbps signal bandwidth and HDCP 2.2 for routing and distributing 4 HDMI source signals to 4 displays. KD-MS4x4G-2 features 4 analog balanced/unbalanced and optical digital audio outputs which may be independently controlled to follow the HDMI output selection or separately switched to accommodate a wide variety of usage applications in professional AV systems integration. KD-MS4x4G-2 supports all SD, HD, VESA and Ultra HD/4K video standards up to and including UHD/4K 18G and 1080p. All UHD/4K EDID handshake files include HDR header information.

Specifications

• Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
• Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
• Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs
• Independent Audio and Video Matrix: Output HDMI and Audio ports may route together or independently
• Dolby Digital & DTS Audio: Supports 2-channel and multi-channel surround formats up to DTS-HD Master Audio , DTS:X , Dolby TrueHD, Dolby Atmos
• Web UI: Control AV routing and other basic functions from any web browser
• Key Digital App & KDMS Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital App and Key Digital Management Software Pro (KDMS Pro) PC setup Software

Downloads

• Key Digital KD-MS4x4G-2 Specifications (PDF)
