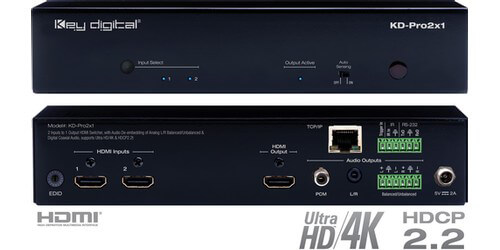

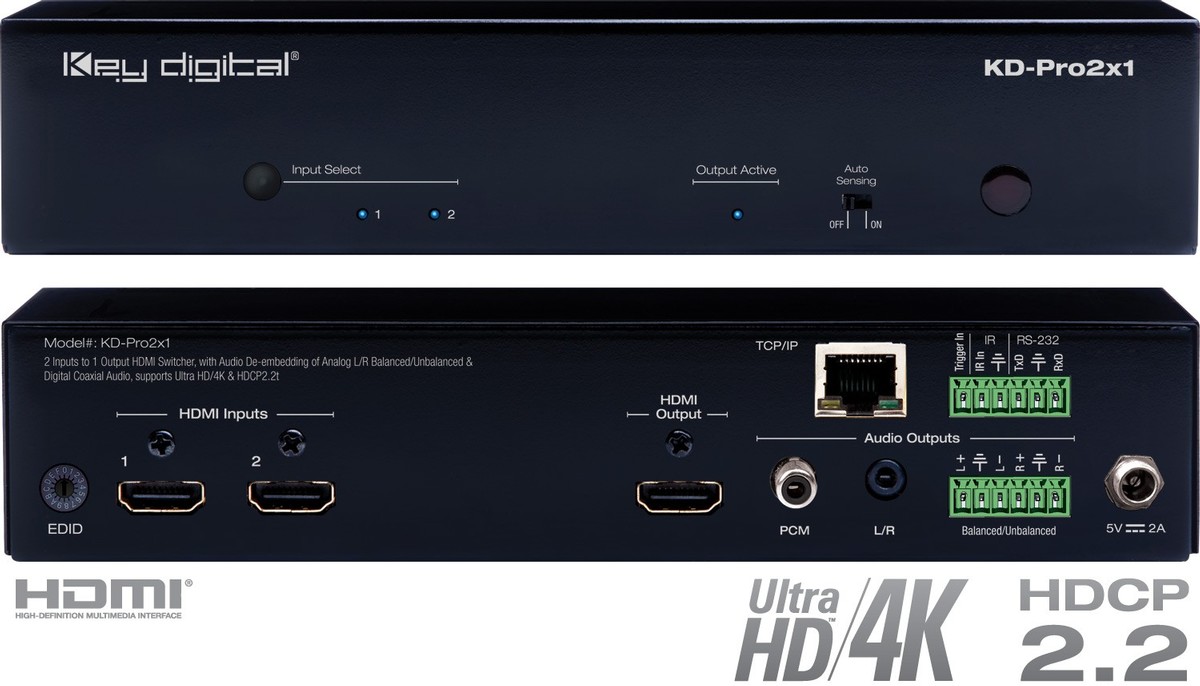

Key Digital KD-Pro2x1
2X1 HDMI Switcher, Ultra HD/4K & HDCP2.2, Audio De-embed
- Inputs: 2 x HDMI
- Output: HDMI
- Bandwidth: 18 Gbps
- HDCP 2.2 Compatible
Description
The KD-Pro2X1 2 input 1 output HDMI Switcher from Key Digital is a 4K/60 4:4:4 capable device that will support all SD, HD, and VESA resolutions and features a TMDS bandwidth of 18 Gbps. This video switcher was designed to switch between 1 or 2 HDMI sources to 1 HDMI output/display and utilizes audio de-embedding of analog L/R balanced/unbalanced & digital coaxial audio. Supporting HDCP 2.2 this amazing device is HDR10 (High Dynamic Range) capable allowing for extremely pristine image quality through a greater range of luminance levels. Deep Color is supported with ranges up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit as well as 3D ready, meaning this switcher has the capability to pass 3D stereoscopic signal formats as well. Supported lossless compressed digital audio formats include: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos.
Control of the KD-Pro2x1 is both simple and user friendly and can be achieved via the front panel control buttons/LED's, Trigger In, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control. This device uses advanced EDID controls, and comes with a built-in internal library with 15 default EDID handshakes for inputs, in addition to native EDID date for output/display. Furthermore there is a Full Buffer System that manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID control handshake.
Key Digital's KD-Pro2x1 HDMI switchers are designed and engineered to offer the best in quality, performance, and reliability, while providing a cost-effective HDMI switching solution, making this a perfect device for use in bars, restaurants, digital signage type applications, and conference rooms. Comes backed by a 3 year warranty for added peace of mind and protection.
Specifications
- Supported Resolution Formats: all SD, HD, and VESA (VGA, SVGA, XGA, WXGA,SXGA, UXGA)
- Ultra HD/4K Support: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- Audio De-Embedder: Audio from the selected HDMI input is de-embedded through the Coax digital (PCM) or Analog L/R Balanced/Unbalanced
- 3D Ready: Can pass 3D stereoscopic signal formats
- Internal library with 15 default EDID handshakes for inputs in addition to native EDID data for Output/Display
- Supported Lossless Compressed Digital Audio Formats: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
- Control: Front panel buttons/LEDs, Trigger In, Serial IR, Optical IR, RS-232 Control, and TCP/IP
- Enclosure: Black Metal
- Regulation: CE, RoHS, WEEE
- Included Accessories: Power Supply KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
- Dimensions: 8.25" x 4.0" x 1.7"
- Weight: 0.9 lbs
- Warranty: 3 Years
