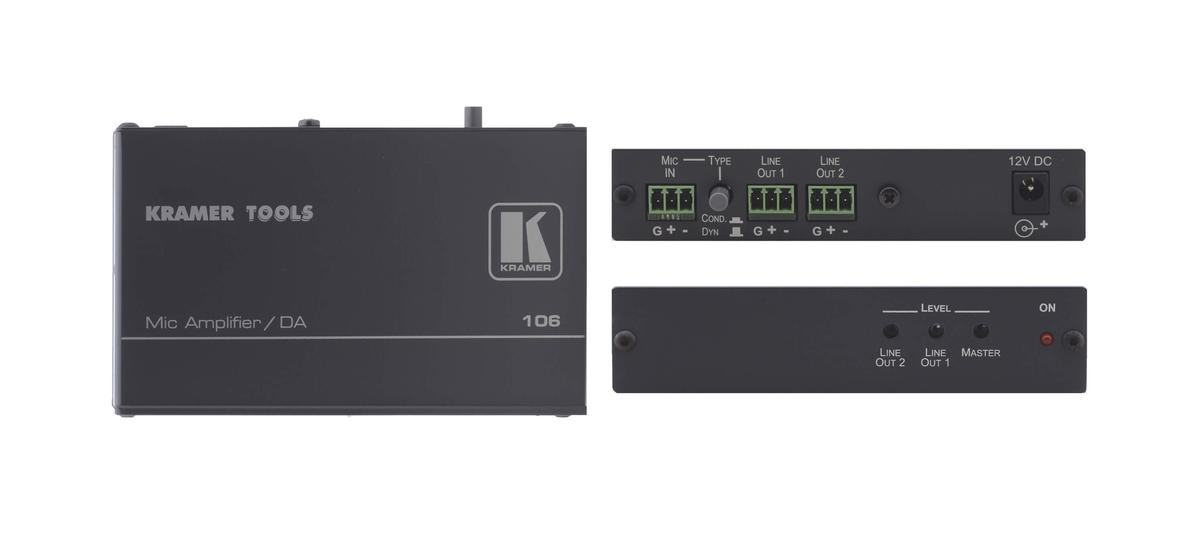

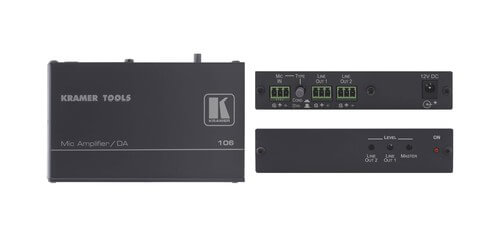

Kramer AV 106
1:2 Microphone Line Amp & Distribution Amplifier
Manufacturer SKU: 90-701390

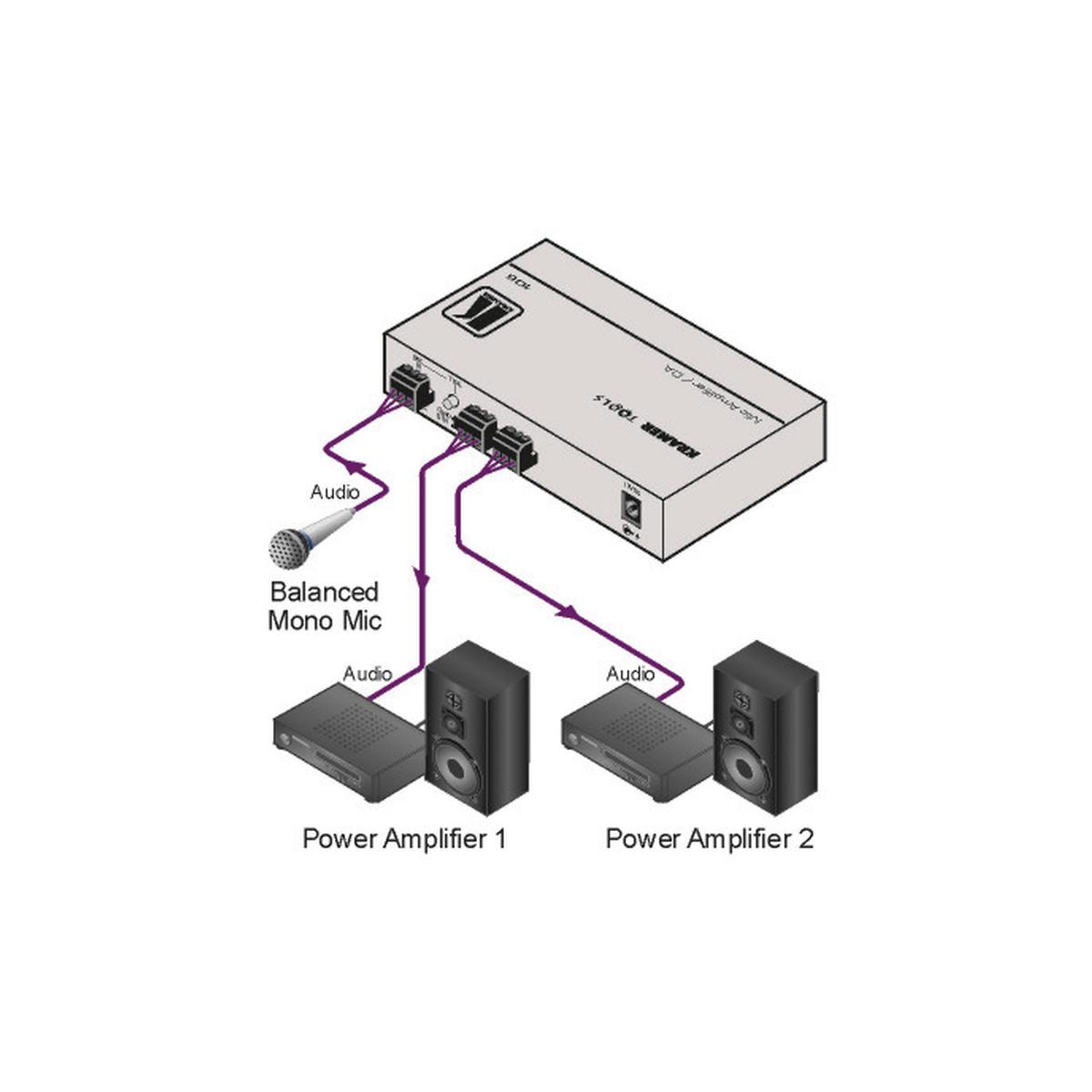

 application diagram.jpg)
Satisfaction Guaranteed!
MSRP: $176.00
Our Price:
$140.80
Top 106 Specifications
- End of Life - Limited Stock - Non-Returnable
- End of Life - Limited Stock - Non-Returnable
- Mic Input Selector: Condenser or Dynamic
- Input: 1 balanced mono microphone on a 3-pin
"Excellent and prompt call back from customer service!"
-Maciej Z.
-Maciej Z.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The Kramer 106 is a high-end distribution amplifier for balanced mono microphone signals. The amplifier works by taking one dynamic or condenser microphone input and then distributes the signal to two line-level outputs. Individual and master output adjustments are achieved through Level (Gain) Controls. The 106 features three trimmers to adjust the LINE OUT audio level, a switch for selecting the type of microphone (condenser or dynamic) and two balanced mono line outputs for power amplifiers, and uses 48V DC phantom power.
Specifications
- Outputs: 2 balanced mono line outputs on 3-pin
- Connectors: Terminal Block
- Max. Output Level: 27Vpp
- Bandwidth: >40kHz
- Level (Gain) Controls: Individual and master output adjustments
- S/N Ratio: 81dB
- Coupling: Input: AC / Output: DC
- Gain: up to 68dB
- Power Consumption: 12V DC
- Included Accessories: Power Supply & Mounting Bracket
- Warranty: 7 Years
