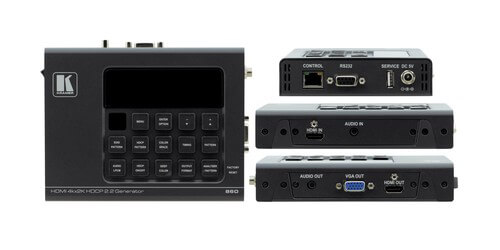

Kramer AV 860
4K60 4:4:4 HDMI 2.0 18G Signal Generator & Analyzer - HDCP 2.2

Description

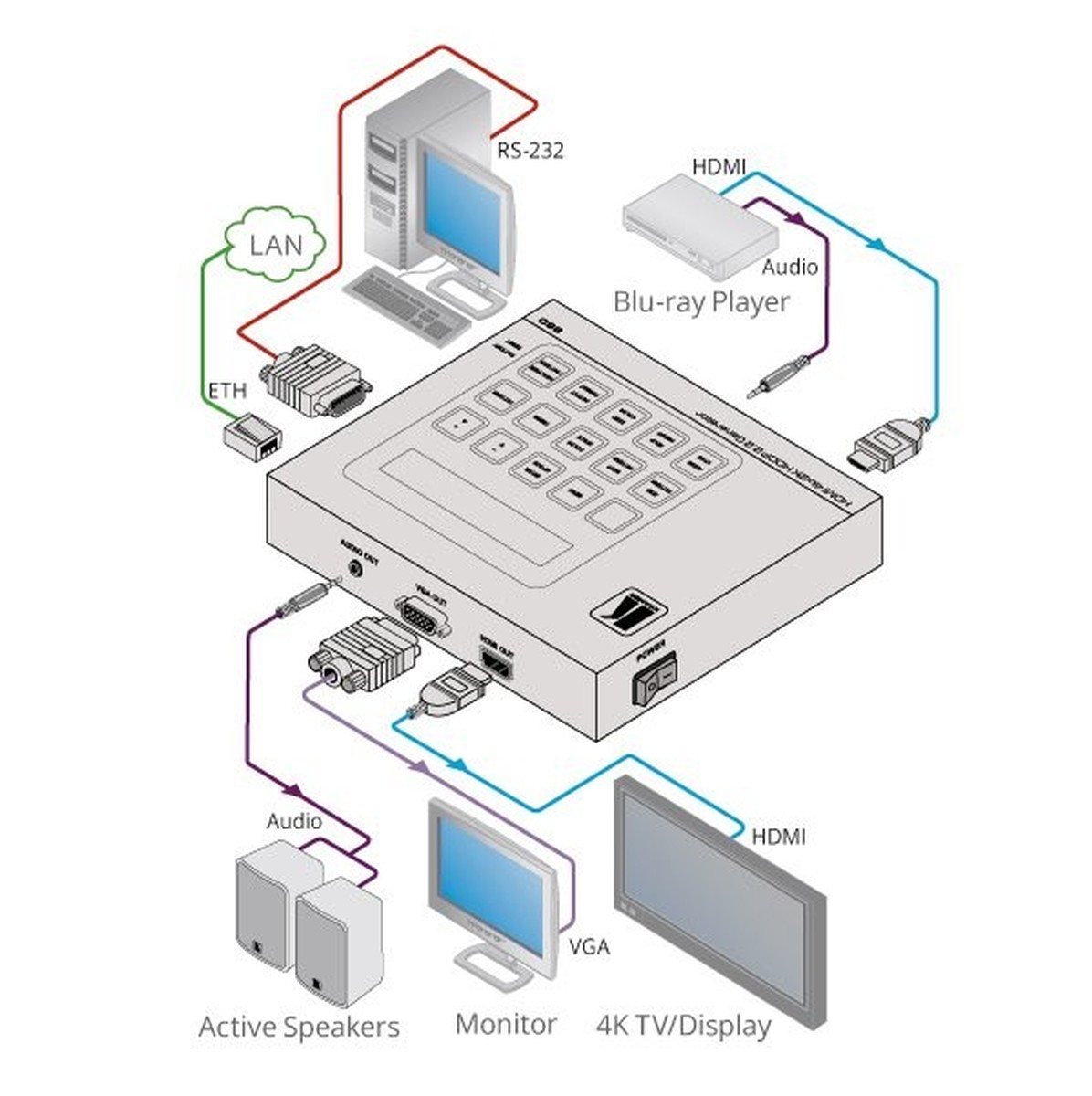

The Kramer 860 HDMI 18G (6G per graphic channel) Signal Generator & Analyzer. This super high-end and advanced signal generator is designed as a tool for generating, testing, and verifying the signal path of users "AV eco system" for resolutions up to 4K60 4:4:4 and HDMI 2.0 / HDCP 2.2. It features 88 built-in resolutions, 55 test patterns and over a dozen types of AV analysis functions, thus providing an enormous range of testing options for end users to choose from. HDMI data packet, EDID and HDCP analysis is supported along with EDID upload and emulation. In addition this signal generator & analyzer allows for the Status and Control Data Channel (SCDC) to be monitored, this allowing HDMI 18G signal detection and analysis. This unit features a very high-quality OLED display that offers rapid updates of current status information as well as a detailed OSD for setting and informational displays. Control of the device is achieved via the front panel, RS-232, Telnet, and IR remote controls with included remote control. Making this a perfect solution for a wide range of uses, to include; Installer/integrator multi-function test tool, HDMI source sink testing, UHD systems/SCDC error identification, HDCP compliance verification, R&D testing, or for source and sink EDID reading, writing and saving.

Additional Features of the Kramer 860 Include:

• Up to 8 channels of LPCM audio test tones can be generated with a wide range of frequencies and audio levels
• Analysis of HDMI Data Packet
• Analysis & Control of HDCP v1.4 and v2.2
• Analysis & Emulation of EDID Data — Including SCDC
• Analysis of Input Audio Signals
• HDR Bypass & Analysis Support
• HDMI Timing Generation — Up to 4096×2160 @60Hz (4:4:4), 8–bit
• Custom User Test Patterns — 640×480 & 1920×1080
• External Stereo Audio Input & Output
• LPCM Sinewave Audio Generation — Up to 8 channels
• USB Firmware & Pattern Update

Specifications

• Standards Compliance: HDMI 2.0, DVI 1.0 and HDCP 1.4/2.2
• Data Path Analysis: Source and sink up to 18G HDMI signals (6G per graphic channel)
• HDMI Timing Generation - Up to 4096 2160 @60Hz (4:4:4), 8bit
• Custom User Test Patterns: 640x480 & 1920x1080
• External Stereo Audio Input & Output
• VGA Output Supports: from 350p up to 2048x1080p
• HDMI Output Supports: from 350p up to 6G4K
• LPCM Sinewave Audio Generation: Up to 8 channels
• Control Options: Frontpanel, RS232, Telnet, and IR remote controls
• OLED Display: With rapid updates of current status information
• Detailed OSD: For settings and informational displays
• USB Firmware & Pattern Update
• Analysis of HDMI Data Packet
• Analysis & Control of HDCP v1.4 and v2.2
• Analysis & Emulation of EDID Data - Including SCDC
• Analysis of Input Audio Signals
• HDR Bypass & Analysis Support
• Power Consumption: 5V DC, 1.6A
• Dimensions: 6.50" x 5.20" x 1.18" W, D, H
• Weight: 1.7lbs
• Included Accessories: Remote Control (LR40), Power Supply
• Warranty: 7 Years

Downloads

• Kramer AV 860 Specifications (PDF)
• Kramer AV 860 Manual (PDF)
