Kramer AV 861
18G 4K HDR Pocket Signal Generator, Analyzer, and Cable Tester

Description

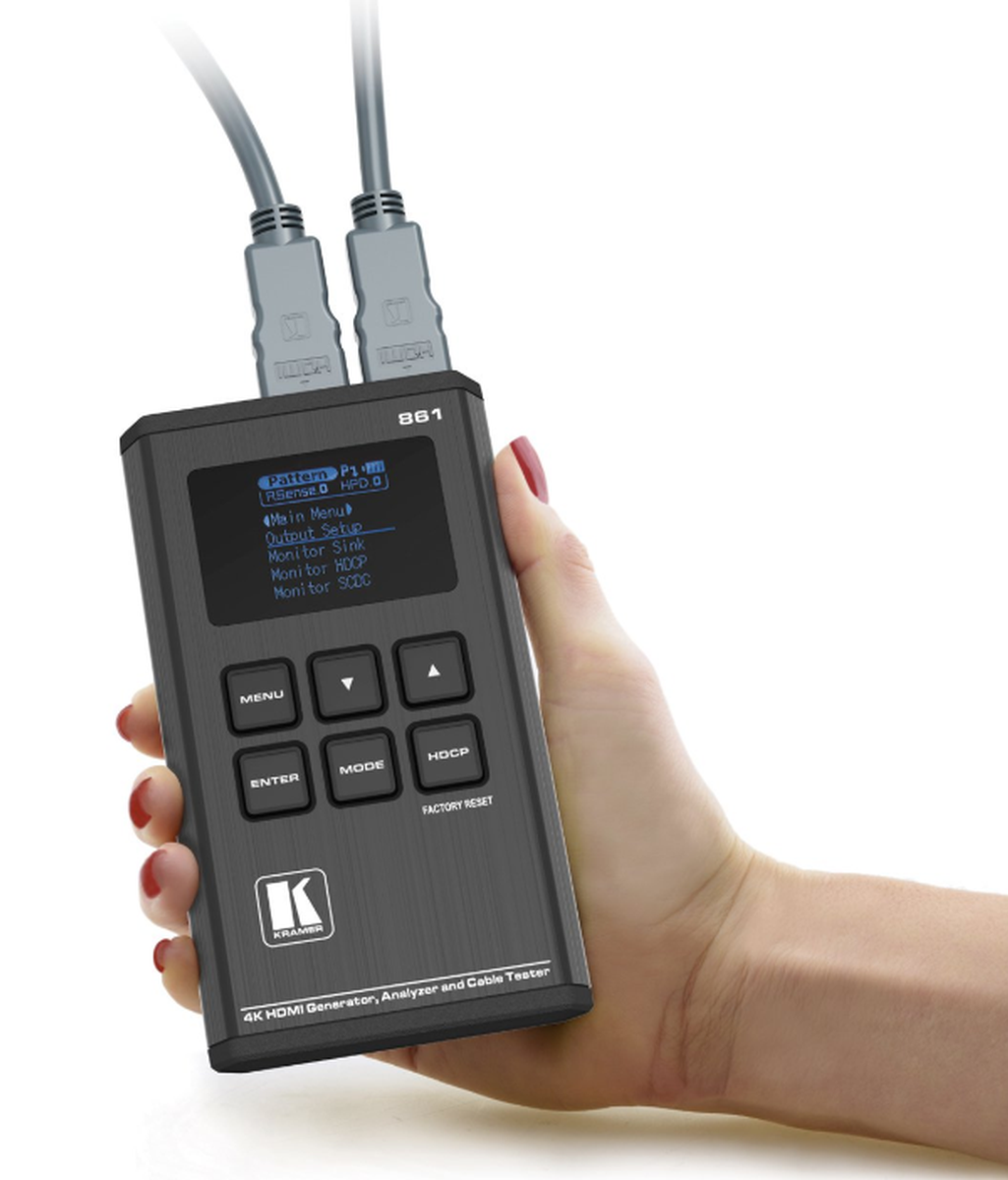

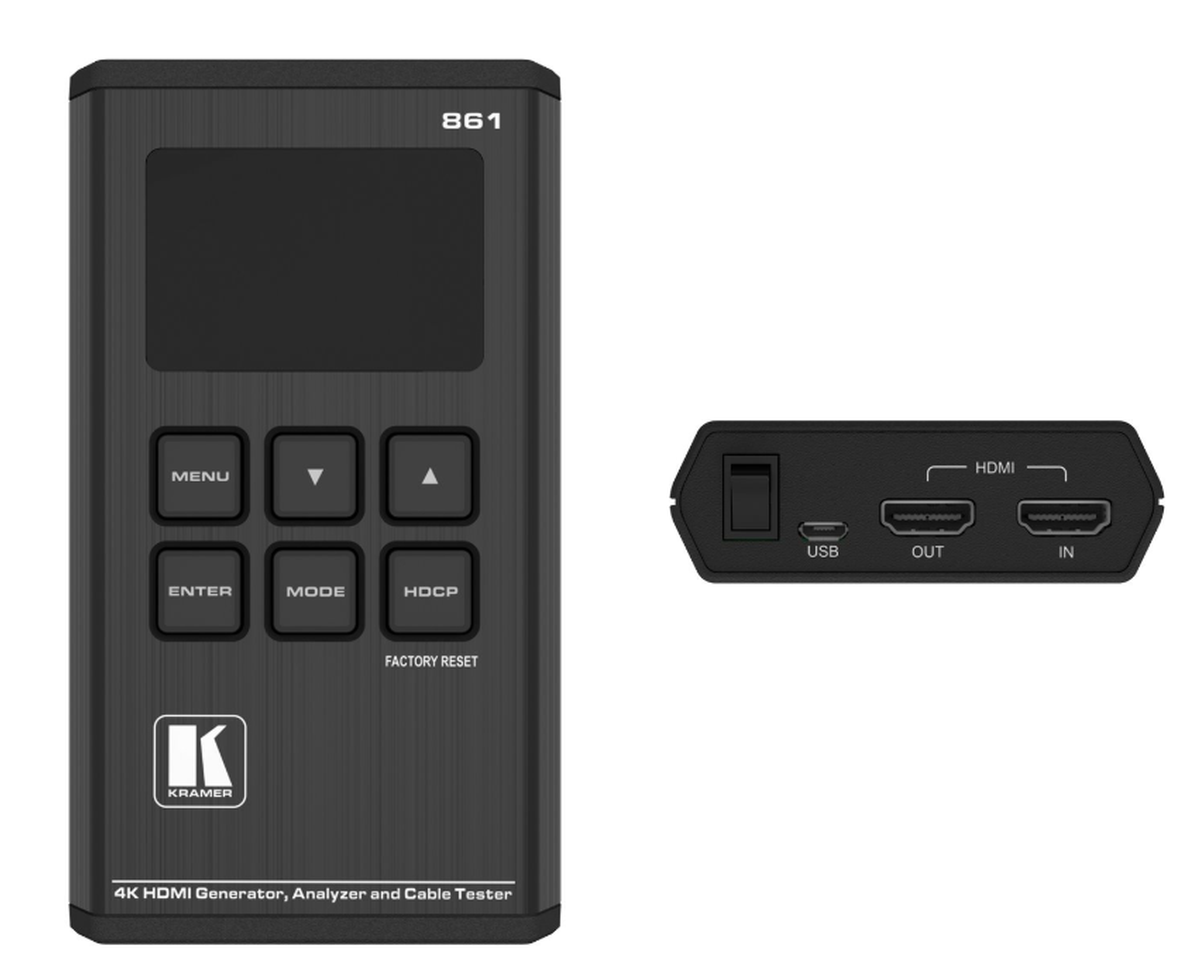

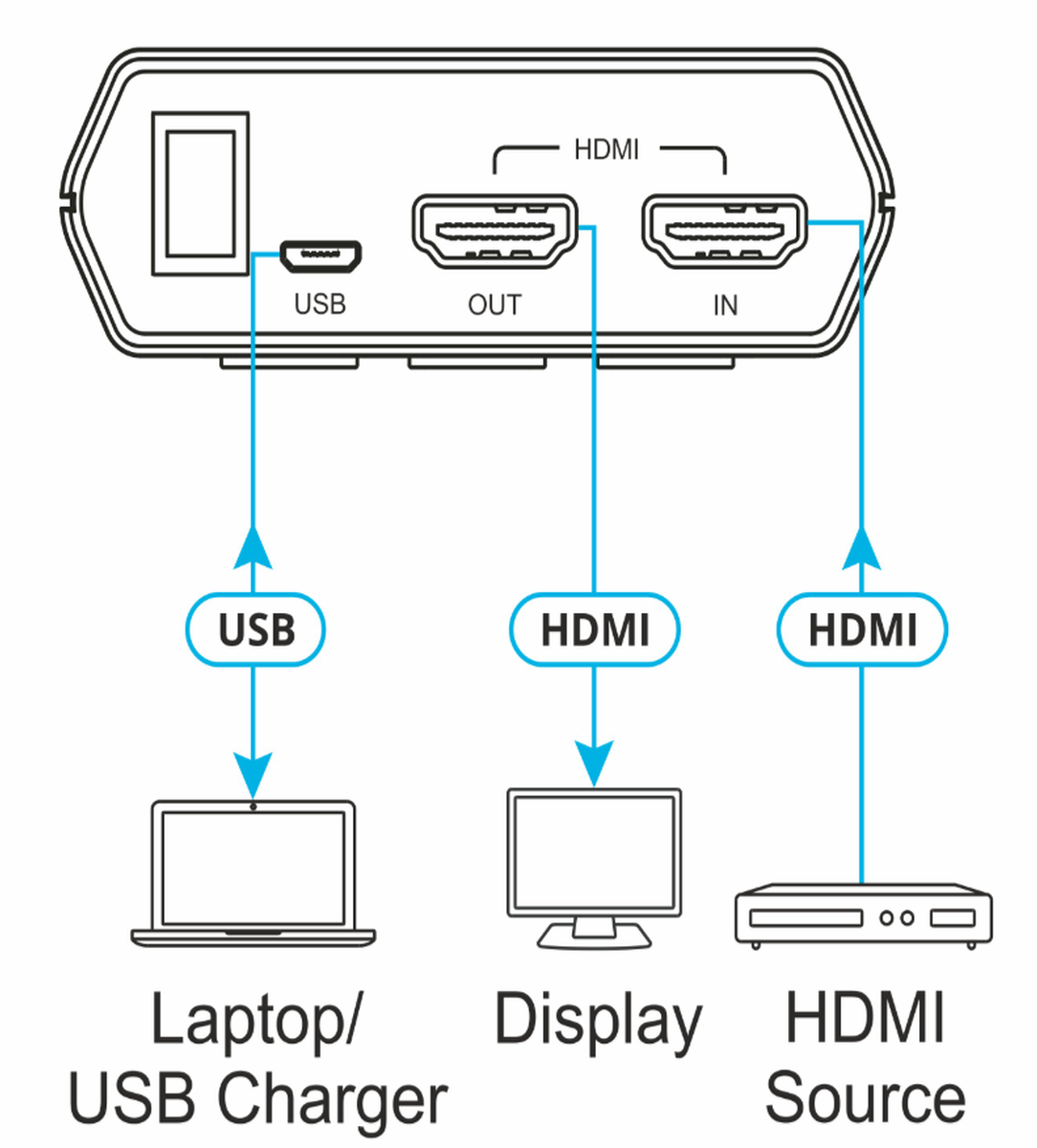

Kramer's 861 is a pocket-sized signal generator, analyzer, and cable tester. The 861 generates, tests, and verifies signal paths within your 4K@60Hz (4:4:4) HDMI 2.0/HDCP 2.2 AV system. Despite its small size, it features 23 resolutions, 12+ AV analysis functions,11 test patterns, and 8 channels of LPCM sine wave audio test tones. This robust array of options is powered by a lithium-ion battery that can run for 5 hours between charges. The 861 can also analyze HDMI data packets, EDID, and HDCP.

Other key features of this multi-tasking tool include the following:

• Cable Tester – Suitable for 4K HDMI cables
• Includes tests for 5V, CEC, and hotplug detection support
• Max resolution – 4K@60Hz (4:4:4)
• HDR10, HDMI 2.0, DVI 1.0, and HDCP 1.4/2.2 Standards compliant
• Data Path Analysis – Source and sink up to 18G HDMI signals (6G per graphic channel)
• HDCP v1.4 and v2.2 analysis and control
• EDID data analysis and emulation, including SCDC
• HDR bypass and analysis support
• HDMI Timing Generation – Up to 4096×2160 @60Hz (4:4:4), 8-bit
• OLED Display and detailed OSD

Specifications

• Max Resolution: 4K UHD @60Hz (4:4:4, 8 bit)
• Supported Output Resolutions: Up to 4K(4096 2160p)@24/25/30/50/60
• Standards Compliance: HDMI 2.0 and HDCP 1.4, 2.2
• Audio (Embedded) Output Support: LPCM 2.0, 5.1, and 7.1
• Power: Source 5V, 2.1A USB Power
• Power Consumption: 4.7W
• Operating Temperature: 32 to 104 F
• Storage Temperature: 40 to 158 F
• Humidity: 20% to 90%, RH non-condensing
• Regulatory Safety: CE, FCC
• Regulatory Environmental: RoHs, WEEE
• ESD Protection: Human body model 12kV (Air Discharge), 8kV (Contact Discharge)
• Enclosure Type: Metal
• Cooling: Convection Ventilation

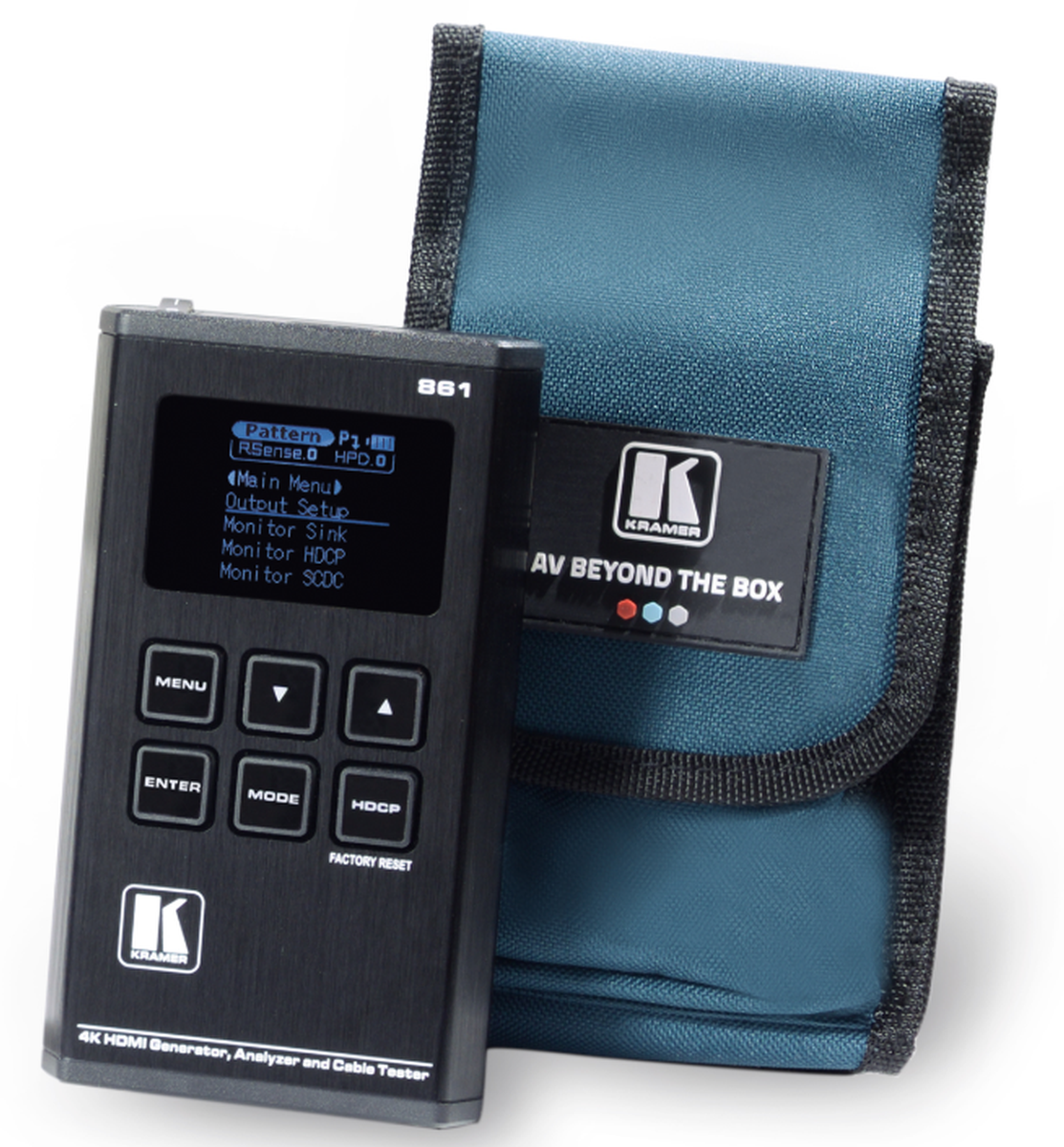

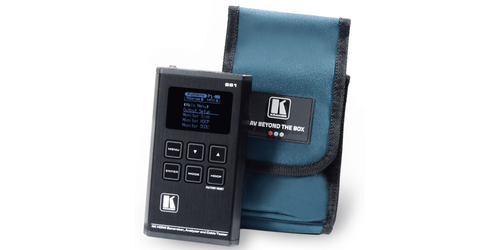

• Included Accessories: Micro B USB cable / 1 C HM/HM/PICO/BK 3 cable / 1 lithium ion 3.6V/3200maH rechargeable battery / Belt pouch
• Product Dimension: W x H x D: 3.15" x 5.51" x 1.06"
• Product Weight: 0.6lbs approx.
• Shipping Dimension: W x D x H: 9.76" x 7.40" x 2.13"
• Shipping Weight: 1.4lbs approx.

Downloads

• Kramer 861 Datasheet (PDF)
• Kramer 861 User Manual (PDF)
• Kramer 861 Quick Start Guide (PDF)
