Kramer AV AD-RING-5
HDMI to Multi-Format Adapter Ring Kit - 4 Adapters

Description

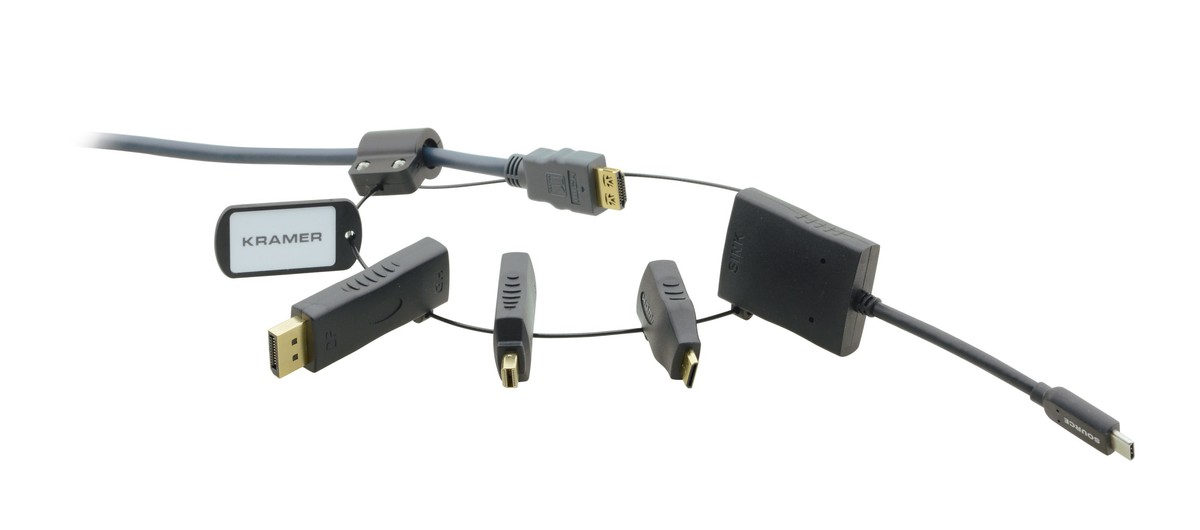

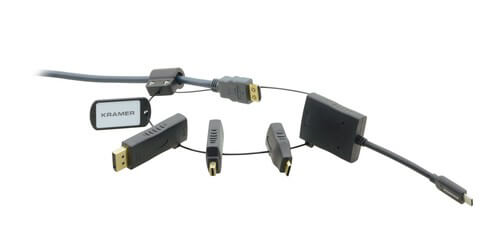

The Kramer AD-RING-5 is a stainless steel ring of HDMI adapters that attaches to your display cable so you can plug different presentation sources into the HDMI cable. Laptops, tablets, smart phones, digital cameras, and net books have a variety of connectors for displaying their content. AD-RING provides the presenter easy access to the appropriate adapter for connection to the HDMI infrastructure. This simple and effective solution supports mobile device content and keeps the adapters secure and in place for the next presenter. The clamps included with this ring will fit HDMI cables from 3mm to 9mm in diameter.

The AD-RING-5 Kit Includes the following Adapters:

• Mini DisplayPort (M) to HDMI (F) adapter cable
• USB Type–C (M) to HDMI (F) adapter cable
• DisplayPort (M) to HDMI (F) adapter
• Mini HDMI type–C (M) to HDMI (F) adapter

Specifications

• Included Accessories: 1 ABS cable clamp, 2 sets of foam rubber inserts, 4 sets of Torx T10 screws and nuts
• Warranty: 7 Years

• Construction:
• Security Cable Material: Steel with black polyethylene sheath
• Security Cable Length: 450 mm (17.72 in)
• Cable Clamp Dimensions (closed): 17mm x 24mm x 26.5mm (0.67in x 0.94in x 1.04in)
• Cable Clamp Inner Diameter: 9mm (0.35in)
• Cable Clamp Material: Black ABS plastic
• Medium Size Insert Diameter: 6mm (0.24in)
• Small Insert Diameter: 4mm (0.16in)
• Insert Material: Foam rubber

Downloads

• Kramer AV AD-RING-5 Specifications (PDF)
• Kramer AD-RING-5 Mechanical Info (PDF)
