Kramer AV KIT-400
4K Auto Switcher/Scaler Kit over Long Reach HDBaseT

Description

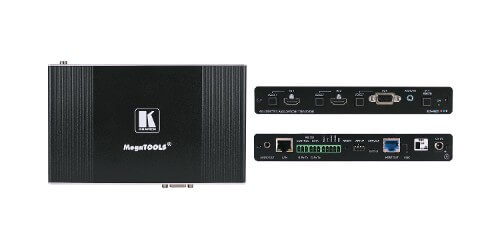

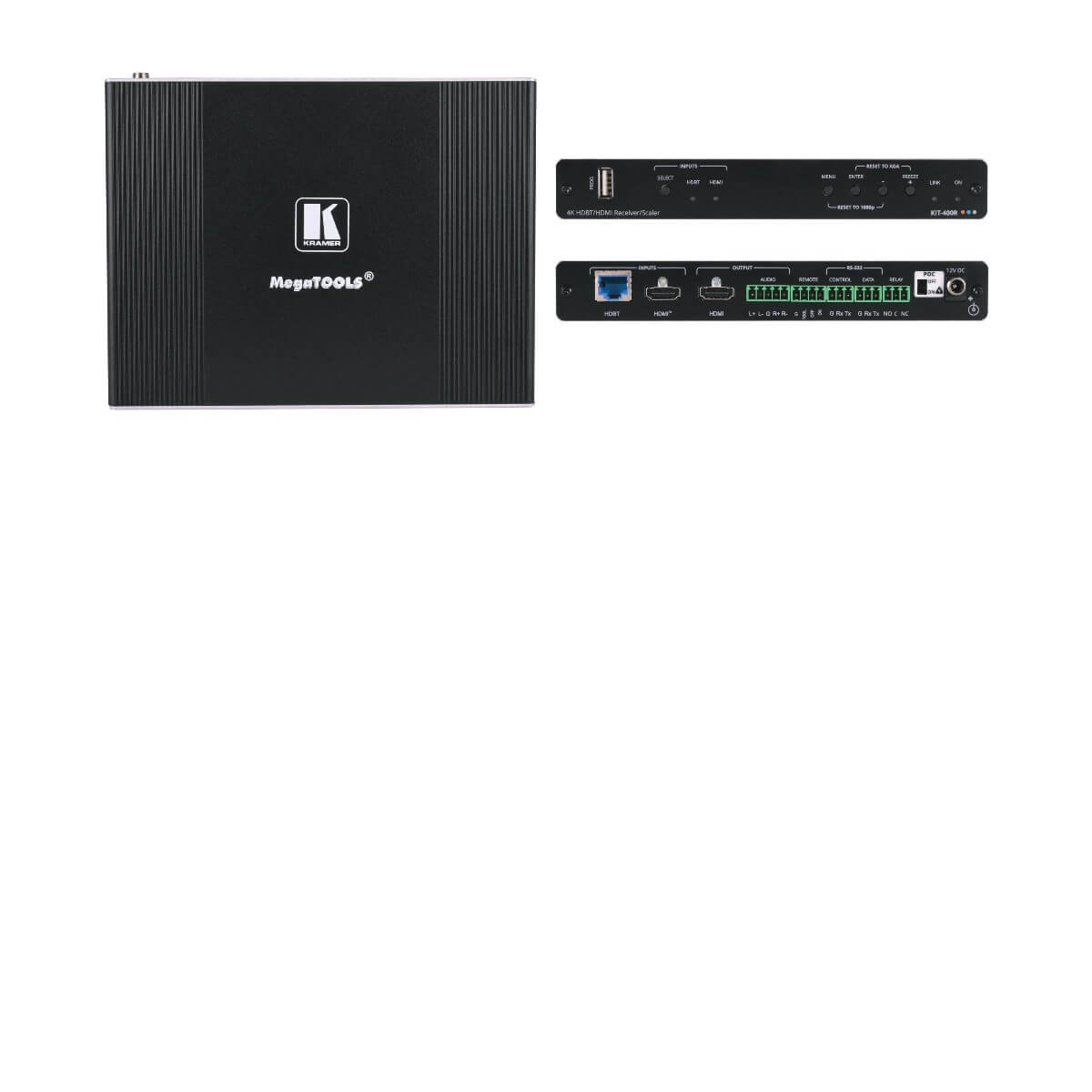

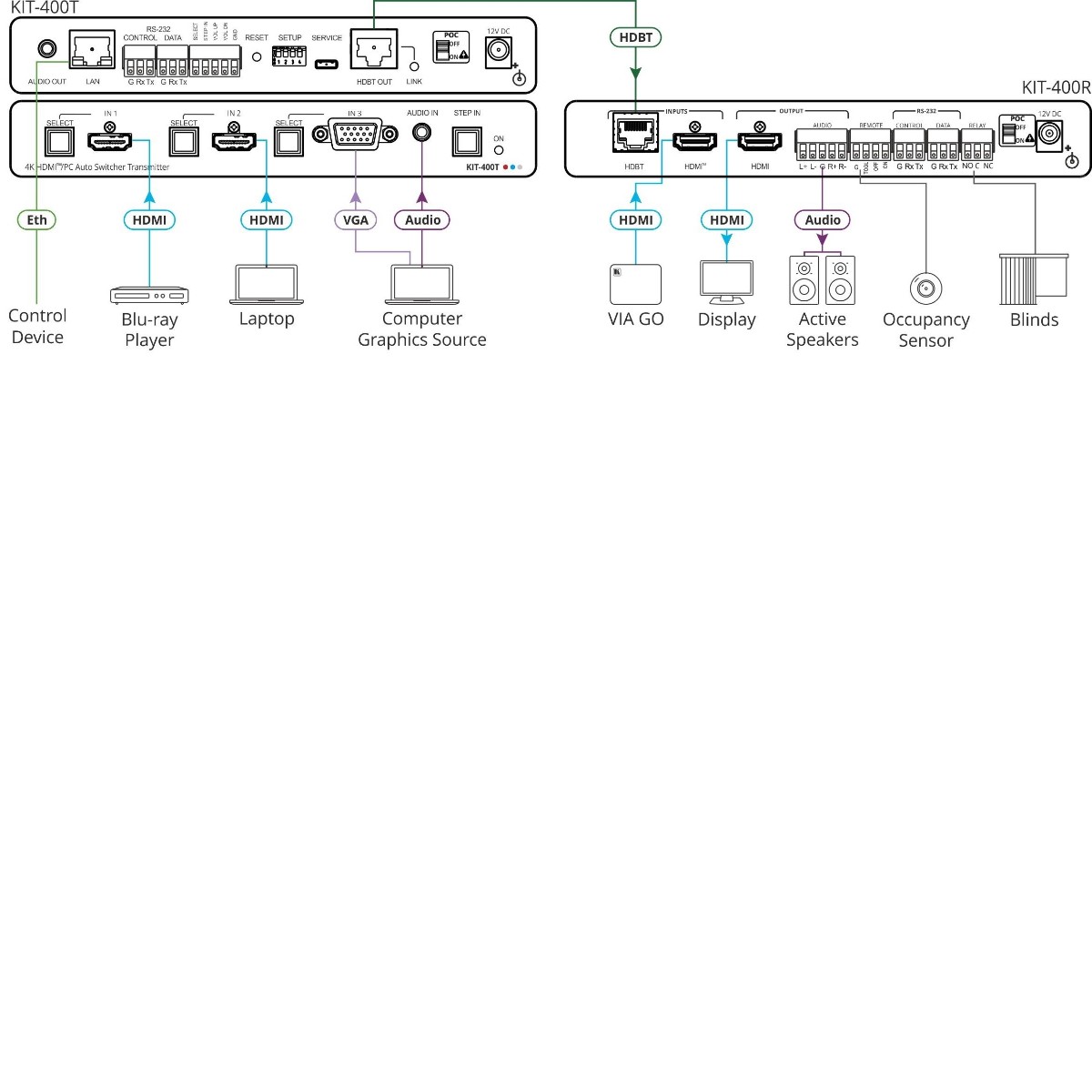

The Kramer Electronics KIT−400 is a high−performance auto−switcher/scaler kit for 4K HDMI™ and VGA over long−reach HDBaseT. The kit includes the KIT−400T transmitter/switcher and the KIT−400R receiver/scaler. The KIT−400T transmitter converts the user−selected input signal into the transmitted HDBaseT signal. The KIT−400R receiver receives the HDBaseT signal, converts it to HDMI and up− or down−scales the picture to match the resolution of the HDMI monitor. KIT−400 extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Applications of Use:

• Classrooms and lecture halls
• Meeting rooms
• Training facilities
• Collaborative classrooms
• Any space where BYOD support is required

Specifications

• Transmitter Inputs: 2 HDMI, 1 VGA
• Transmitter Outputs: HDBaseT
• Receiver Inputs: HDBaseT
• Receiver Outputs: HDMI, Unbalanced Audio: On a 3.5mm mini jack
• Ports: Ethernet: On an RJ 45 connector, Control RS 232: On a 3 pin terminal block connector, Data RS 232: On a 3 pin terminal block connector, Remote Contact Closure: On a 4 pin terminal block connector

Downloads

• Kramer AV KIT-400 Specifications (PDF)
• Kramer AV KIT-400 Manual (PDF)
• Kramer AV KIT-400 Manual (PDF)
