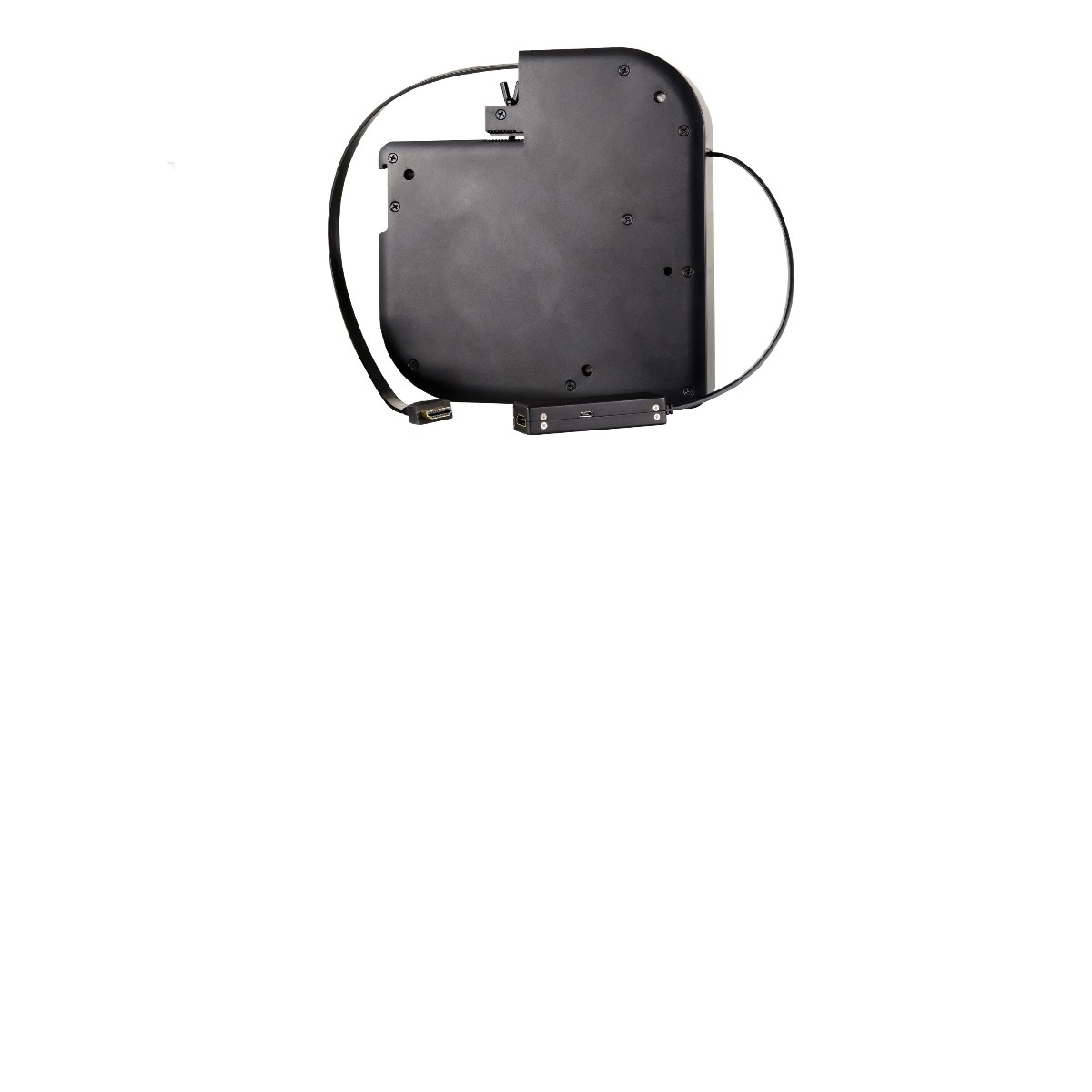

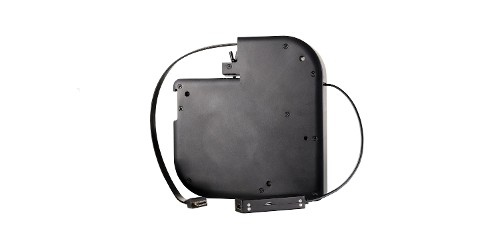

Kramer AV KRT-4-3H2
High Speed HDMI 4K Cable Retractor with PT 3H2 Signal Extender

Description

The Kramer AV KRT-4-3H2 is a HDMI cable retractor designed for installing in a meeting room, classroom or other AV site. KRT−4 extends a variety of common AV connector types and is easy to install and use.

Features:

• Provides Convenient and Easy–to–Use Connecting — Pull the cable to extend up to 1.8m (5.9ft) from the installation site; the cable automatically locks in position to the desired length. When finished, pull the cable again and it retracts into the housing.
• Improved Design — Gentle retraction feature extends the life of the cable and connector.
• Simple and Flexible Installation Options — Install in compatible Kramer TBUS models or attach directly to the underside of a table with a few screws.
• Available in Most Common AV Connector Types — HDMI, VGA, audio (3.5mm), LAN, USB, USB–C, and DisplayPort.

Specifications

• End of Life - Limited Stock - Non Returnable
• Ports: HDMI Female and HDMI Male
• Optional External Power Source 5V, 150mA micro USB port
• Maximum Range for 4K@60Hz (4:4:4) Resolution 10m from extender to display
• Maximum Range for 4K@60Hz (4:2:0) / 4K@30 15m from extender to display
• Maximum Range for 1080p@60Hz 15m from extender to display
• Maximum Resolution 4K@60Hz (4:4:4)
• Content Protection Up to HDCP 2.2
• Max Resolution: 4K@60Hz (4:4:4)
• Type: Plastic (ABS PC)
• Color: Black
• Fixed Cable Length: 20cm (7.9")
• Retractable Cable Length: 180cm (71")
• Included: 4 M3x8 screws, WCP (KRT) insert kit

Downloads

• Kramer AV KRT-4-3H2 Specifications (PDF)
• Kramer AV KRT-4 Quick Start Guide (PDF)
