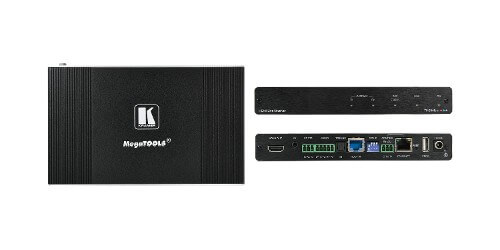

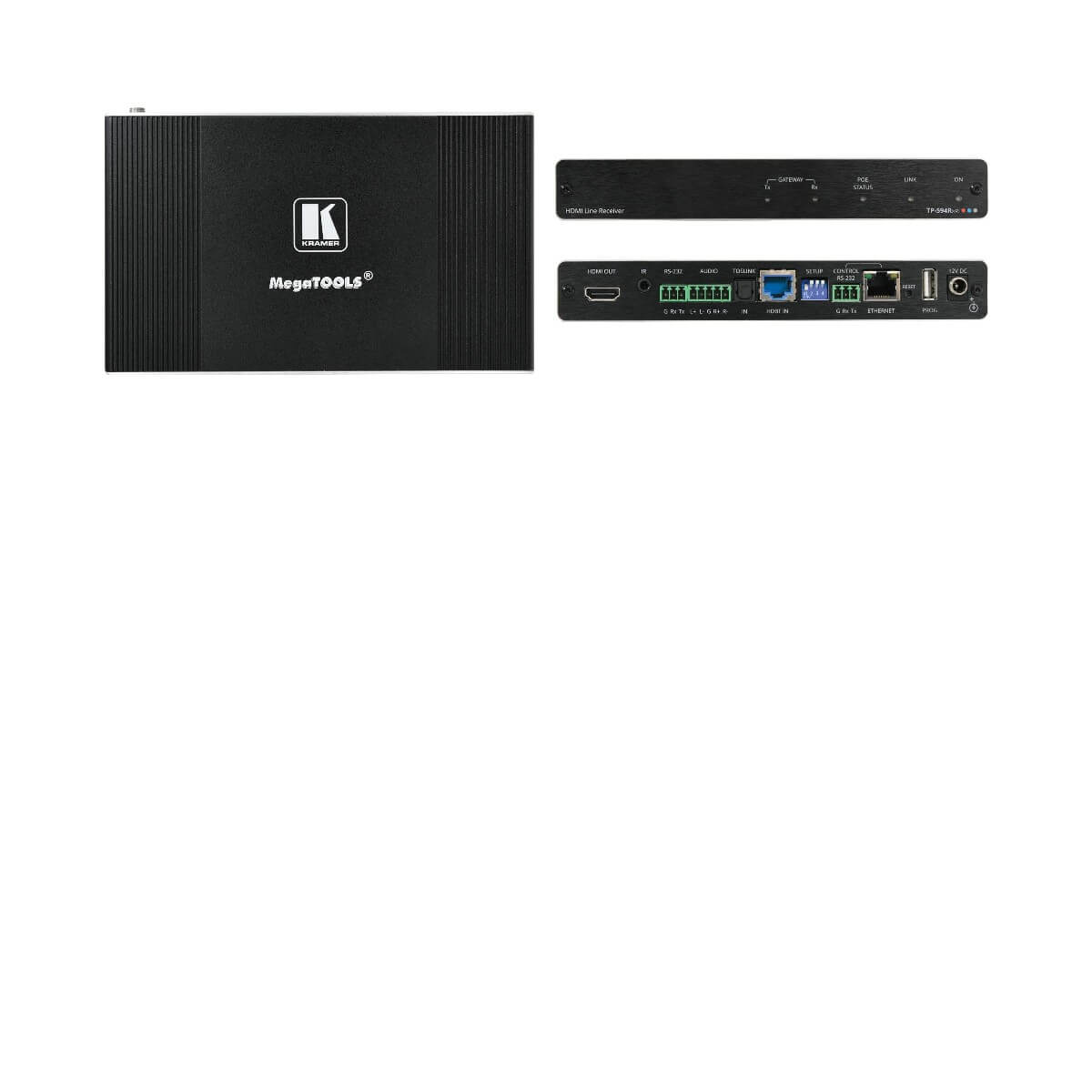

Kramer AV TP-594Rxr
4K HDMI Receiver with Ethernet, RS 232, IR, ARC & Stereo Audio

Description

The Kramer AV TP−594Rxr is a high−performance, extended−reach HDBaseT 2.0 receiver for 4K@60Hz (4:4:4) HDR, HDMI™, Ethernet, RS−232, IR, ARC (Audio Return Channel) and stereo audio signals over twisted pair. TP−594Rxr receives extended HDBaseT 2.0 signals and converts them back to HDMI, Ethernet, RS−232, IR, ARC and stereo audio signals. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) 24bpp video resolution and provides even further reach for lower HD video resolutions

Specifications

• Compatible with standard HDBaseT 2.0 systems
• ARC, Ethernet & control signal extension
• PoE acceptor
• Balanced Stereo Audio: On a 5 pin terminal block connector
• Ethernet: On an RJ 45 female connector for device control and LAN extension
• RS-232: On a 3 pin terminal block for serial link extension
• IR : On a 3.5mm mini jack for IR extension
• Control RS-232: On a 3 pin terminal block for device control
• USB: On a female USB A connector for device firmware upgrade
• Compression: Low level standard DSC compression for signals above 4K@60 (4:2:0)
• 4K@60 (4:4:4) Range with Compression: Up to 100m (330ft)
• 4K@60 (4:2:0) Range with No Compression: Up to 100m (330ft)
• Full HD (1080p@60Hz) Range with No Compression: Up to 130m (430ft),
• Full HD (1080p@60Hz) Range in Ultra Long Mode: Up to 180m (590ft)
• Compliance: HDBaseT 2.0
• Note: Use Kramer shielded cables to achieve optimum extension ranges
• Warranty: 7 Years
